Complete Dispensing Systems
PVA dispensing valves, syringes, and controllers can improve your handheld adhesive and coating process by providing a cleaner, consistent, and efficient alternative. A variety of options are available to customize every solution. PVA offers compact packages for dispensing adhesives, solder pastes, masking materials, cyanoacrylates, conformal coatings, and more. From syringe dispensers to multiple station pumping systems, PVA's turnkey integration will ensure a successful process is implemented every time.
 |
|
Complete Dispense systems contain all necessary regulators, gauges, hoses, fittings, etc.
 Documents require the free Adobe Acrobat Reader for viewing and printing.Click the icon at the left to download the reader from Adobe's website. |
|
| To view a document: Click on the desired product link. | To download a document: Right-click on the desired product link and select "Save Target As..." from the pop-up menu. |
Diaphragm Dispense Valve Systems |
|
| CAM100-1LB-1 | System includes: (1) CAM100, (1) PVA-1LBCA, (1) ST100, etc. |
| CAM100-1G-1 | System includes: (1) CAM100, (1) PVA1G, (1) ST100, etc. |
| CAM100-1LT-1-FS | System includes: (1) CAM100, (1) PVA-1LTUV, (1) ST-100, (1) CAM1-FS, etc. |
| CAM200-060-1-S | System includes: (1) CAM200, (1) PVA-102-060, (1) PV105-C, etc. |
| CAM200-1LB-1 | System includes: (1) CAM200, (1) PVA-1LBCA, etc. |
| CAM200-1LB-2 | System includes: (2) CAM200, (1) PVA-1LBCA, etc. |
| CAM200-1G-1 | System includes: (1) CAM200, (1) PVA1G, etc. |
| CAM200-1LT-2 | System includes: (2) CAM200, (1) PVA-1LTUV, etc. |
| CAM200-1G-2 | System includes: (2) CAM200, (1) PVA1G, etc. |
| CA100-1LB-1 | System includes: (1) CA100, (1) PVA-1LBCA, (1) ST100, etc. |
| CA100-1LB-1-S | System includes: (1) CA100, (1) PVA-1LBCA, (1) ST100, (1) PV105-V, etc. |
| CA200-1LT-1-S | System includes: (1) CA200, (1) PVA-1LTUV, (1) ST100, (1) PV105-V, etc. |
| FC100-1G-H | System includes: (1) 1 gallon tank, (1) FC100 on trigger |
Needle Valve Dispensing Systems |
|
| FC100-1LT-1 | System includes: (1) FC100, (1) PVA-1LTUV, (1) ST100, etc. |
| FC100-1LT-2 | System includes: (2) FC100, (1) PVA-1LTUV, (2) ST100, etc. |
| FC100-1LT-H | System includes: (1) FC100, (1) PVA-1LTUV, (1) PV101, etc. |
| FC100-1LT-1-S | System includes: (1) FC100, (1) PVA-1LTUV, (1) ST100, (1) PV105-V, etc. |
| FC100-1G-1 | System includes: (1) FC100, (1) PVA1G, (1) ST100, etc. |
| FC100-1G-H | System includes: (1) FC100, (1) PVA1G, (1) PV101, etc. |
| FC100-1G-1-H | System includes: (1) FC100, (1) PVA1G, (1) ST100, (1) PV101-E, etc. |
| FC100-1G-1-FS | System includes: (1) FC100, (1) PVA1G, (1) ST100, (1) FC1-FS, etc. |
| FC100-1G-2H | System includes: (2) FC100, (1) PVA1G, (2) PV101, etc. |
| FC300-1G-1-S | System includes: (1) FC300, (1) PVA1G, (1) ST100, (1) PV105-V, etc. |
Spray Valve Systems |
|
| FCS100-F-1LT-1 | System includes: (1) FCS100-F, (1) 0-15psi Air Regulator, (1) PVA-1LTUV, (1) ST100, etc. |
| FCS100-F-1LT-1-S | System includes: (1) FCS100-F, (1) 0-15psi Air Regulator, (1) PVA-1LTUV, (1) ST100, (1) PV105-V, etc. |
| FCS100-F-1G-1-S | System includes: (1) FCS100-F, (1) 0-15psi Air Regulator, (1) PVA1G, (1) ST100, (1) PV105-V, etc. |
| FCS100-F-1G-H | System includes: (1) FCS100-F, (1) 0-15psi Air Regulator, (1) PVA1G, (1) PV101, etc. |
| FCS100-F-1G-1-FS | System includes: (1) FCS100-F, (1) 0-15psi Air Regulator, (1) PVA1G, (1) ST100, (1) FC1-FS, etc. |
| FCS100-F-SYR-H | System includes: (1) FCS100-F, (1) 0-15psi Air Regulator, (1) PVA-30CCUSA, (1) PV101, etc. |
| FCS100-F-10G-H | System includes: (1) FCS100-F, (1) 0-15psi Air Regulator, (1) PVA10G, (1) PV101, etc. |
| FCS100-F-2G-2H | System includes: (2) FCS100-F, (2) 0-15psi Air Regulator, (1) PVA2G, (2) PV101, etc. |
Metering Valve Systems |
|
| MV100-SYR-1-S | System includes: (1) MV100, (1) PVA-30CCUSA, (1) ST100, (1) PV105-V, etc. |
| MV200-SYR-1-S | System includes: (1) MV200, (1) PVA-30CCUSA, (1) ST100, (1) PV105-V, etc. |
| MV200-SYR-H | System includes: (1) MV200, (1) PVA-30CCUSA, (1) PV101, etc. |
| MV200-1LT-1-S | System includes: (1) MV200, (1) PVA-1LTUV, (1) ST100, (1) PV105-V, etc. |
| MV300-1G-H | System includes: (1) MV300, (1) PVA-1G, (1) PV101, etc. |
Starter Kits for Low Volume Conformal Coating |
|
| MCCS-SYS-1 | System includes: (1) FCS100-F, (1) 0-15psi Air Regulator, (1) FC100, (1) PVA1G, (2) PV101, etc. |
| MCCS-SYS-2 | System includes: (1) FCS100-F, (1) 0-15psi Air Regulator, (1) PV101, (1) PVA1G, (1) FC100, (1) PV101, (1) PVA-102-120, (1) Stand, etc. |
Syringe Dispensers |
|
| ST90 | Timed Dispenser 0-30 second timer Includes: 30cc air Adapter, Syringe w/ Plunger, Needle Samples, PV107-S Stand, Foot Pedal, and Cord. |
| ST100-S | Digitial Syringe Dispenser (with 0-100psi regulator and gauge, LED Display) Includes: Comsumable package of: (Air Adpaters, Syringes, and Needles) Foot Pedal, and Cord. |
| ST100-S-15 | Digitial Syringe Dispenser (with 1-15psi regulator and
gauge, LED Display) Includes: Comsumable package of: (Air Adpaters, Syringes, and Needles) Foot Pedal, and Cord. |
Valve Controller |
|
| ST100 | Digital Valve Controller Includes: Foot Pedal, Cord, Needle Samples, and Air Tubing |
Solder Paste Dispensing Systems |
|

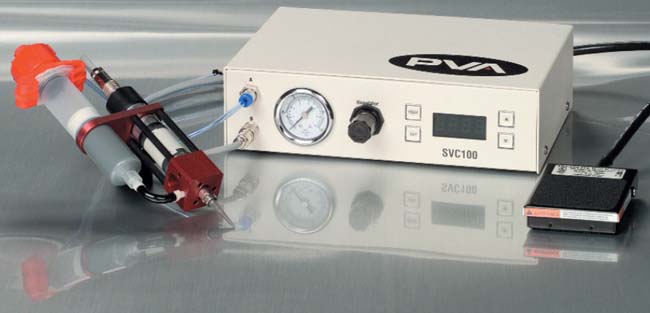

| SV100 | Servo Valve Valve needs to specify: Auger and Syringe Size. Includes: 5-V507, 2-V004, 3-V511 |
| SVC100 | SV100 Controller Includes: Foot Pedal, Cord, Servo Cable, needle samples |
Valve Handle Assemblies |
|
| PV101 | Pneumatic Trigger Handle Assembly |
| PV101E | Electric Trigger Handle Assembly |
| PV101D | Dummy Handle Assembly (No trigger) |
| FC1-FS | Electric Finger Switch, Mount to FC- Valves |
| CAM-FS | Electric Finger Switch, Mount to CAM100 |
| PV104-E | Electric Grip Handle Assembly |
Stands, Valve/Syringe/Cartridge |
|
| PV105-V | Adjustable Valve Stand |
| PV105-S | Adjustable Syringe Stand |
| PV105-C | Cartridge Stand |
| PV107-S | Syringe Holder, Metal Syringe Stand |
| Unknown | Stand to hold valve trigger handle in solvent |
| Unknown | Stand to hold CAM valve tips in solvent |
Miscellaneous |
|
| B62-0752 | 10cc Manual Syringe of Mineral Oil for Libricating Valve Packing |
Standard Valves |
|
| FC100 | Stainless Steel - Front Closing High Pressure Valve |
| FC200 | Stainless Steel - Front Closing High Pressure Valve |
| FC300 | Stainless Steel - Front Closing High Pressure Valve |
| FC300-C | Front Closing High Pressure Valve w/ Carbide Needle, Seat, and Custom Packing |
| CA100 | Cyanoacrylate(CA)-Diaphragm valve-air actuated valve |
| CA200 | Cyanoacrylate(CA)-Diaphragm valve, Dual Acting Valve w/ Plunger and Spring |
| CAM100 | CA valve-Handheld Diaphragm valve - air actuated |
| CAM200 | CA valve-Handheld Diaphragm valve - manual lever actuation |
| FCS100-F | Spray Valve - Fan Spray Pattern Cap |
| FCS100-R | Spray Valve - Round Spray Pattern Cap |
| FCS100-ES | Spray Valve - Extended Spray Cap |
| FCS200-ES | Spray Valve, New Design of the FCS100-ES |
| MV100 | Positive Displacement Valve (0.0002-0.0022 cc) |
| MV200 | Positive Displacement Valve (0.0015-0.012 cc) |
| MV300 | Positive Displacement Valve (0.010-0.145 cc) |
| MV300B | Positive Displacement Valve - Uses the FC200 style body |
| MV400 | Positive Displacement Valve (0.15-4.5 cc) |
| SV100 | Servo Driven Auger Valve |
| PC100 | Plural Component Valve |
| PC300 | Plural Component Valve - High Flow |
| PCD300 | Plural Component Dynamic Mixing Vlave - High Flow |
| PVA-TAH | Plural Component Valve - Snuff Back |
| PT100 | Pinch Tube Valve, with plastic luer adapter |
| PT100-SS | Pinch Tube Valve, with stainless steel luer adapter |
Specialty Valves |
|
| FC100-MC | Stainless Steel - Front Closing High Pressure Valve, Micrometer Adjustment |
| FCS100-ES-ND | Spray Valve, Narrow Air Cap Design of the FCS100-ES |
| MV100-MC | Positive Displacement Valve (0.0002-0.0022 cc) |
| MV200-MC | Positive Displacement Valve (0.0015-0.012 cc) |
| CAM100S | CAM100 Valve with Stainless Steel Luer Adapter |
| CAM200S | CAM200 Valve with Stainless Steel Luer Adapter |
| FC100-C4-19G | 4 Tip Flow Coat Valve with 19 Gauge Tips |
| FC100-C4-22G | 4 Tip Flow Coat Valve with 22 Gauge Tips |
| FC100-C4-24G | 4 Tip Flow Coat Valve with 24 Gauge Tips |
| FC100-C4-25G | 4 Tip Flow Coat Valve with 25 Gauge Tips |
Spare Parts - Valves |
|
| FC1-SP | FC100 Spare Parts Kit |
| FC1-MC-SP | FC100-MC Spare Parts Kit |
| FC2-SP | FC200 Spare Parts Kit |
| FC3-SP | FC300 Spare Parts Kit |
| FC3-C-SP | FC300-C Spare Parts Kit |
| CA1-SP | CA100 Spare Parts Kit |
| CA2-SP | CA200 Spare Parts Kit |
| CAM1-SP | CAM100 Spare Parts Kit |
| CAM2-SP | CAM200 Spare Parts Kit |
| CAM1S-SP | CAM100S, CAM100S-18 Spare Parts Kit |
| CAM2S-SP | CAM200S, CAM200S-18 Spare Parts Kit |
| FCS1-SP | FCS100F, FCS100R Spare Parts Kit |
| FCS1-ES-SP | FCS100-ES Spare Parts Kit |
| FCS2-ES-SP | FCS200-ES Spare Parts Kit |
| FCS1-ES-ND-SP | FCS100-ES-ND Spare Parts Kit |
| MV1-SP | MV100 Spare Parts Kit |
| MV1-MC-SP | MV100-MC Spare Parts Kit |
| MV2-SP | MV200 Spare Parts Kit |
| MV2-MC-SP | MV200-MC Spare Parts Kit |
| MV3-SP | MV300 Spare Parts Kit |
| MV3B-SP | MV300B Spare Parts Kit |
| MV4-SP | MV400 Spare Parts Kit |
| SV1-SP | SV100 Spare Parts Kit |
| PC1-SP | PC100 Spare Part Kit |
| PC3-SP | PC300 Spare Parts Kit |
| PCD3-SP | PCD300 Spare Parts Kit |
| PT1-SP | PT100 Spare Parts Kit |
| PT1-SS-SP | PT100-SS Spare Parts Kit |
| FC1-C4-19G-SP | FC100-C4-19G Spare Parts Kit (FC1-SP) |
| FC1-C4-22G-SP | FC100-C4-22G Spare Parts Kit (FC1-SP) |
| FC1-C4-24G-SP | FC100-C4-24G Spare Parts Kit (FC1-SP |
| FC1-C4-25G-SP | FC100-C4-25G Spare Parts Kit (FC1-SP) |
