Heel and toe grounders

Shoe grounding straps provide dissipation of static charges for mobile personnel in such areas as wave soldering, kitting and QC. These reusable straps provide a continuous ground path between shoes and static-protected floors. A conductive rubber strap fits over the heel or toe and conductive nylon strap makes contact with the operator's body. Straps will no stick to shoes and feature a stretchy, adjustable band that guarantees a comfortable, secure fit for all day long. All models have build-in 1 Mohm resistor for added protection.

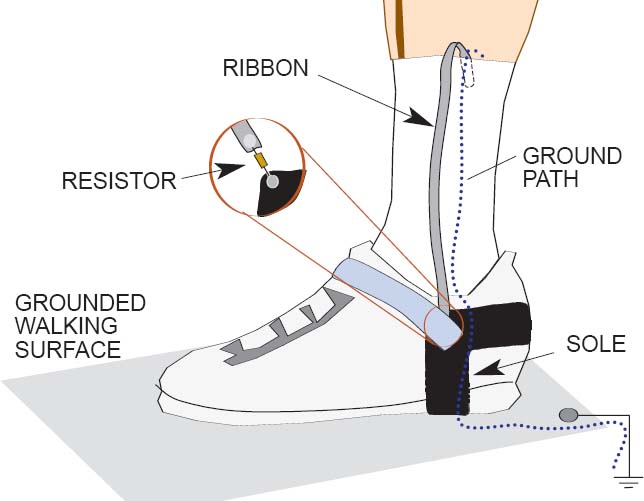

How Foot Grounders Work

Foot grounders discharge static from a person to ground by connecting the person to a grounded walking surface. A conductive ribbon placed inside the wearer’s shoe or sock makes electrical contact with the skin through perspiration. The ribbon is joined to a resistor which limits current should accidental exposure to electricity occur. The other end of the resistor is joined to a conductive sole. This sole contacts a grounded ESD floor mat or ESD flooring system. Foot grounders must be worn on both feet to maintain ground contact while walking.

Heel Grounder for designated work in Lead Free Areas. Three layers rubber for durability and bright, green strap.

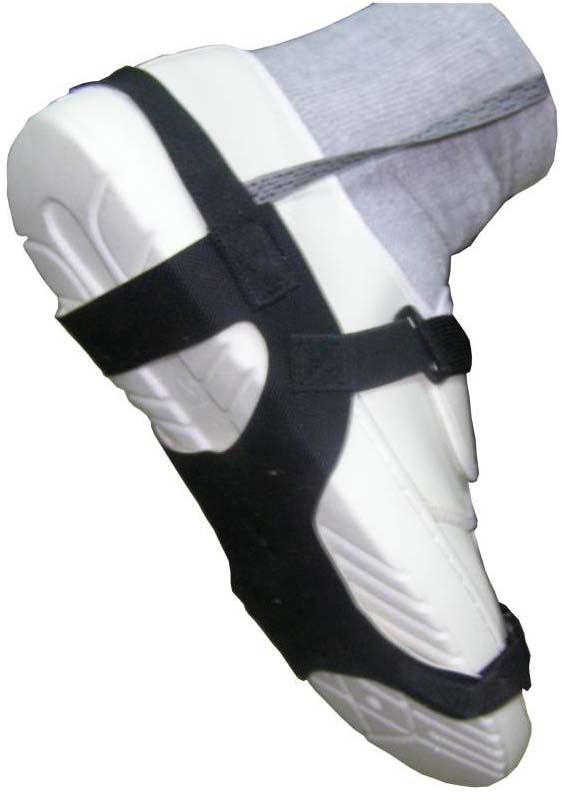

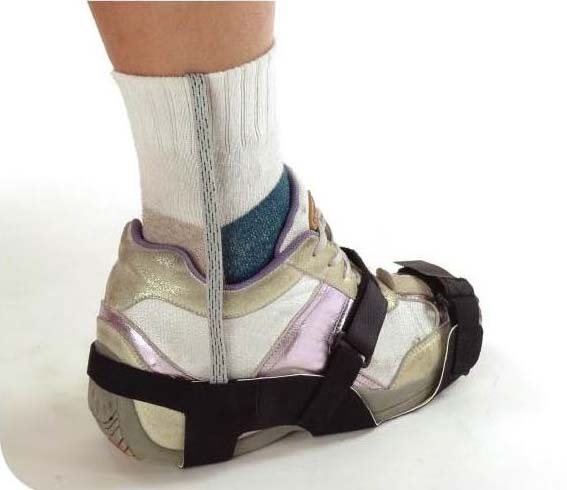

	ASG-1 Full Rubber Cup Toe & Heel Grounder with D Ring Conductive rubber with anti-slip texture. Hoop & Loop stretch Velcro with D-ring across both the toe and foot for size adjustment. Added 1 Mega ohm resistors. Rubber Strap: Outer surface: 103-4 Ω, Inter surface: 108-9 Ω Ribbon: 103-4 Ω
Perfectly good, but discontinued models due to supplier acquisition by larger company

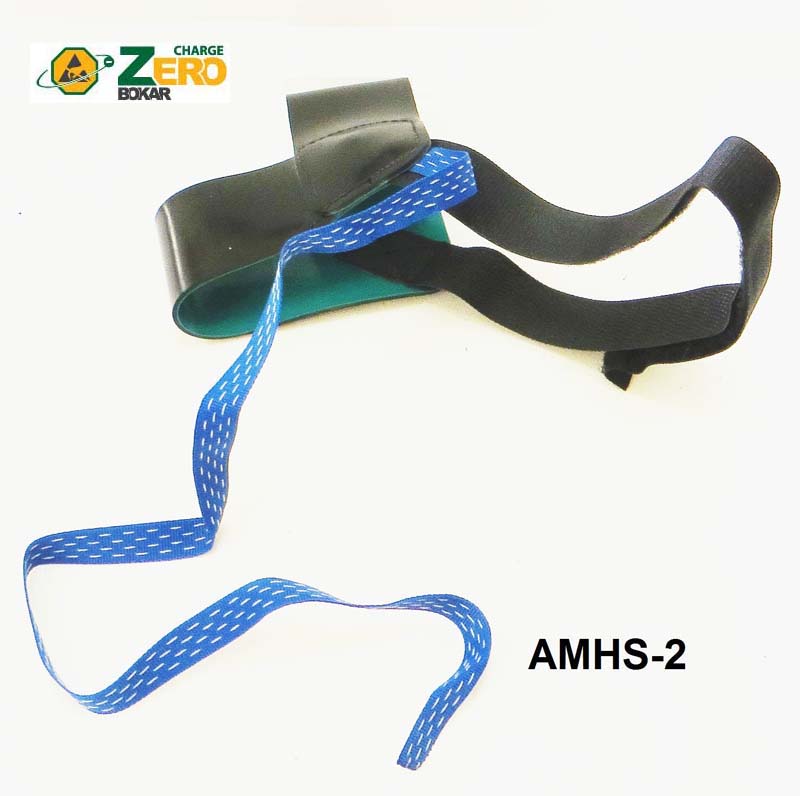

	Part #: AMHS-2 Dual layer heel strap. With 1 Meg. Resistor. Black outside, green inside. On sale until supply lasts.	Price: 2.99

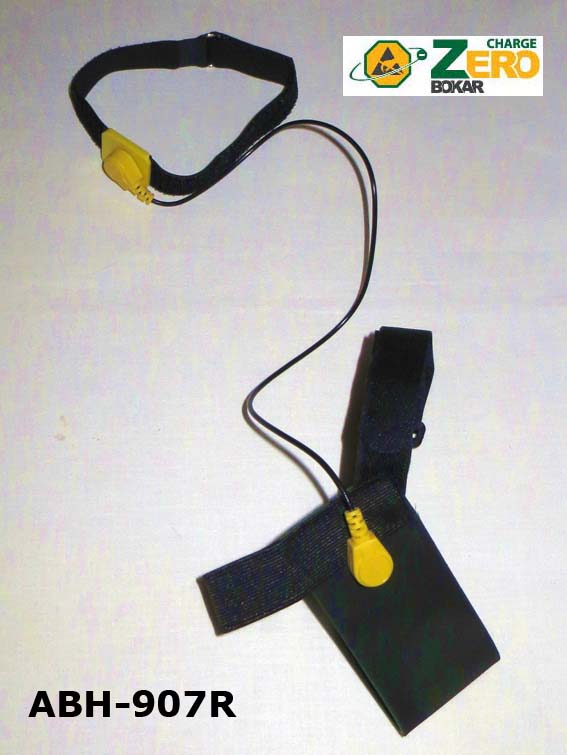

	Part #: ABH-907R super sale. Before last revision. Heel strap no-slip, black/green with velcro upper band and connecting wire with 1 Mohm resistor. Upper band assures contact with the body. No worry about loss of grounding. Connecting wire is long enough to place upper band under your knee. Sale until supply lasts	Price: 4.99



	Part Number	Description	Price USD
Heel and Toe Grounders
Buy	AHG-R	High quality No-Slip Heel Grounder with textured dual layer black/cream rubber. Red heel section and red velcro for good visibility. 1Meg Resistor. Designed for shoe sizes 12+ <...more info	Qty 1 - 49 50 - 99 100 + Price $5.49 $4.49 $3.99
Buy	AHG-LF1	Anti-slip, dual duty Heel Strap. Bright, neon-glow wide green velcro. Durable two layer cream/black sole and a multi-strand ribbon. Designed for double use (Both bottom and heel part are made from same anti-slip textured antistatic rubber. Recommended for shoe sizes up to US size 10 (Euro size 44).	Qty 1 - 49 50 - 99 100 + Price $4.49 $4.19 $3.99
Buy	ABH-LC-G	Heel Grounder, No Slip, dual layer rubber, 1Meg Resistor, Green. RTG < 10e6 -10e7. For use to distinguish Lead Free Areas. Designed for larger shoes (sizes US#10 and up). Europe: 42 and Up.	Qty 1 - 49 50 - 99 100 + Price $3.99 $3.89 $3.79
Buy	ABH-914R	Anti-slip, dual duty conventional Heel Strap. Black velcro. Durable two layer black/blue sole and a multi-strand ribbon. Recommended for shoe sizes up to US size 10 Designed for double use (Both bottom and heel part are made from same anti-slip textured antistatic rubber. Recommended for shoe sizes up to US size 10	Qty 1 - 49 50 - 99 100 + Price $4.19 $3.99 $3.79
Buy	ABH-916R	Anti-slip, dual duty conventional Heel Strap. Black velcro. Durable two layer black/cream sole and a multi-strand ribbon.	Qty 1 - 49 50 + Price $4.29 $3.99
Buy	ABH-LC	Low Cost-Quality Heel Grounder, No Slip, textured dual layer black/blue rubber. Red heel section and blue velcro for good visibility. 1Meg Resistor. Slightly larger to fit larger shoes	Qty 1 - 49 50 - 99 100 + Price $3.99 $3.89 $3.49
Buy	ABH-915R	Anti-slip, 2 layer rubber black/blue heel strap with 1 Mohm resistor for large (wide) shoe sizes	Qty 1 - 49 50 - 99 100 + Price $4.49 $4.19 $3.79

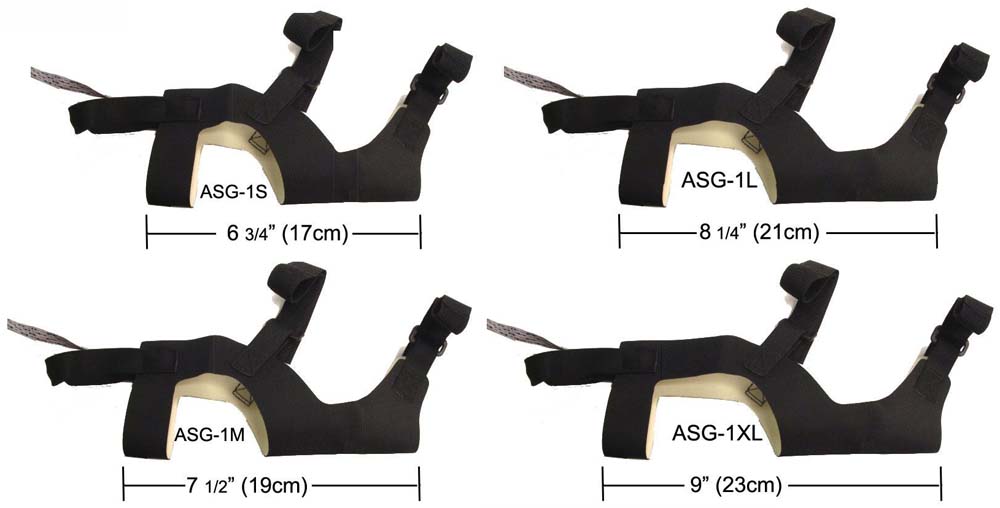

Buy	ASG-1 L	Full Rubber Cup Toe & Heel Grounder with D Ring. The best option to guarantee 100% contact with the ESD floor. People have different walking habits and when a person walks on his toes there will be no contact with the floor through conventional heel strap , Large	Qty 1 + Price $7.79
Buy	ASG-1 M	Full Rubber Cup Toe & Heel Grounder with D Ring. The best option to guarantee 100% contact with the ESD floor. People have different walking habits and when a person walks on his toes there will be no contact with the floor through conventional heel strap , Medium	Qty 1 + Price $7.59
Buy	ASG-1 S	Full Rubber Cup Toe & Heel Grounder with D Ring. The best option to guarantee 100% contact with the ESD floor. People have different walking habits and when a person walks on his toes there will be no contact with the floor through conventional heel strap , Small	Qty 1 + Price $7.39
Buy	ASG-1 XL	Full Rubber Cup Toe & Heel Grounder with D Ring. The best option to guarantee 100% contact with the ESD floor. People have different walking habits and when a person walks on his toes there will be no contact with the floor through conventional heel strap , Extra Large	Qty 1 + Price $7.99
Buy	ABH-906R	Super Reliable Heel strap with upper band to guarantee 100% contact with the user's body. Often used when heelstrap malfunction due to user carlesness is not permitted. Used when working with sensitive electronics and when working with explosives.	Qty 1 + Price $9.90
Buy	ADH-005 -10	Disposable Heel Strap , 10PCS/Pack	Qty 1 + Price $4.99
Buy	ADH-005 -100	Disposable Heel Strap , 100PCS/Pack	Qty 1 + Price $27.90
Buy	ASG-1000	The ESD Comfort Sole Grounder uses the highest quality materials that deliver performance and durability. Fitted with a rugged 1 Mohm resistor with 18” conductive ribbon.	Qty 1 + Price $49.90
Buy	ASI-3R	Toe Grounder for use where heel grounders are not practical. Adjustable for various shoe sizes. RTG < 10e6 -10e7. Bottom-2 layer, non marking rubber	Qty 1 + Price $6.99
Buy	ABT-111R	Toe strap (grounder) with 1 Mohm resistor	Qty 1 + Price $4.79
Buy	ASI-2R	Toe Grounder "heavy duty" for use where heel grounders are not practical. RTG < 10e6 -10e7. Bottom-2 layer, non marking rubber. Large size. For shoes US # 8 and up. (European 40 and up)	Qty 1 + Price $3.99
Buy	FG-7010	FOOTGROUNDER, D-ring, 1 meg, 2 layer cup	Qty 1 + Price $7.30
Buy	FG-7020	FOOTGROUNDER, elastic velcro fastening, 1 meg, 2 layer cup	Qty 1 + Price $6.25
Buy	FG-7031	FOOTGROUNDER, disposable, 16" long, 100pcs/box	Qty 1 + Price $55.00
Buy	FG-7040	FOOTGROUNDER, 3 layer,dual side non marking	Qty 1 + Price $7.99
Buy	ABH-907R	On super sale. Before last revision. Heel strap no-slip, black/green with velcro upper band and connecting wire with 1 Mohm resistor.	Qty 1 + Price $4.90
Buy	AMHS-2	D-Ring Dual layer heel strap. With 1 Meg. Resistor. Black outside, green inside. On sale until supply lasts.	Qty 1 + Price $2.99
