XURB Universal Re-balling Unit

XURB Universal Re-balling Unit

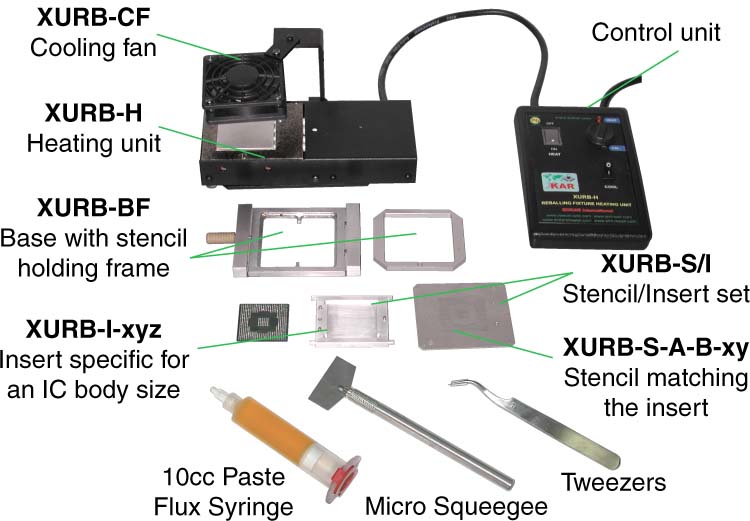

  Standard XURB-S System includes:
  • XURB-H Heating Unit with XURB-CF cooling fan
  • XURB-BF – Base with stencil holding frame. One universal frame holds the XURB-I insert specific for the IC body up to a size 40x40mm, and has one frame holding the stencil which is specific for balls pattern and size
  • XURB-I-xyz – Insert specific for an IC body size (width, lengths, thickness).
  • XURB-S-A-B-xy – Re-balling stencil matching the insert above where A is the number of balls, B - ball's pitch, and xy - IC body size.
  • Micro Squeegee
  • Tweezers
  • 10cc Paste Flux Syringe
  Description:

The XURB-S set has is an independent heating system, a Hot Plate XURB-H matching the re-balling fixture.

This heating method allows for reflow of re-balled IC in approximately 2 min., which is 2 to 3 times faster and better than on any other heating system.

Specifically designed for XURB, the XURB-H unit has temperature controller with closed loop feedback, which guarantees proper heating rate and maximum temperature limit preventing re-balled component damage.

It also includes cooling fan, like no other unit in the industry to speed-up re-balling time and make better quality solder balls.

  XURB-S Re-balling Stencil and XURB-I Insert
P/N Stencil/Insert set
Component Information		 P/N Stencil
Component pattern		 P/N Insert

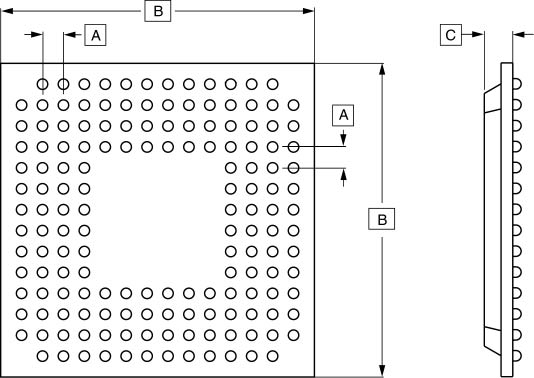

XURB-S/I-156-1-15-1.2

Component Information
BGA156;
I/O Count 156;
Pitch 1.0mm;
Body Size 15mm;
Plastic Height 1.2mm

 XURB-S-156-1-15
BGA156
A = 1.0 mm; B = 15 mm; C = 1.2 mm		 XURB-I-15-1.2

X = 15 mm; Y = 15 mm; Z = 1.2 mm
XURB-S/I-456-1-23-1.6

Component Information
BGA456;
I/O Count 456;
Pitch 1.0mm;
Body Size 23mm;
Plastic Height 1.6mm

 XURB-S-456-1-23
BGA456
A = 1.0 mm; B = 23 mm; C = 1.6 mm 		XURB-I-23-1.6

X = 23 mm; Y = 23 mm; Z = 1.6 mm

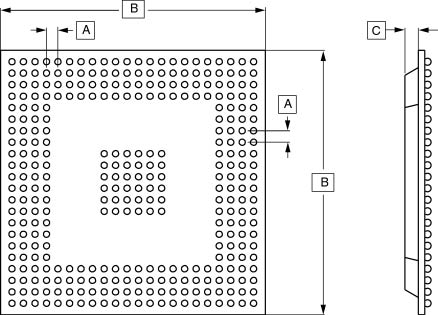

XURB-S/I-324-1.27-27-1.6

Component Information
BGA324;
I/O Count 324;
Pitch 1.27mm;
Body Size 27mm;
Plastic Height 1.6mm

 XURB-S-324-1.27-27
BGA324
A = 1.27 mm; B = 27 mm; C = 1.6 mm 		XURB-I-27-1.6

X = 27 mm; Y = 27 mm; Z = 1.6 mm

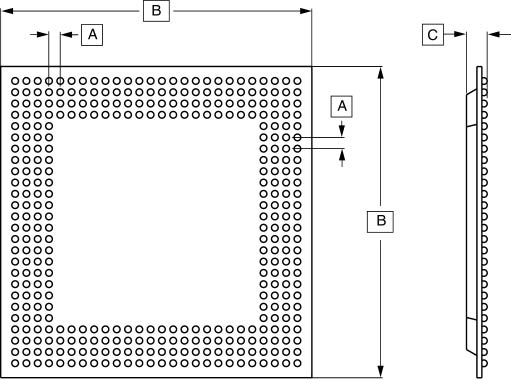

XURB-S/I-352-1.27-27-1.6

Component Information
BGA352;
I/O Count 352;
Pitch 1.27mm;
Body Size 27mm,
Plastic Height 1.6mm

 XURB-S-352-1.27-27
BGA352
A = 1.27 mm; B = 27 mm; C = 1.6 mm 		XURB-I-27-1.6

X = 27 mm; Y = 27 mm; Z = 1.6 mm

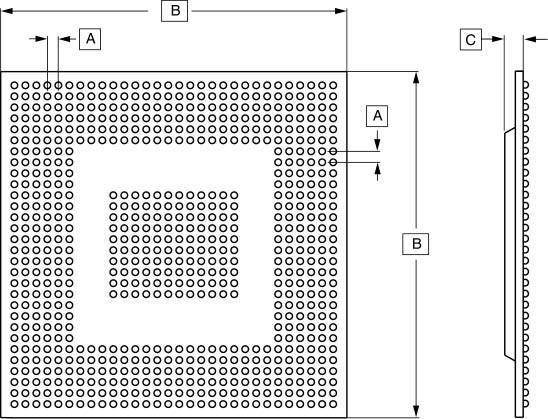

XURB-S/I-696-1-31-1.8

Component Information
BGA696;
I/O Count 696;
Pitch 1mm;
Body Size 31mm;
Plastic Height 1.8m

 XURB-S-696-1-31
BGA696
A = 1 mm; B = 31 mm; C = 1.8 mm 		XURB-I-31-1.8

X = 31 mm; Y = 31 mm; Z = 1.8 mm

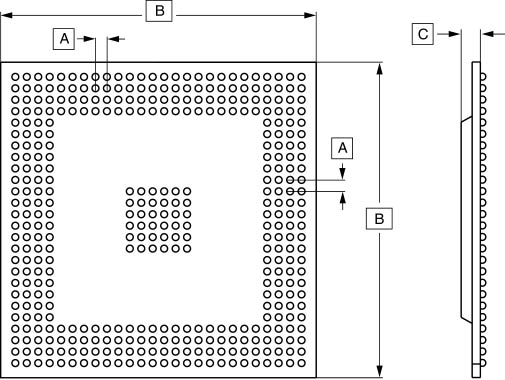

XURB-S/I-388-1.27-35-1.8

Component Information
BGA388;
I/O Count 388;
Pitch 1.27mm;
Body Size 35mm;
Plastic Height 1.8m

 XURB-S-388-1.27-35
BGA388
A = 1.27 mm; B = 35 mm; C = 1.8 mm 		XURB-I-35-1.8

X = 35 mm; Y = 35 mm; Z = 1.8 mm

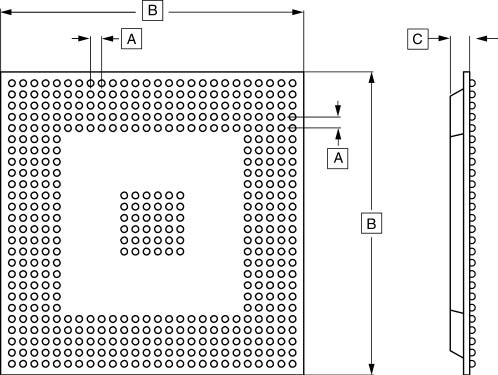

XURB-S/I-456-1.27-35-1.8

Component Information
BGA456;
I/O Count 456;
Pitch 1.27mm;
Body Size 35mm;
Plastic Height 1.8m

 XURB-S-456-1.27-35
BGA456
A = 1.27 mm; B = 35 mm; C = 1.8 mm 		XURB-I-35-1.8

X = 35 mm; Y = 35 mm; Z = 1.8 mm

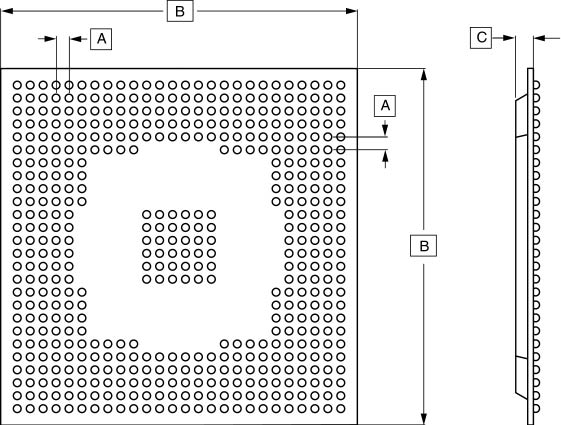

XURB-S/I-492-1.27-35-1.8

Component Information
BGA492;
I/O Count 492;
Pitch 1.27mm;
Body Size 35mm;
Plastic Height 1.8m

 XURB-S-492-1.27-35
BGA492
A = 1.27 mm; B = 35 mm; C = 1.8 mm 		XURB-I-35-1.8

X = 35 mm; Y = 35 mm; Z = 1.8 mm

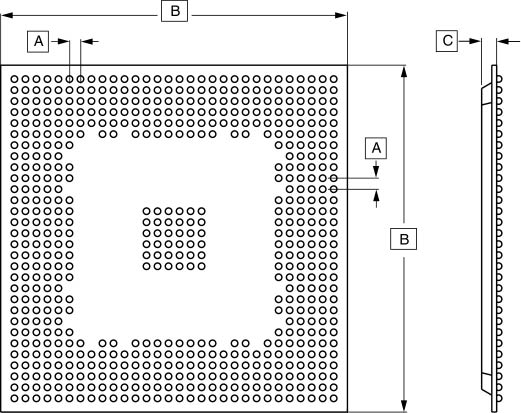

XURB-S/I-596-1.27-35-1.8

Component Information
BGA596;
I/O Count 596;
Pitch 1.27mm;
Body Size 35mm;
Plastic Height 1.8m

 XURB-S-596-1.27-35
BGA596
A = 1.27 mm; B = 35 mm; C = 1.8 mm 		XURB-I-35-1.8

X = 35 mm; Y = 35 mm; Z = 1.8 mm

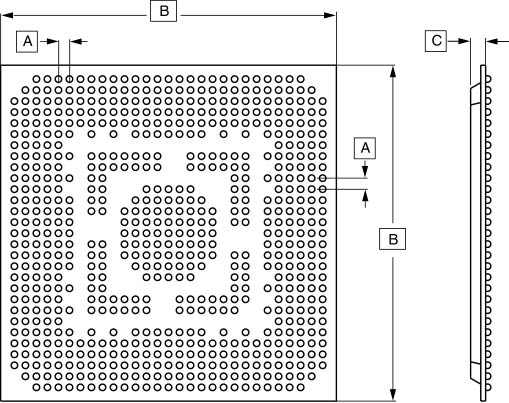

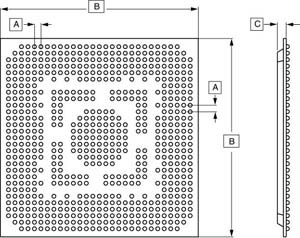

XURB-S/I-676-1.27-37.5-1.8

Component Information
BGA676;
I/O Count 676;
Pitch 1.27mm;
Body Size 37.5mm;
Plastic Height 1.8m

 XURB-S-676-1.27-37.5
BGA676
A = 1.27 mm; B = 37.5 mm; C = 1.8 mm 		XURB-I-37.-1.8

X = 37.5mm; Y = 37.5mm; Z = 1.8mm

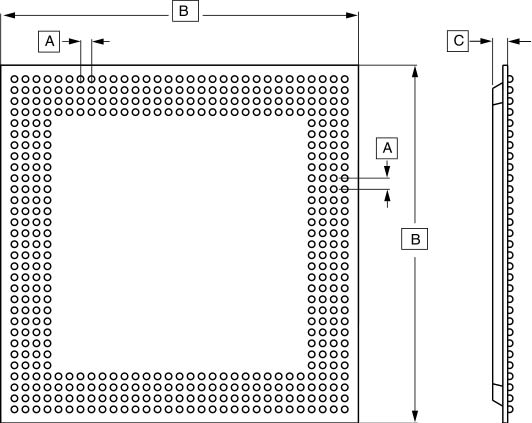

XURB-S/I-432-1.27-40-1.6

Component Information
BGA432;
I/O Count 432;
Pitch 1.27mm;
Body Size 40mm;
Plastic Height 1.6m

 XURB-S-432-1.27-40
BGA432
A = 1.27 mm; B = 40 mm; C = 1.6 mm 		XURB-I-40-1.6

X = 40 mm; Y = 40 mm; Z = 1.6 mm

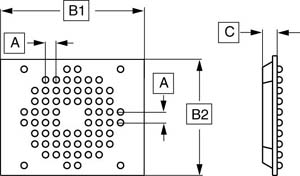

XURB-S/I-69-0.8-11x8-1

Component Information
BGA69;
I/O Count 69;
Pitch 0.8mm;
Body Size 11x8mm;
Plastic Height 1mm

 XURB-S-69-0.8-11x8

A = 0.8 mm; B1 = 11 mm;
B2 = 8 mm; C = 1.6 mm 		XURB-I-11x8-1
XURB-S/I-208-0.8-15-1.2

Component Information
BGA208;
I/O Count 208;
Pitch 0.8mm;
Body Size 15mm;
Plastic Height 1.2mm

 XURB-S-208-0.8-15

A = 0.8 mm; B = 15 mm; C = 1.2 mm 		XURB-I-15-1.2

X = 15 mm; Y = 15 mm; Z = 1.2 mm
  XURB-I – Insert specific for an IC body size.
P/N Stencil P/N match to Insert
XURB-I-15-1.2 XURB-S-156-1-15
XURB-I-23-1.6 XURB-S-456-1-23
XURB-I-27-1.6 XURB-S-324-1.27-27
XURB-S-352-1.27-27
XURB-I-31-1.8 XURB-S-696-1-31
XURB-I-35-1.8 XURB-S-388-1.27-35
XURB-S-456-1.27-35
XURB-S-492-1.27-35
XURB-S-596-1.27-35
XURB-I-37.5-1.8 XURB-S-676-1.27-37.5
XURB-I-40-1.6 XURB-S-432-1.27-40
Solder Balls
Part Number Description Qty in container
  Alloy Sn62/Pb36/Ag2
XSB-0.3-10 Ball Diameter 0.3mm, (0,012")  Small Containers 10 000 pcs
XSB-0.3-25 Ball Diameter 0.3mm, (0,012")  Small Containers 25 000 pcs
XSB-0.3-50 Ball Diameter 0.3mm, (0,012")  Small Containers 50 000 pcs
XSB-0.45-10 Ball Diameter 0.45mm,(0,018")  Small Containers 10 000 pcs
XSB-0.45-25 Ball Diameter 0.45mm,(0,018")  Small Containers 25 000 pcs
XSB-0.45-50 Ball Diameter 0.45mm,(0,018")  Small Containers 50 000 pcs
XSB-0.5-10 Ball Diameter 0.5mm,  (0.020")  Small Containers 10 000 pcs
XSB-0.5-25 Ball Diameter 0.5mm,  (0.020")  Small Containers 25 000 pcs
XSB-0.5-50 Ball Diameter 0.5mm,  (0.020")  Small Containers 50 000 pcs
XSB-0.63-10 Ball Diameter 0.63mm, (0,0252")  Small Containers 10 000 pcs
XSB-0.63-25 Ball Diameter 0.63mm, (0,0252")  Small Containers 25 000 pcs
XSB-0.63-50 Ball Diameter 0.63mm, (0,0252")  Small Containers 50 000 pcs
XSB-0.76-10 Ball Diameter 0.76mm, (0,0304")  Small Containers 10 000 pcs
XSB-0.76-25 BallDiameter 0.76mm, (0,0304")  Small Containers 25 000 pcs
XSB-0.76-50 Ball Diameter 0.76mm, (0,0304")  Small Containers 50 000 pcs
Lead Free Alloy Sn 96,5% - Ag-3% - Cu-0,5%
XSB-0.3LF-10 Ball Diameter 0.3mm, (0,012")  Small Containers 10 000 pcs
XSB-0.3LF-25 Ball Diameter 0.3mm, (0,012")  Small Containers 25 000 pcs
XSB-0.3LF-50 Ball Diameter 0.3mm, (0,012")  Small Containers 50 000 pcs
XSB-0.45LF-10 Ball Diameter 0.45mm,(0,018")  Small Containers 10 000 pcs
XSB-0.45LF-25 Ball Diameter 0.45mm,(0,018")  Small Containers 25 000 pcs
XSB-0.45LF-50 Ball Diameter 0.45mm,(0,018")  Small Containers 50 000 pcs
XSB-0.5LF-10 Ball Diameter 0.5mm,  (0.020")  Small Containers 10 000 pcs
XSB-0.5LF-25 Ball Diameter 0.5mm,  (0.020")  Small Containers 25 000 pcs
XSB-0.5LF-50 Ball Diameter 0.5mm,  (0.020")  Small Containers 50 000 pcs
How to use the Re-balling Set
  1. Before Beginning to reball you component you must first remove the old solder balls and solder residual. It is recommended that you use XS-StencilCleaner each time you perform the reballing process. this will extend the life of your stencil and improve the reballing process.
  2. Place the XURB Insert into the Reballing frame.
  1. Place the component to be reworked in the insert with the surface to be reballed face up.

  1. Use the Micro Squeegee to apply flux evenly to the IC body.
  1. Place the appropriate re-balling stencil over the IC ensuring that it aligns with the positioning pins on the insert.

  1. Place the stencil holding frame on the top of the stencil and tighten the knob.

  1. Distribute the balls across the stencil using tweezers or a brush if needed until each opening contains one ball.
  2. Excess balls should be poured carefully back into the container through a large opening in the top corner.
  3. To Reflow:
    There are several choices how the balls can be reflow:
    1. Use X-KAR XURB, Independent Re-balling Heating Unit, which offers the fastest, and the most efficient reflow
    2. Place the Base Unit with component, stencil, and the frame in the oven and start reflow cycle.
    3. Use any of X-KAR Pre-heater units to reflow the balls.
  4. Remove reballing set from the oven or cool down the X-KAR Preheater to allow the package to cool.
  5. Remove the frame, reballing stencil, and the component.
  6. Inspect the quality of reballing.
  |  Print page



Order Now Part Number Description Price
USD
Optional Equipment
XURB-BF Base with stencil holding frame
<...more info
Qty1 +
Price$279.00
XURB-H -115V Heating Unit with XURB-CF cooling fan , 110-120V AC
<...more info
Qty1 +
Price$649.00
XURB-H -230V Heating Unit with XURB-CF cooling fan , 220-240V AC
<...more info
Qty1 +
Price$799.00
Re-balling Systems
XURB-Set-S -115V XURB-Universal Reballing Unit with one standard XURB-S/I IC specific standard set , 110-120V AC
<...more info
Qty1 +
Price$899.00
XURB-Set-S -230V XURB-Universal Reballing Unit with one standard XURB-S/I IC specific standard set , 220-240V AC
<...more info
Qty1 +
Price$949.00
XURB-Set-C -115V XURB-Universal Reballing Unit with one custom XURB-S/I IC specific custom set , 110-120V AC
<...more info
Qty1 +
Price$949.00
XURB-Set-C -230V XURB-Universal Reballing Unit with one custom XURB-S/I IC specific custom set , 220-240V AC
<...more info
Qty1 +
Price$999.00
Stencil/Insert set
XURB-S/I-156-1-15-1.2 Stencil/Insert Set for component BGA156 (I/O Count 156; Pitch 1.0mm; Body Size 15mm, Plastic Height 1.2mm)
Qty1 +
Price$149.00
XURB-S/I-208-0.8-15-1.2 Stencil/Insert set for component BGA208 (I/O Count 208; Pitch 0.8mm; Body Size 15mm, Plastic Height 1.2mm)
Qty1 +
Price$149.00
XURB-S/I-324-1.27-27-1.6 Stencil/Insert Set for component BGA324 (I/O Count 324; Pitch 1.27mm; Body Size 27mm, Plastic Height 1.6mm)
Qty1 +
Price$149.00
XURB-S/I-352-1.27-27-1.6 Stencil/Insert Set for component BGA352 (I/O Count 352; Pitch 1.27mm; Body Size 27mm, Plastic Height 1.6mm)
Qty1 +
Price$149.00
XURB-S/I-388-1.27-35-1.8 Stencil/Insert Set for component BGA388 (I/O Count 388; Pitch 1.27mm; Body Size 35mm, Plastic Height 1.8m)
Qty1 +
Price$149.00
XURB-S/I-432-1.27-40-1.6 Stencil/Insert Set for component BGA432 (I/O Count 432; Pitch 1.27mm; Body Size 40mm, Plastic Height 1.6m)
Qty1 +
Price$149.00
XURB-S/I-456-1-23-1.6 Stencil/Insert Set for component BGA456 (I/O Count 456; Pitch 1.0mm; Body Size 23mm, Plastic Height 1.6mm)
Qty1 +
Price$149.00
XURB-S/I-456-1.27-35-1.8 Stencil/Insert Set for component BGA456 (I/O Count 456; Pitch 1.27mm; Body Size 35mm, Plastic Height 1.8m)
Qty1 +
Price$149.00
XURB-S/I-492-1.27-35-1.8 Stencil/Insert Set for component BGA492 (I/O Count 492; Pitch 1.27mm; Body Size 35mm, Plastic Height 1.8m)
Qty1 +
Price$149.00
XURB-S/I-596-1.27-35-1.8 Stencil/Insert Set for component BGA596 (I/O Count 596; Pitch 1.27mm; Body Size 35mm, Plastic Height 1.8m)
Qty1 +
Price$149.00
XURB-S/I-676-1.27-37.5-1.8 Stencil/Insert Set for component BGA676 (I/O Count 676; Pitch 1.27mm; Body Size 35mm, Plastic Height 1.8m)
Qty1 +
Price$149.00
XURB-S/I-69-0.8-11x8-1 Stencil/Insert set for component BGA69 (I/O Count 69; Pitch 0.8mm; Body Size 11x8mm, Plastic Height 1mm)
Qty1 +
Price$149.00
XURB-S/I-696-1-31-1.8 Stencil/Insert Set for component BGA696 (I/O Count 696; Pitch 1mm; Body Size 31mm, Plastic Height 1.8m)
Qty1 +
Price$149.00
XURB-S/I-Custom Custom Stencil/Insert set
Qty1 +
Price$179.00
Stencil
XURB-S-156-1-15 Stencil for component BGA156 (I/O Count 156; Pitch 1.0mm; Body Size 15mm)
<...more info
Qty1 +
Price$69.00
XURB-S-208-0.8-15 Stencil for component BGA208 (I/O Count 208; Pitch 0.8mm; Body Size 15mm)
<...more info
Qty1 +
Price$69.90
XURB-S-324-1.27-27 Stencil for component BGA324 (I/O Count 324; Pitch 1.27mm; Body Size 27mm)
<...more info
Qty1 +
Price$69.90
XURB-S-352-1.27-27 Stencil for component BGA352 (I/O Count 352; Pitch 1.27mm; Body Size 27mm)
<...more info
Qty1 +
Price$69.90
XURB-S-388-1.27-35 Stencil for component BGA388 (I/O Count 388; Pitch 1.27mm; Body Size 35mm)
<...more info
Qty1 +
Price$69.90
XURB-S-432-1.27-40 Stencil for component BGA432 (I/O Count 432; Pitch 1.27mm; Body Size 40mm)
<...more info
Qty1 +
Price$69.90
XURB-S-456-1-23 Stencil for component BGA456 (I/O Count 456; Pitch 1.0mm; Body Size 23mm)
<...more info
Qty1 +
Price$69.90
XURB-S-456-1.27-35 Stencil for component BGA456 (I/O Count 456; Pitch 1.27mm; Body Size 35mm)
<...more info
Qty1 +
Price$69.90
XURB-S-492-1.27-35 Stencil for component BGA492 (I/O Count 492; Pitch 1.27mm; Body Size 35mm)
<...more info
Qty1 +
Price$69.90
XURB-S-596-1.27-35 Stencil for component BGA596 (I/O Count 596; Pitch 1.27mm; Body Size 35mm)
Qty1 +
Price$69.90
XURB-S-676-1.27-37.5 Stencil for component BGA676 (I/O Count 676; Pitch 1.27mm; Body Size 35mm)
Qty1 +
Price$69.90
XURB-S-69-0.8-11x8 Stencil for component BGA69 (I/O Count 69; Pitch 0.8mm; Body Size 11x8mm)
Qty1 +
Price$69.90
XURB-S-696-1-31 Stencil for component BGA696 (I/O Count 696; Pitch 1mm; Body Size 31mm)
Qty1 +
Price$69.90
XURB-S-Custom Re-balling stencil matching the custom insert above
Qty1 +
Price$89.90
Insert
XURB-I-11x8-1 Insert specific for IC body size 11x8mm and plastic height 1mm
<...more info
Qty1 +
Price$99.00
XURB-I-15-1.2 Insert specific for an IC body size 15mm and plastic height 1.2mm
<...more info
Qty1 +
Price$99.00
XURB-I-23-1.6 Insert specific for an IC body size 23mm and plastic height 1.6mm
<...more info
Qty1 +
Price$99.00
XURB-I-27-1.6 Insert specific for an IC body size 27mm and plastic height 1.6mm
<...more info
Qty1 +
Price$99.00
XURB-I-31-1.8 Insert specific for an IC body size 31mm and plastic height 1.8mm
<...more info
Qty1 +
Price$99.00
XURB-I-35-1.8 Insert specific for an IC body size 35mm and plastic height 1.8mm
<...more info
Qty1 +
Price$99.00
XURB-I-37.5-1.8 Insert specific for an IC body size 37.5mm and plastic height 1.8mm
<...more info
Qty1 +
Price$99.00
XURB-I-40-1.6 Insert specific for an IC body size 40mm and plastic height 1.6mm
<...more info
Qty1 +
Price$99.00
XURB-I-Custom Insert specific for an custom IC body size
<...more info
Qty1 +
Price$129.00
Solder Balls, Alloy Sn62/Pb36/Ag2
  XSB-0.3-10 Solder Balls, Alloy Sn62/Pb36/Ag2, Ball Diameter 0.3mm (0,012"), 10,000 pcs
<...more info 		Get quote
  XSB-0.3-25 Solder Balls, Alloy Sn62/Pb36/Ag2, Ball Diameter 0.3mm (0,012"), 25,000 pcs
<...more info 		Get quote
  XSB-0.3-50 Solder Balls, Alloy Sn62/Pb36/Ag2, Ball Diameter 0.3mm (0,012"), 50,000 pcs
<...more info 		Get quote
  XSB-0.3-100 Solder Balls, Alloy Sn62/Pb36/Ag2, Ball Diameter 0.3mm (0,012"), 100,000 pcs
<...more info 		Get quote
  XSB-0.45-10 Solder Balls, Alloy Sn62/Pb36/Ag2, Ball Diameter 0.45mm (0,018"), 10,000 pcs
<...more info 		Get quote
  XSB-0.45-25 Solder Balls, Alloy Sn62/Pb36/Ag2, Ball Diameter 0.45mm (0,018"), 25,000 pcs Get quote
  XSB-0.45-50 Solder Balls, Alloy Sn62/Pb36/Ag2, Ball Diameter 0.45mm (0,018"), 50,000 pcs
<...more info 		Get quote
  XSB-0.45-100 Solder Balls, Alloy Sn62/Pb36/Ag2, Ball Diameter 0.45mm (0,018"), 100,000 pcs
<...more info 		Get quote
  XSB-0.5-10 Solder Balls, Alloy Sn62/Pb36/Ag2, Ball Diameter 0.5mm (0,020"), 10,000 pcs
<...more info 		Get quote
  XSB-0.5-25 Solder Balls, Alloy Sn62/Pb36/Ag2, Ball Diameter 0.5mm (0,020"), 25,000 pcs
<...more info 		Get quote
  XSB-0.5-50 Solder Balls, Alloy Sn62/Pb36/Ag2, Ball Diameter 0.5mm (0,020"), 50,000 pcs
<...more info 		Get quote
  XSB-0.5-100 Solder Balls, Alloy Sn62/Pb36/Ag2, Ball Diameter 0.5mm (0,020"), 100,000 pcs
<...more info 		Get quote
  XSB-0.63-10 Solder Balls, Alloy Sn62/Pb36/Ag2, Ball Diameter 0.63mm, (0,0252"), 10,000 pcs Get quote
  XSB-0.63-25 Solder Balls, Alloy Sn62/Pb36/Ag2, Ball Diameter 0.63mm, (0,0252"), 25,000 pcs Get quote
  XSB-0.63-50 Solder Balls, Alloy Sn62/Pb36/Ag2, Ball Diameter 0.63mm, (0,0252"), 50,000 pcs Get quote
  XSB-0.63-100 Solder Balls, Alloy Sn62/Pb36/Ag2, Ball Diameter 0.63mm, (0,0252"), 100,000 pcs Get quote
  XSB-0.76-10 Solder Balls, Alloy Sn62/Pb36/Ag2, Ball Diameter 0.76mm, (0,0304"), 10,000 pcs Get quote
  XSB-0.76-25 Solder Balls, Alloy Sn62/Pb36/Ag2, Ball Diameter 0.76mm, (0,0304"), 25,000 pcs Get quote
  XSB-0.76-50 Solder Balls, Alloy Sn62/Pb36/Ag2, Ball Diameter 0.76mm, (0,0304"), 50,000 pcs Get quote
  XSB-0.76-100 Solder Balls, Alloy Sn62/Pb36/Ag2, Ball Diameter 0.76mm, (0,0304"), 100,000 pcs Get quote
Lead Free Solder Balls
  XSB-0.3LF-10 Lead Free Solder Balls, Alloy Sn96,5/Ag3/Cu0,5, Ball Diameter 0.3mm (0,012"), 10,000 pcs
<...more info 		Get quote
  XSB-0.3LF-25 Lead Free Solder Balls, Alloy Sn96,5/Ag3/Cu0,5, Ball Diameter 0.3mm (0,012"), 25,000 pcs
<...more info 		Get quote
  XSB-0.3LF-50 Lead Free Solder Balls, Alloy Sn96,5/Ag3/Cu0,5, Ball Diameter 0.3mm (0,012"), 50,000 pcs
<...more info 		Get quote
  XSB-0.3LF-100 Lead Free Solder Balls, Alloy Sn96,5/Ag3/Cu0,5, Ball Diameter 0.3mm (0,012"), 100,000 pcs
<...more info 		Get quote
  XSB-0.45LF-10 Lead Free Solder Balls, Alloy Sn96,5/Ag3/Cu0,5, Ball Diameter 0.45mm (0,018"), 10,000 pcs
<...more info 		Get quote
  XSB-0.45LF-25 Lead Free Solder Balls, Alloy Sn96,5/Ag3/Cu0,5, Ball Diameter 0.45mm (0,018"), 25,000 pcs
<...more info 		Get quote
  XSB-0.45LF-50 Lead Free Solder Balls, Alloy Sn96,5/Ag3/Cu0,5, Ball Diameter 0.45mm (0,018"), 50,000 pcs
<...more info 		Get quote
  XSB-0.45LF-100 Lead Free Solder Balls, Alloy Sn96,5/Ag3/Cu0,5, Ball Diameter 0.45mm (0,018"), 100,000 pcs
<...more info 		Get quote
  XSB-0.5LF-10 Lead Free Solder Balls, Alloy Sn96,5/Ag3/Cu0,5, Ball Diameter 0.5mm (0,020"), 10,000 pcs Get quote
  XSB-0.5LF-25 Lead Free Solder Balls, Alloy Sn96,5/Ag3/Cu0,5, Ball Diameter 0.5mm (0,020"), 25,000 pcs Get quote
  XSB-0.5LF-50 Lead Free Solder Balls, Alloy Sn96,5/Ag3/Cu0,5, Ball Diameter 0.5mm (0,020"), 50,000 pcs Get quote
  XSB-0.5LF-100 Lead Free Solder Balls, Alloy Sn96,5/Ag3/Cu0,5, Ball Diameter 0.5mm (0,020"), 100,000 pcs Get quote

Get quote - Special Order. Please e-mail or fax at 570.842.4290 for pricing.
