Goot Logo




Antistatic Wheels


Static Dissipative
Work Surface Material

Data Sheet

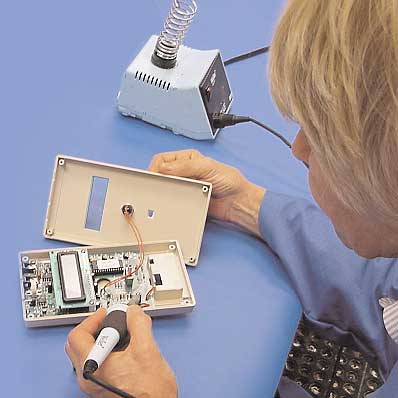

Ulimat™ is a new technology static dissipative industrial grade elastomer designed for use on tables and other grounded work bench surfaces. Its electrical properties are volume dissipative unlike many of the surface dissipative properties of the competition. This material was developed to conform with the new Class Zero requirements.

Ultimat™ is a chemically crosslinked material with different electrical resistances on both surfaces. Because it is inherently crosslinked the material will not delaminate and is volume conductive. The layers are permanently dissipative with "space age dissipative polymers" which will not lose its electrical properties, not exudate, and more important will not outgas and contaminate in clean room environments. The material is as durable as rigid laminates and as comfortable and appealing as the softer rubber table mats. Works great with continuous monitors.

Because of its structure the material meets both the US EOS 20/20 and European IEC 613450-5-1 specifications and therefore has outstanding charge dissipation, rapid charge decay, no charge suppression and outstanding low tribogeneration properties. The material will withstand solvents, soldering iron deformation, not curl, and have excellent abrasion resistance. The embossed surface will reduce light glare, increase part slip resistance, and facilitate cleaning. Since the material is free from halogens, lead, arsenic, barium, heavy metals, phthalate plasticizers, vinyl monomer, asbestos, formaldehyde, antimony, chromium, cadmium, and other dangerous volatiles it may be used in environments where outgassing and contamination is of concern.

Uses and Applications:

  • Electronics manufacturing
  • Pharmaceutical plants
  • Clean rooms
  • Computer installation
  • Fiber Optics
  • Hospitals
  • Defense and military
  • Chemical processing
  • Explosives
  • Printing
  • Aviation
Roll dimensions: 48" wide by 40 feet long
24" wide by 40 feet long
Mat sizes: 24" by 16"
24" by 48"
30" by 48"
36" by 48"
Colors: Blue, beige, grey, Other colors available
