FR4 CBGA High-Temperature
Test Board and Kits

For placement and rework using
daisy-chain CBGAs.

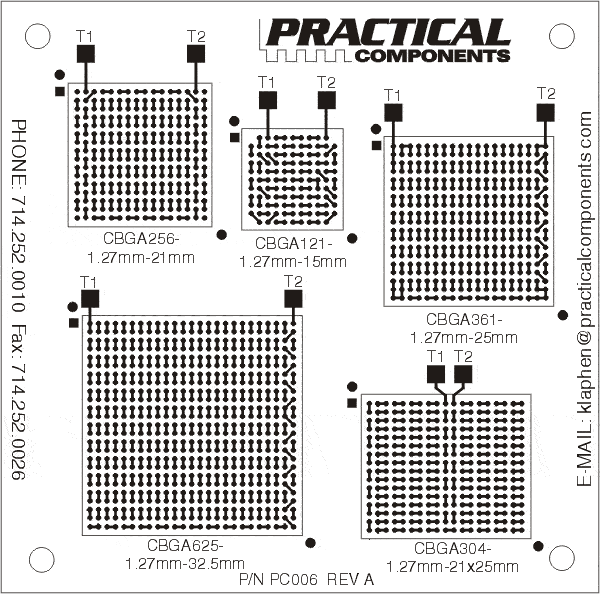

FR4 CBGA Board - Click to View

These test kits are used to place daisy-chained Ceramic Ball Grid Array packages on a high-temperature FR4 substrate. Each kit contains an FR4 substrate and CBGA components to place on one side of the board.

Order Number: PCB006 (Board Only)

  • We can configure kits to meet your requirements.
  • All CBGA components are 1.27mm pitch.
  • Gerber Data and X, Y theta data available at no charge.
  • Board size: 3.5" x 3.5"

FR4 CBGA Kits

Part Description Quantity Per
5 kits
Quantity Per
10 kits
Quantity Per
15 kits
Quantity Per
20 kits
Quantity Per
25 kits
CBGA121-1.27mm-15mm 5 10 15 20 25
CBGA256-1.27mm-21mm 5 10 15 20 25
CBGA361-1.27mm-25mm 5 10 15 20 25
CBGA304-1.27mm-21x25mm 5 10 15 20 25
CBGA625-1.27mm-32.5mm 5 10 15 20 25
PCB006 CBGA Test Board 5 10 15 20 25
Kit Order Number: PC006-0-5 PC006-0-10 PC006-0-15 PC006-0-20 PC006-0-25

Order Numbers for Individual Items

Part Description Part Number
CBGA121-1.27mm-15mm 10968
CBGA256-1.27mm-21mm 10705
CBGA361-1.27mm-25mm 10706
CBGA304-1.27mm-21x25mm 10357
CBGA625-1.27mm-32.5mm 10970
PCB006 CBGA Test Board 10541
