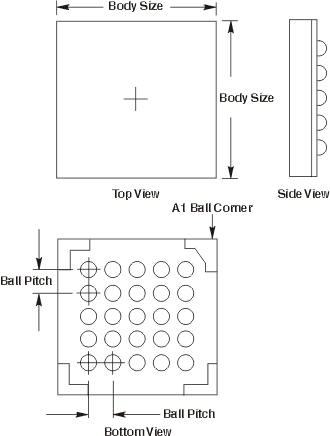

CABGA Drawing

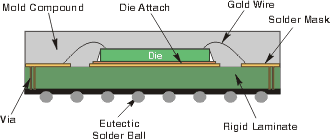

CABGA Cross-Section Drawing

CABGA Solder Flow Drawing

Package Pitch A B C D
1.0/0.8mm 0.46mm 0.48m (±0.05mm) 0.36mm (±0.05mm) 0.30mm (±0.05mm)
0.75mm/0.5mm 0.30mm 0.32mm (±0.50mm) 0.19mm (±0.05mm) 0.17mm (±0.03mm)

Note: Typical motherboard non-solder mask defined pad:

  • 0.50 pitch = 0.28
  • 0.80 pitch = 0.30
  • 1.00 pitch = 0.38
