PowerQuad®
LQFP Low Profile Quad Flat Pack
LQFP PowerQuad®2 (PQ2) is a breakthrough in IC packaging that provides extraordinary gains in power dissipation and speed through the use of innovative integrated, embedded copper heatsink. The IC is attached directly to the large, highly-efficient copper heatsink, which readily dissipates generated heat. The large heatsink also provides a “floating” ground plane to the signal leads of the package thereby reducing self-inductance by 50% over conventional plastic LQFPs. In addition, the patented LQFP PQ2 heatsink has integrated mechanical “locking” features to ensure total package integrity and eliminates moisture penetration.
LQFP PQ2 |
| Part Number | Number of Pins |
Body Size |
Lead Pitch |
Footprint | Quantity Per Tray |
Tape Width |
Tape Pitch |
Quantity Per Reel |
| A-PQ2-LQFP64-14mm-.8mm-2.0 | 64 | 14mm sq | .8mm | 2.0mm | 90 | 32mm | 24mm | 1,000 |
| A-PQ2-LQFP80-14mm-.65mm-2.0 | 80 | 14mm sq | .65mm | 2.0mm | 90 | 32mm | 24mm | 1,000 |
| A-PQ2-LQFP100-14mm-.5mm-2.0 | 100 | 14mm sq | .5mm | 2.0mm | 90 | 32mm | 24mm | 750 |
| A-PQ2-LQFP128-14mm-.4mm-2.0 | 128 | 14mm sq | .4mm | 2.0mm | 90 | 32mm | 24mm | 750 |
| A-PQ2-LQFP128-20mm-.5mm-2.0 | 128 | 20mm sq | .5mm | 2.0mm | 60 | 44mm | 24mm | 750 |
| A-PQ2-LQFP144-20mm-.5mm-2.0 | 144 | 20mm sq | .5mm | 2.0mm | 60 | 44mm | 24mm | 750 |
| A-PQ2-LQFP176-24mm-.5mm-2.0 | 176 | 24mm sq | .5mm | 2.0mm | 40 | 44mm | 32mm | 500 |
| A-PQ2-LQFP208-28mm-.5mm-2.0 | 208 | 28mm sq | .5mm | 2.0mm | 36 | 44mm | 40mm | 500 |
| A-PQ2-LQFP256-28mm-.4mm-2.0 | 256 | 28mm sq | .4mm | 2.0mm | 36 | 44mm | 40mm | 500 |

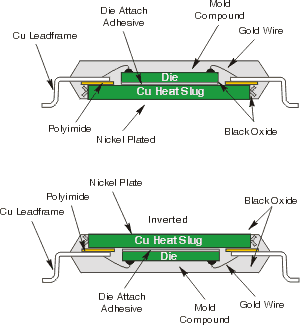

This Amkor LQFP (1.4mm thick) PowerQuad®4 (PQ4) has improved power dissipation by using an exposed copper heatslug. This large copper heat slug extracts generated heat from the leadframe to which the IC is attached. The patented LQFP PQ4 heat sink has integrated mechanical “locking” features to ensure package integrity and eliminate moisture penetration. Lead counts range from 32 to 128. Body size ranges from 7 x 7mm to 14 x 14mm. Heat sink up and down configurations are available.
LQFP PQ4
| Part Number | Number of Pins |
Body Size |
Lead Pitch |
Footprint | Quantity Per Tray |
Tape Width |
Tape Pitch |
Quantity Per Reel |
| A-PQ4-LQFP32-7mm-.8mm-2.0 | 32 | 7mm sq | .8mm | 2.0mm | 250 | 16mm | 12mm | 1,000 |
| A-PQ4-LQFP44-10mm-.8mm-2.0 | 44 | 10mm sq | .8mm | 2.0mm | 160 | 24mm | 24mm | 1,000 |
| A-PQ4-LQFP44-14mm-1.0mm-2.0 | 44 | 14mm sq | 1.0mm | 2.0mm | 90 | 32mm | 24mm | 750 |
| A-PQ4-LQFP48-7mm-.5mm-2.0 | 48 | 7mm sq | .5mm | 2.0mm | 250 | 16mm | 12mm | 1,000 |
| A-PQ4-LQFP64-10mm-.5mm-2.0 | 64 | 10mm sq | .5mm | 2.0mm | 160 | 24mm | 24mm | 1,000 |
| A-PQ4-LQFP64-14mm-.8mm-2.0 | 64 | 14mm sq | .8mm | 2.0mm | 90 | 32mm | 24mm | 750 |
| A-PQ4-LQFP80-14mm-.65mm-2.0 | 80 | 14mm sq | .65mm | 2.0mm | 90 | 32mm | 24mm | 750 |
| A-PQ4-LQFP100-14mm-.5mm-2.0 | 100 | 14mm sq | .5mm | 2.0mm | 90 | 32mm | 24mm | 750 |
| A-PQ4-LQFP120-14mm-.4mm-2.0 | 120 | 14mm sq | .4mm | 2.0mm | 90 | 32mm | 24mm | 750 |
| A-PQ4-LQFP128-14mm-.4mm-2.0 | 128 | 14mm sq | .4mm | 2.0mm | 90 | 32mm | 24mm | 750 |
- All LQFPs are standard in trays.
- LQFPs have a body thickness of 1.4mm.
- Tray quantity may vary.
- Carrier tape is plastic.
- High conductive, solid exposed heatsink.
- JEDEC standard packages MS-026.
- PQ2 provides extraordinary gains in power dissipation and speed through the use of innovative integrated embedded copper heatsink.
- Heatsink “up” and “down” configurations available.
