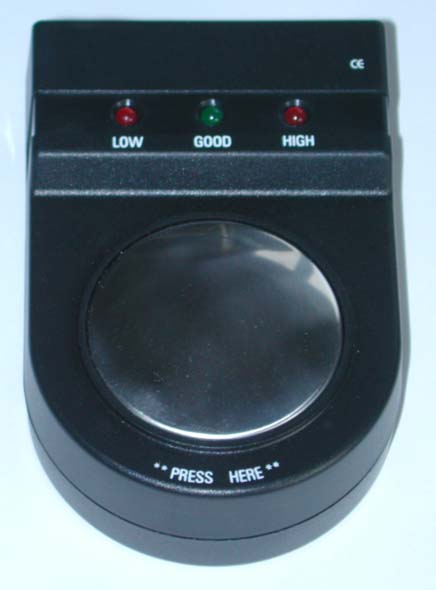

A-R10 - Wrist strap tester

Quick Search

Connect the grounding wire and press the center pad. If the grounding system is safe, the green "good" lamp will light up and an audible signal will be heard. Can be used anywhere to quickly and easily check a variety of grounding systems. Ensures employee safety and eliminates product defects caused by electrostatic discharge.

Unit quickly & simply checks all the following:

Wrist straps & grounding wires.
Contact resistance between the wrist strap and the skin.

System includes

Wrist strap tester
Ground wire: 6.2' (2,5m)

Technical specifications

Indication
LOW	< 800 kohm
GOOD	800 kohm - 9 Mohm
HIGH	> 9 Mohm
Dimensions	3.1" x 4.6" x 1.5" (80 x 117 x 40 mm)
Power	9V battery required

Note: The tolerance in resistance is set to +10%-0% for lower limit of 800 kohm and +0%-10% for upper limit of 9 Mohm
