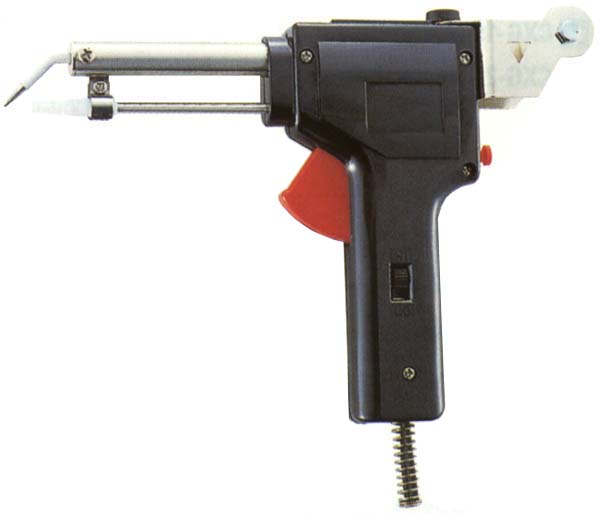

Goot BrandSoldering Guns HFC-40, HFC-60

  • Improves soldering speed because the solder is out from the nozzle when pulling the trigger
  • Both models have good heat efficiency and high insulation providing many years of trouble free operation
  • The spool of solder recommended for this gun is goot SE series 150g/200g (wire diameter 0.8 - 1.6mm)
  • Standard spool holder allowing for use of customer choice solder
  • Two stage switch between High and Low allows for choice of power which suites application

Click to enlarge image

MODEL Approx. Tip Temp /oC Consumption /W Length /mm Weight /g

HFC-40

440/330 (High/Low) 38/19 (high/Low) 190 275

HFC-60

470/370 (High/Low) 58/29 (high/Low) 190 285

Spare Parts

HFC-40 Heater  HFC-40H
HFC-60 Heater HFC-60H
Spare Nozzle HF-40/60N

Replacement Tips

  |  Print page



Order Now Part Number Description Price
USD
HFC Irons
HFC-40 -115V Soldering Guns HFC-40, 110-120V AC, 60Hz
Qty1 +
Price$69.90
HFC-40 -230V Soldering Guns HFC-40, 220-240V AC, 50Hz
Qty1 +
Price$69.90
HFC-60 -115V Soldering Guns HFC-60, 110-120V AC, 60Hz
Qty1 +
Price$69.90
HFC-60 -230V Soldering Guns HFC-60, 220-240V AC, 50Hz
Qty1 +
Price$69.90
HF Tips

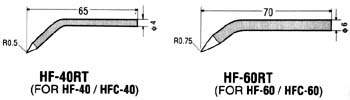

HF-40RT Replacement tip
Qty1 +
Price$3.60
HF-40RT-B Replacement tip
Qty1 +
Price$3.60
HF-40RT-BC Replacement tip
Qty1 +
Price$3.60
HF-40RT-C Replacement tip
Qty1 +
Price$3.60
HF-40RT-SB Replacement tip
Qty1 +
Price$3.60
HF-60RT Replacement tip
Qty1 +
Price$4.20
