Soldering Irons CXG-15/25/28/32

LONG LIFE, HIGH INSULATION AND LOW LEAKAGE  CURRENT HIGH CAPACITY CERAMIC HEATER

Features

  • Ergonomic design.

  • Rubber grip to ease fatigue during continuous operation.

  • Grounded tip to assure safety.

CE MarkClick to enlarge picture

Specification / Replacement Parts

MODEL

 Approx. Tip temp. /°C Voltage / V Consumption / W Length / mm Weight / g
CXG-15 420 110-130, 220-240 AC 15 215 60
CXG-25 460 110-130, 220-240 AC 25 220 70
CXG-28 480 110-130, 220-240 AC 28 235 75
CXG-32 500 110-130, 220-240 AC 32 235 80

Spare Parts

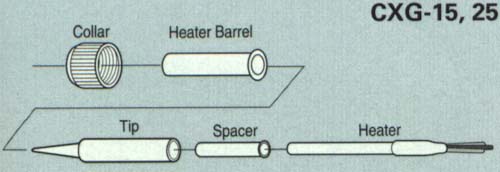

Click to enlarge CHG 15 and 25 Heater
CXG-15 Heater  CXG-15H
CXG-25 Heater CXG-25H
CXG-15 Heater Barrel CXG-15HP
CXG-25 Heater Barrel CXG-25HP
CXG-15 Collar CXG-15NUT
CXG-25 Collar CXG-25NUT
CXG-15 Spacer CXG-15SS
CXG-25 Spacer CXG-15SS

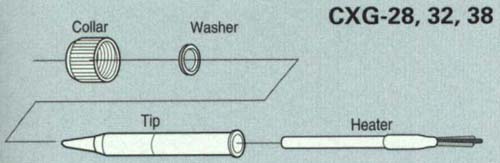

Click to enlarge CHG 28, 32 and 38 Heater
CXG-28 Heater  CXG-28H
CXG-32 Heater CXG-32H
CXG-38 Heater CXG-38H
CXG-28 Collar CXG-28NUT
CXG-32 Collar CXG-32NUT
CXG-38 Collar CXG-38NUT
CXG-28 Washer CXG-28WS
CXG-32 Washer CXG-32WS
CXG-38 Washer CXG-38WS

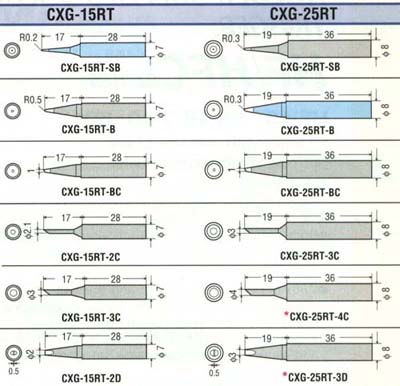

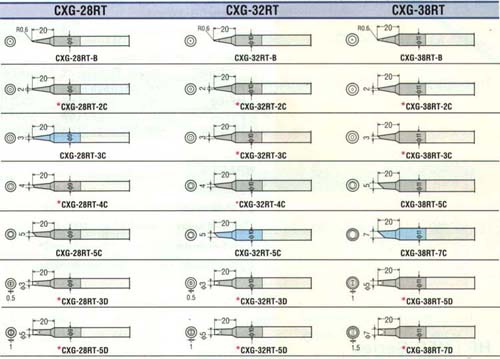

CXG-15/25 Replacement Tips CXG-28/32/38 Replacement Tips

Click to enlarge

Click to enlarge
  |  Print page



Order Now Part Number Description Price
USD
CXG Irons
CXG-15 /12 Soldering iron, approx. tip temp. 420 °C , 110-130V
Qty1 +
Price$19.45
CXG-15 /22-CE Soldering iron, approx. tip temp. 420 °C , 220-240V, CE
Qty1 +
Price$19.45
CXG-25 /12 Soldering iron, approx. tip temp. 460 °C , 110-130V AC
Qty1 +
Price$19.45
CXG-25 /22-CE Soldering iron, approx. tip temp. 460 °C , 220-240V AC, CE
Qty1 +
Price$19.45
CXG-28 /22-CE Soldering iron, approx. tip temp. 480 °C , 220-240V AC, CE
Qty1 +
Price$19.95
CXG-32 /12 Soldering iron, approx. tip temp. 500 °C , 110-130V
Qty1 +
Price$19.95
CXG-32 /22 Soldering iron, approx. tip temp. 500 °C , 220-240V
Qty1 +
Price$19.50
CXG-32 /22-CE Soldering iron, approx. tip temp. 500 °C , 220-240V, CE
Qty1 +
Price$19.95
CXG Tips
CXG-15RT-2C Soldering tip 7mm for CXG-15, R/part
Qty1 +
Price$5.40
CXG-15RT-2D Soldering tip 7mm for CXG-15, R/part
Qty1 +
Price$5.40
CXG-15RT-3C Soldering tip 7mm for CXG-15, R/part
Qty1 +
Price$5.40
CXG-15RT-5K Soldering tip 7mm for CXG-15, R/part
Qty1 +
Price$11.90
CXG-15RT-8K Soldering tip 7mm for CXG-15, R/part
Qty1 +
Price$11.90
CXG-15RT-8S Soldering tip 7mm for CXG-15, R/part
Qty1 +
Price$11.90
CXG-15RT-B Soldering tip 7mm for CXG-15, R/part
Qty1 +
Price$5.40
CXG-15RT-BC Soldering tip 7mm for CXG-15, R/part
Qty1 +
Price$5.40
CXG-15RT-SB Soldering tip 7mm for CXG-15, R/part
Qty1 +
Price$5.40
CXG-25RT-3C Soldering tip 8mm for CXG-25, R/part
Qty1 +
Price$5.40
CXG-25RT-3D Soldering tip 8mm for CXG-25, R/part
Qty1 +
Price$5.40
CXG-25RT-4BC Soldering tip 8mm for CXG-25, R/part
Qty1 +
Price$5.40
CXG-25RT-4C Soldering tip 8mm for CXG-25, R/part
Qty1 +
Price$5.40
CXG-25RT-5BC Soldering tip 8mm for CXG-25, R/part
Qty1 +
Price$7.60
CXG-25RT-B Soldering tip 8mm for CXG-25, R/part
Qty1 +
Price$8.40
CXG-25RT-BC Soldering tip 8mm for CXG-25, R/part
Qty1 +
Price$8.40
CXG-25RT-SB Soldering tip 8mm for CXG-25, R/part
Qty1 +
Price$8.40
CXG-32RT-2C Replacement tip
Qty1 +
Price$8.40
CXG-32RT-3C Replacement tip
Qty1 +
Price$8.40
CXG-32RT-3D Replacement tip
Qty1 +
Price$8.40
CXG-32RT-4C Replacement tip
Qty1 +
Price$8.40
CXG-32RT-5C Replacement tip
Qty1 +
Price$8.40
CXG-32RT-5D Replacement tip
Qty1 +
Price$8.40
CXG-32RT-B Replacement tip
Qty1 +
Price$5.40
CXG-38RT-2C Replacement tip
Qty1 +
Price$6.99
CXG-38RT-3C Replacement tip
Qty1 +
Price$6.99
CXG-38RT-5C Replacement tip
Qty1 +
Price$6.99
CXG-38RT-5D Replacement tip
Qty1 +
Price$6.99
CXG-38RT-7C Replacement tip
Qty1 +
Price$6.99
CXG-38RT-7D Replacement tip
Qty1 +
Price$6.99
CXG-38RT-B Replacement tip
Qty1 +
Price$6.99
