Goot BrandTQ Series Quick Heat Soldering Iron

VERY CONVENIENT FOR FIELD SERVICE USE

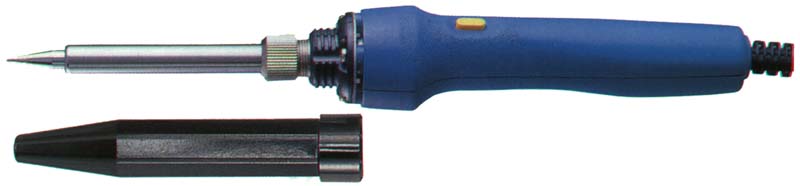

TQ-95

Features

  • By pushing the button continuously (High position) the maximum temperature is reached 10 times faster than the normal position (Low)

  • The ergonomically designed grip is safe and comfortable

  • Compact and light weight making easy to carry

  • The standard heat insulation cap allows quick store (3 minutes after unplugging)

  • Perfect for field service technicians

CE MarkClick to enlarge image
MODEL Voltage /V Power consumption /W Lenght /mm Weight /g
TQ-95 110-130 AC 150/15 200 50

Parts

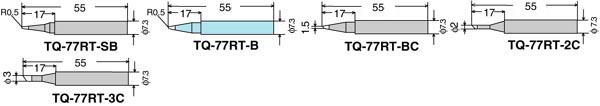

Available Tip Shape

Quick Heat Soldering Gun With Ceramic Heater Type

TQ-77 PISTOL TYPE QUICK HEAT SOLDERING GUN

  • The pistol grip was designed and adopted after careful ergonomics study. It can be operated for extended periods comfortably even by someone with a small hand.
  • The design allows full concentration on the work by making it easy to see the tip.
  • A two stage switching system with High (trigger pulled) and Low (normal position).
  • When pulling the trigger, the temperature rises to 330°C and the recovery time is 10 times faster than the Low (normal position).

TQ-77

Specifications

MODEL Voltage /V Power consumption /W Lenght /mm Weight /g
TQ-77/12 110-130 AC 150 / 15 166 90
TQ-77/22-CE 220-240 AC 200 / 20 176 90

Parts

TQ-77 Heater TQ-77H
TQ-77 Heat resistance cap (option) TQ-CAP
TQ-77 Heater pipe TQ-77HP
TQ-77 Nut TQ-77NUT
TQ-77 Spacer TQ-77SS

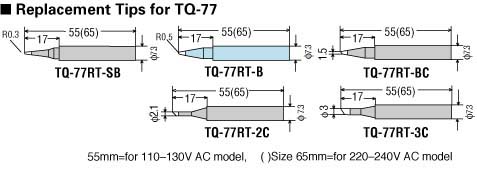

Available Tip Shapes

  |  Print page



Order Now Part Number Description Price
USD
TQ Irons Quick Heat Soldering Iron
TQ-77 /12 Quick Heat Soldering Gun With Ceramic Heater , 110-120V AC
Qty1 +
Price$29.90
TQ-77 /22-CE Quick Heat Soldering Gun With Ceramic Heater , 220-240V AC, CE
Qty1 +
Price$29.90
TQ-95 /12 Quick Heat Soldering Iron , 110-120V AC
Qty1 +
Price$34.90
Replacement parts
TQ-77-HP TQ-77 Heater Pipe
Qty1 +
Price$3.75 *2
TQ-77-NUT TQ-77 Nut
Qty1 +
Price$3.15 *2
TQ-77-SS TQ-77 Spacer
Qty1 +
Price$2.49 *2
TQ-Cap Cap fits the TQ-77 and TQ-95
Qty1 +
Price$4.90
TQ-77RT Tips
TQ-77RT-SB/12 Replacement tip, 110-130V
Qty1 +
Price$5.90
TQ-77RT-SB/22 Replacement tip, 220-240V
Qty1 +
Price$5.90
TQ-77RT-B/12 Replacement tip, 110-130V
Qty1 +
Price$5.90
TQ-77RT-B/22 Replacement tip, 220-240V
Qty1 +
Price$5.90
TQ-77RT-BC/12 Replacement tip, 110-130V
Qty1 +
Price$5.90
TQ-77RT-BC/22 Replacement tip, 220-240V
Qty1 +
Price$5.90
TQ-77RT-2C/12 Replacement tip, 110-130V
Qty1 +
Price$5.90
TQ-77RT-2C/22 Replacement tip, 220-240V
Qty1 +
Price$5.90
TQ-77RT-3C/12 Replacement tip, 110-130V
Qty1 +
Price$5.90
TQ-77RT-3C/22 Replacement tip, 220-240V
Qty1 +
Price$5.90

*2 - Min order 3 pcs.
