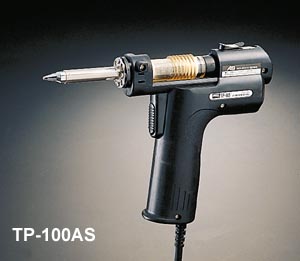

Portable Anti-Static De-Soldering Gun TP-100AS

Anti-Static series provide delicate components safe from static damage TP-100AS.

Features

  • Built-in superior functions into compact size provide easy de-soldering job for thru-hole on P.C.Board.
  • Built-in Motor, Vacuum Pump & Temperature control circuit provide a compact and portable design for improved work performance.
  • De-soldering made easy using the multi-layers P.C.Board with its strong vacuum pump .
  • Sensor built-in ceramic heater provides a superior heating and nozzle heat recovery.
  • Noise free temperature control circuit adopted with Zero-Volt Switching System.
  • SIMPLE CARTRIDGE REPLACEMENT
    New designed spare cartridge enables simple filter replacement. High heat resistance and fragile free plastic cartridge.

TP-100AS

CE MarkClick to enlarge image

Specification / Replacement Parts

Compatible to ISO-9000 series. Equivalent to MIL STD.2000A

MODEL TP-100AS
Voltage 110-130, 220-240V AC
Power Consumption 105W/95W *
Temp. setting range 250-450°C
Heater element Ceramic element
Temp. control system Sensor feed-back (ON-OFF control)
Insulation Resistance Over 100MOhm (500V DC)
Vacuum pump system Diaphragm system (Twin pump)
Max. Vacuum pressure 600 mmHg
Size 220x155 mm
Weight 470g (w/o cord)
AC Power cord 3 cored cord (with 3pin plug 1.5m)
Accessories Cleaning pin / Hand piece holder

* - Rating for 100-130V / 220-240V

Parts

Heater TP-100/200H
Heater pipe TP-100/200HP
Filter TP-100/200F
Cartridge set TP-100/200K
Cleaning pin (O 0,7) TP-100/200CP0.7
Cleaning pin (O 1,3) TP-100/200CP0.7

Available Nozzles

The same Tips like in TP-200AS Model

  |  Print page



Order Now Part Number Description Price
USD
TP-100AS
TP-100AS /12 Antistatic portable desoldering gun , 110-120V AC
Qty1 +
Price$329.99
TP-100AS /22-CE Antistatic portable desoldering gun , 220-240V AC, CE
Qty1 +
Price$339.99
Optional Equipment
TP-100/200F 3 pcs of Replacement Filter Set
Qty1 +
Price$6.99
TP-100/200K Replacement Cartridge with Filter Set
Qty1 +
Price$8.99
TP-100N Nozzles
TP-100N-08 Replacement Nozzles
Qty1 +
Price$26.30
TP-100N-10 Replacement Nozzles
Qty1 +
Price$26.30
TP-100N-15 Replacement Nozzles
Qty1 +
Price$26.30
TP-100N-25 Replacement Nozzles
Qty1 +
Price$26.30
TP-100N-S1 Replacement Nozzles
Qty1 +
Price$26.30
TP-100N-S5 Replacement Nozzles
Qty1 +
Price$26.30
TP-100N-S8 Replacement Nozzles
Qty1 +
Price$26.30
