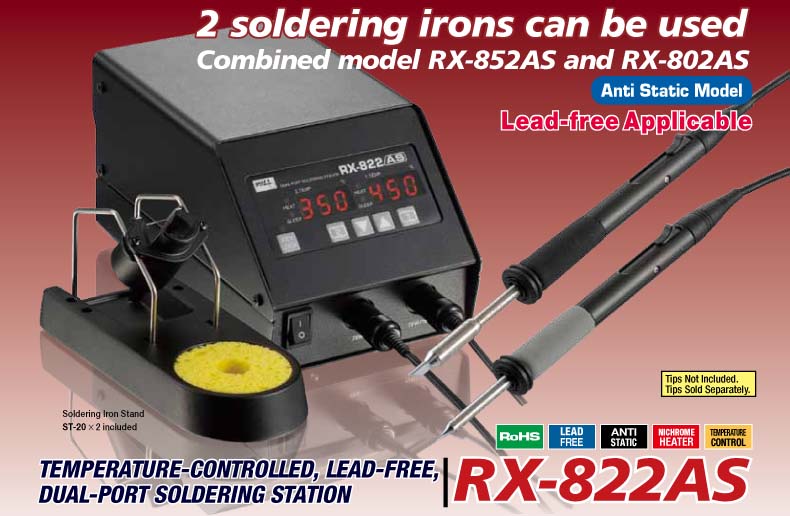

RX-822AS - Temperature-controlled, lead-free,
dual-port soldering station
2 soldering irons can be used
Can be prepared with 2 different tip types.Therefore, you can do different types of work [such as Micro soldering /High power work (150W)] at the same time.
The 2 soldering irons can be set to different temperatures.
The set temperature and condition can be checked easily with the separate temperature display.
Enables the reworking of chip parts.
It is possible to rework chip parts using 2 tips at the same time. Thus, occasional reworking may be performed without requiring other tools.
Advanced high functionality
Equipped with intelligent functions such as Sleep function, Sleep function release, Shutdown function and Key lock function by the accumulated technology in the RX-802AS.
Easy–to–use handpiece
Equipped with a favorable RX-80GAS/85GAS handpiece. Easy to replace tip without using tools even though a tip is hot. Lighter, reduced heat trasfer, flexible soldering unit cord, and a shorter distance from the handpiece to the tip. Good for more hours of work.
Wide variety of tips
More than 40 shapes of tip are available. You can choose the most suitable tip for your work.

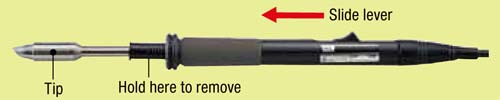

How to Change the Soldering Unit Tip
To remove the soldering unit tip, slide the lever in the direction of the arrow. The tip will then protrude from the handpiece and can be removed easily by holding and pulling the plastic housing of the integrated tip/heater.
Technical Specification
| MODEL | RX-822AS |
|---|---|
| Voltage | 110-120, 220-240V AC |
| Power Consumption | 220–260W |
| Soldering Iron Voltage /Wattage | RX-85GAS: Soldering unit [1] side 24V AC 72W/ 150W |
| RX-80GAS: Soldering unit [2] side 24V AC 72W | |
| Temperature Setting Range | 50–450°C (122–842°F) |
| Dimensions | Control Unit : 194(L) X 116(W) X 105(H)mm |
| RX-85GAS 174mm (with RX-85HRT -5D, w/o cord bushing) RX-80GAS 158mm (with RX-80HRT -B, w/o cord bushing) |
|
| Weight | Control Unit :Approx. 4.9kg (w/o cord) |
| RX-85GAS Approx.39g (with RX-85HRT -5D, w/o cord bushing) RX-80GAS Approx. 28g (with RX-80HRT -B, w/o cord bushing) |
|
| Soldering Unit Cord Length | RX-85GAS: 1.5m, RX-80GAS: 1.2m |
| AC Power Cord Length | 1.5m 3 core cord (ground plug) |
| Leak Voltage | Less than 2mV |
| Ground Resistance | Less than 2Ω |
| Accessories | Soldering Iron Stand (ST-20) X 2 |
Replacement Parts
- RX-852AS Soldering Unit RX-85GAS (Tip not included)
- RX-802AS Soldering Unit RX-80GAS (Tip not included)
- ST-20 Replacement Sponge ST-53SP
- Tip Holder (Option) ST-20C (ST-20C tip holder is mounted on the ST-20 soldering iron stand)
Handpiece grip rubber (Anti-static)
Four colours to differentiate between stations, tasks or types of solder being used.
(gray) RX-80RB
(black) RX-80RB-BK
(orange) RX-80RB-OR
(green) RX-80RB-GR
Replacement tips
 |

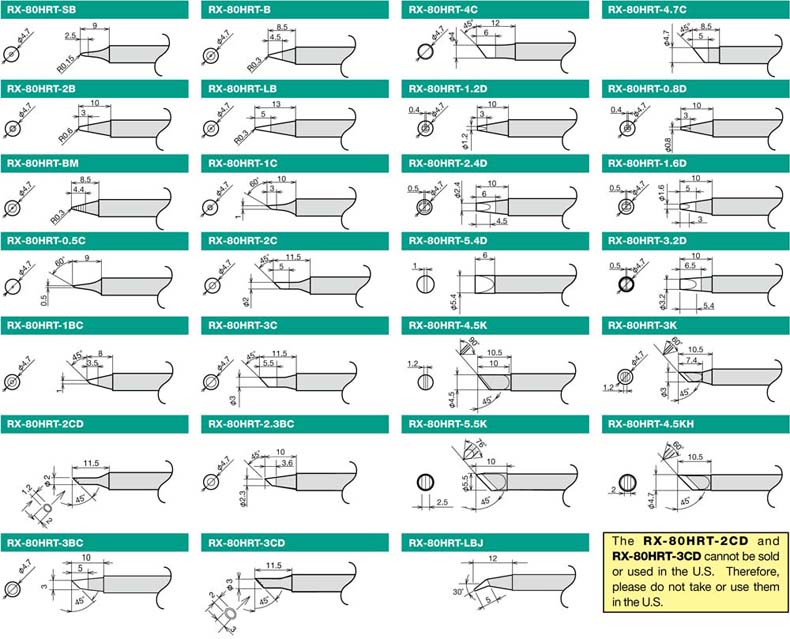

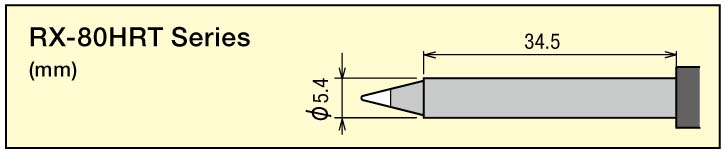

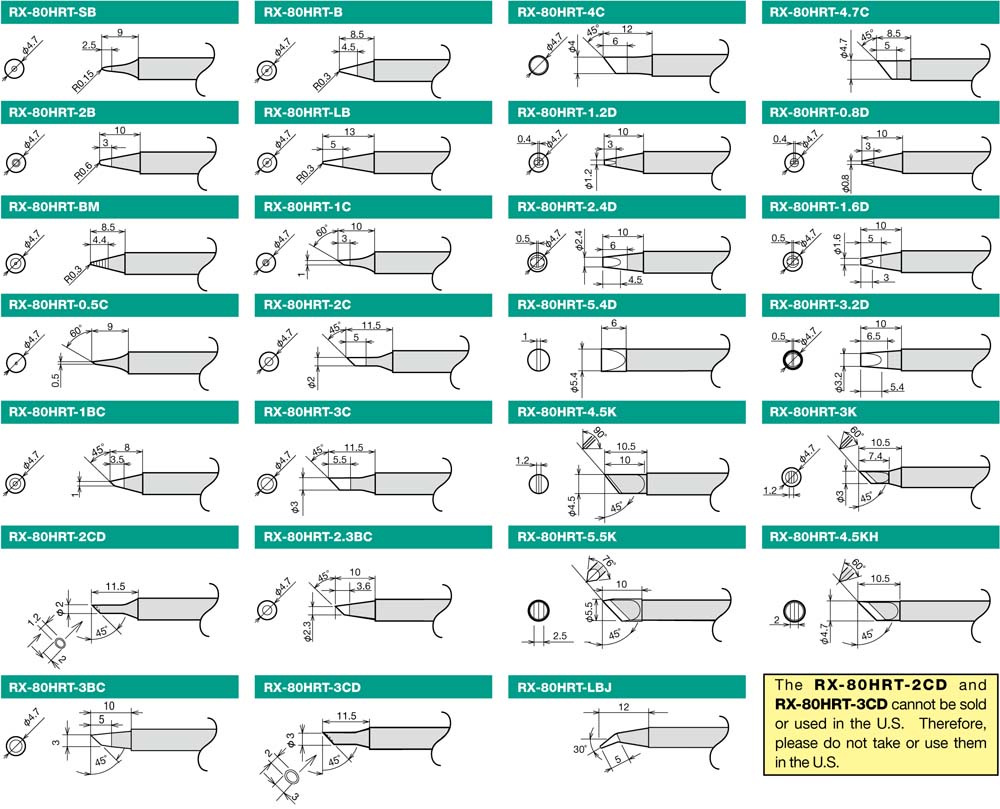

RX-80HRT series [72W]Applicable Soldering Unit : RX-85GAS/RX-80GAS Note: Since the heater is integrated in the tip, replacement of only the heater or the tip is not possible. |
 |

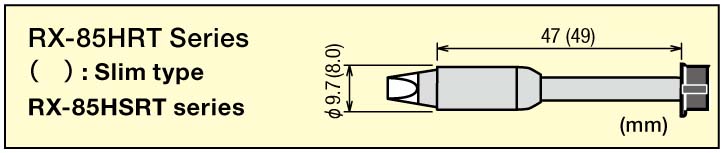

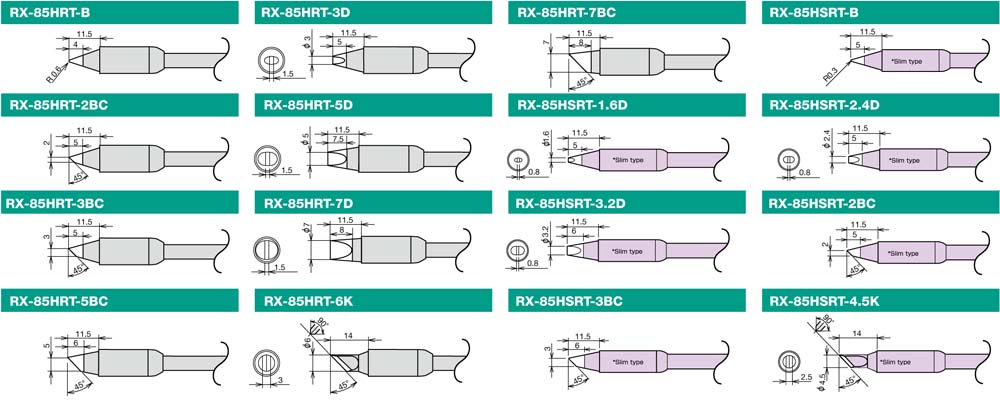

RX-85HRT series [150W]Applicable Soldering Unit : RX-85GAS Note: Since the heater is integrated in the tip, replacement of only the heater or the tip is not possible. |
 |
Part Number | Description | Price USD |
||||
|---|---|---|---|---|---|---|---|
| RX-822AS | Temperature-controlled, lead-free, dual-port soldering station |
|
