ESD Brushes

ESD Brushes are needed in electronics manufacturing:

• They help to clean the PCB’s (remove unwanted dirt, flux residues etc.), and discharge static electricity through properly ESD grounded operator.
• Conductive brushes minimize static charge generation during cleaning.
• Black static dissipative polypropylene handles are able to pass the charges to the ground.
• Conductive fibers resistanc: 10³ - 10⁴ Ω
• Dissipative handle resistance: 10⁵ - 10⁸ Ω
• Harder brushes are used mainly for electronics in manufacturing and service of the circuit boards.
• Soft brushes are used for cleaning optics, micro-circuits etc.

Picture	Part Number	Rows and Bristles	Description	Total length (mm)	Bristle Length (mm)	Bristle Width (mm)	Bristle Height (mm)	Weight (g)
	ABB-501	1 row	ESD pen Brush	135	20	fi 3.4		8

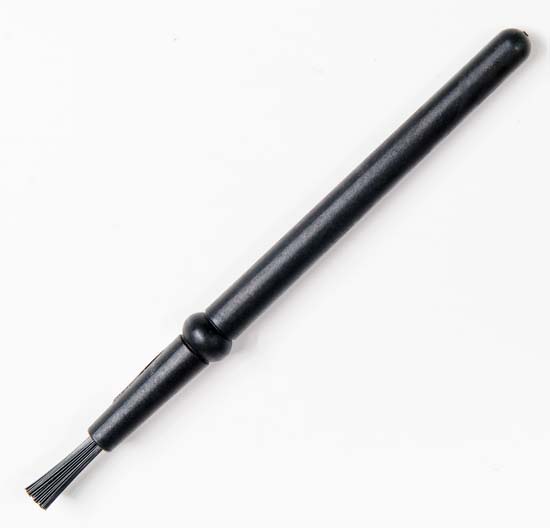

	ABB-502	1 row	ESD pen Brush	140	20	fi 3.4		8
	ABB-503	1 row 3 bristles bundles	ESD Safe Conductive, hard brush.	155	18	3.6	30	17

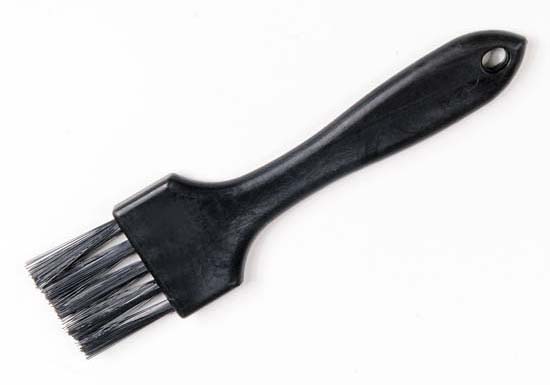

	ABB-505	1 row 5 bristles bundles	ESD Safe Conductive, hard brush.	165	33	4.5	32	20
	ABB-507	1 row 7 bristles bundles	ESD Safe Conductive, semi-hard brush.	140	33	2.7	25	13

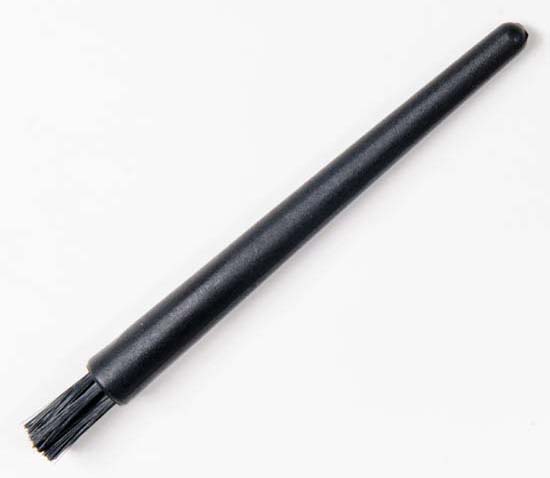

	ABB-507R	Round 7 bristles bundles	ESD round Brush		circle	fi=9	17	10
	ABB-510	1 packet, flat	ESD Brusch, Round, Hard, Good universal use.Cleanning PCB's etc. Perfect for light duty.	162	17	5	30	22
	ABB-511	2 rows 11 bristles bundles	Semi-hard ESD Brush, Light duty	150	18	4.5	20	8
	ABB-520	3 rows 20 bristles bundles	ESD Conductive brush. Surface resistance: 10e3--10e6 Ω. Removes dirt on PCB's or other ESD sensitive components, and discharges the static electricity through conductive path via human body.	175	35	10	16	19
	ABB-522	2 rows 22 bristles bundles	ESD Conductive brush. Surface resistance: 10e3--10e6 Ω. Removes dirt on PCB's or other ESD sensitive components, and discharges the static electricity through conductive path via human body.	170	60	10	18	23
	ABB-534	3 rows 34 bristles bundles	ESD Conductive brush. Surface resistance:10e3--10e6 Ω. Removes dirt on PCB's or other ESD sensitive components, and discharges the static electricity through conductive path via human body.	225	94	16	22	52
	ABB-550	Continuous packet of bristles	ESD Safe Conductive, Soft brush. 2" wide.	220	50	15	50	100
	ABB-575	Continuous packet of bristles	ESD Safe Conductive, Soft brush. 3" wide.	210	75	15	50	120
	ABB-317	1 row 17 bristles bundles	ESD Safe, Conductive Soft brush. Medium size. Good for cleaning benches and other larger surfaces. Will not generate static during cleanning process.	255	125	5	33	80
	ABB-333	1 row 33 bristles bundles	ESD Safe, Large, Conductive Soft brush. Good for cleaning bench es and other larger surfaced. Will not generate the charges during cleanning process.	390	220	5	48	143
	ABB-350	5 rows 50 bristles bundles	ESD Safe, Basic, Conductive Hard brush. Good for cleaning flux residue and small particles on PCB's and other surfaces.	95	68	32	20	62
	ABB-398	7 rows 98 bristles bundles	ESD Safe, Basic, Conductive Hard brush. Good for cleaning flux residue and small particles on PCB's and other surfaces.	120	95	46	20	107
	ABB-3160	8 rows 160 bristles bundles	ESD Safe, Basic, Conductive Hard brush. Good for cleaning flux residue and small particles on PCB's and other surfaces.	180	155	57	20	203

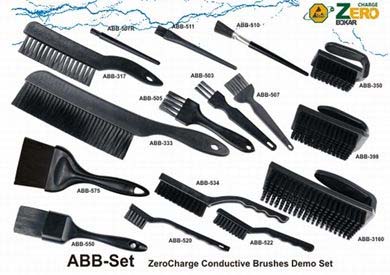

	ABB-Demo Set	15 brushes	ESD Safe Conductive brushes. Good for cleaning flux residue and small particles on PCB's and other surfaces.
