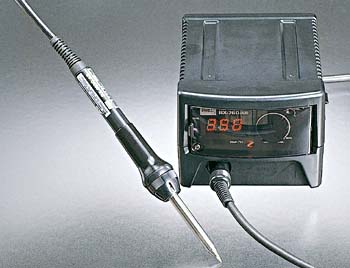

RX-760AS Temperature controlled lead-free soldering station

Lead Free

Lead-free soldering station with great heat recovery and with the newly developed long-life tip.

Need an economical lead-free soldering station with great heat recovery? Here is the BEST choice available! The newly developed long-life tip is also available now!

Features:

Soldering tip sensor feedback system enables the measurement and control of the actual tip temperature accurately in real time.
Quick heat recovery with 70W high power heater.
Anti-static model.
Digital display allows the easy and highly reliable temperature control.
11 Different tip types with integrated heater are available: B / LB / SB / 1C / 2C / 3BC / 4BC / 1.6D / 2.4D / 3.2D / 5K Replacement tips : RX-93HRT Series

RX-711AS PH includes soldering iron stand model ST-77

SPECIFICATIONS / REPLACEMENT PARTS
Compliant with ISO 9000 series. Equivalent to IPC / EIA J-STD-001C

Model		RX-760AS
Input Voltage		110—130, 220—240V AC
Power Consumption		80W
Soldering Iron Voltage		24V AC 70W
Temp. Setting Range		200—500°C
Temperature Display		Digital
Insulation Resistance 500V DC		Over 100MW
Dimensions	Soldering Iron	200mm (Not including the cord bushing)
	Control Unit	146(L) X 115(W) X 98(H)mm
Weight	Soldering Iron	40g (w/o cord)
	Control Unit	1.8Kg (w/o cord)
Leak Voltage		Less than 0.5mV
Ground Resistance		Less than 0.3Ω
Control Unit to Soldering Iron Cord Length		1.2m
Power Cord Length		1.3m (3 core cable, ground plug)
Accessories		Soldering iron stand ST-77

REPLACEMENT PART / OPTIONS

Previous page | Print page

Part Number

Description

Price
USD

RX-760AS

RX-760AS /12

Temperature controlled lead-free soldering station , 110-130V AC

Qty	1 +
Price	$199.00

RX-760AS /22

Temperature controlled lead-free soldering station , 220-240V AC

Get quote

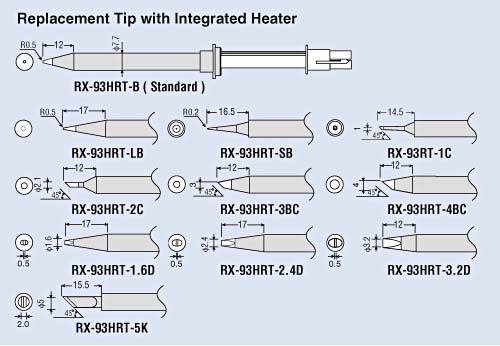

RX-93HRT Tips

RX-93RHT-1.6D

Replacement Tip

Qty	1 +
Price	$9.90

RX-93RHT-1C

Replacement Tip

Qty	1 +
Price	$9.90

RX-93RHT-2.4D

Replacement Tip

Qty	1 +
Price	$9.90

RX-93RHT-2C

Replacement Tip

Qty	1 +
Price	$9.90

RX-93RHT-3.2D

Replacement Tip

Qty	1 +
Price	$9.90

RX-93RHT-3BC

Replacement Tip

Qty	1 +
Price	$9.90

RX-93RHT-4BC

Replacement Tip

Qty	1 +
Price	$9.90

RX-93RHT-5K

Replacement Tip

Qty	1 +
Price	$9.90

RX-93RHT-B

Replacement Tip

Qty	1 +
Price	$9.90

RX-93RHT-LB

Replacement Tip

Qty	1 +
Price	$9.90

RX-93RHT-SB

Replacement Tip

Qty	1 +
Price	$9.90

Get quote - Special Order. Please e-mail or fax at 570.842.4290 for pricing.
