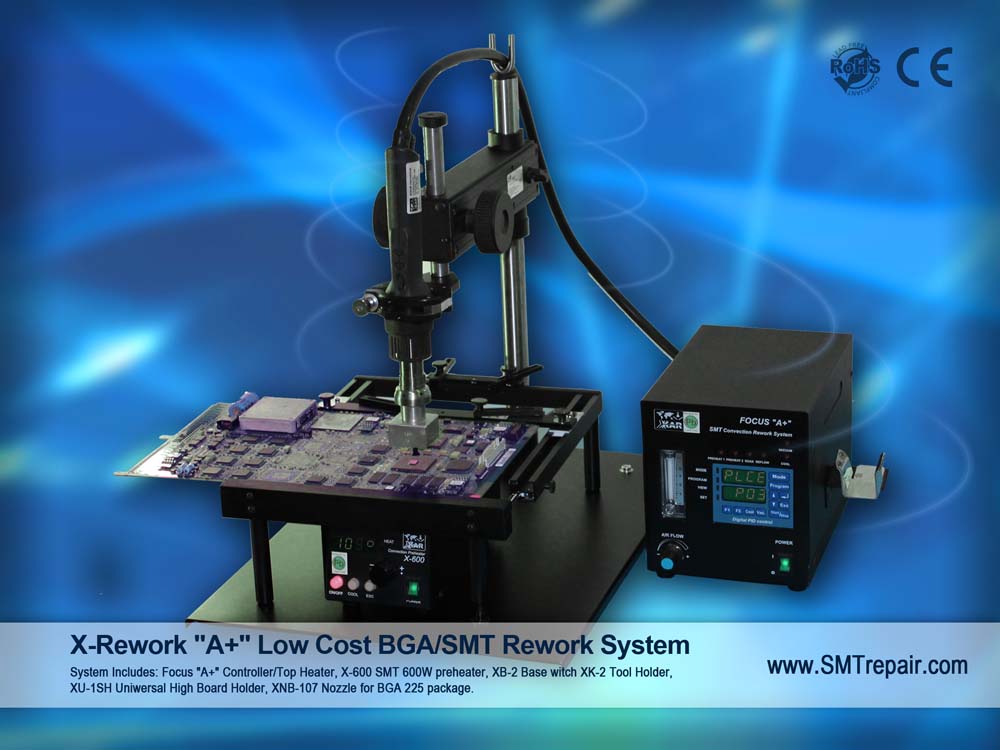

X-Rework "A+" Basic rework system for all board sizes

The system has Top and Bottom Convection Heaters and Component pick-up by vacuum built-in the Hot Air Tool. Top and Bottom Heaters are controlled by digital PID independent controllers. The system has Universal Board Holder for Regular and irregular shape boards and a Tool Holder (Left and Right Handed) for smooth up/down motion of the Top Heating Tool with Nozzles. This system is an above basic Work Horse and will serve well everyone who does not require to memorize to many profiles. Precise alignment in x, y axis and precise hot air tool rotation can be achieved by purchase of an optional XK-4 or XK-3 tool holder.

If connection to a PC and storage of process parameters are required one should get one of the X-FineRework Systems

The System Includes:

  • Focus "A+" - Hot Air Convection Unit
  • XKB-1 - Base with XK-2 Top Tool Holder
  • X-600 - 600W Convection Preheater
  • XU-1SH - Universal High Board Holder
  |  Print page



Order Now Part Number Description Price
USD
X-Rework A+ Basic rework system for all board sizes
Qty1 +
Price$2,199.90
