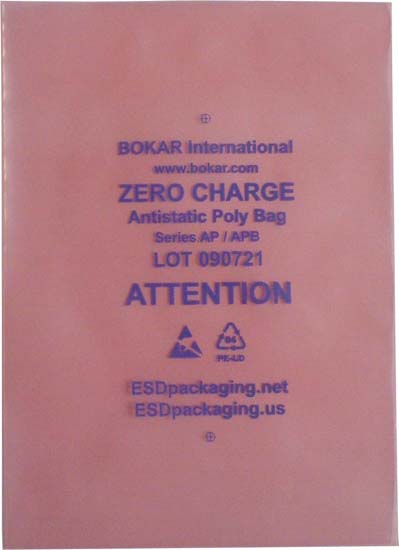

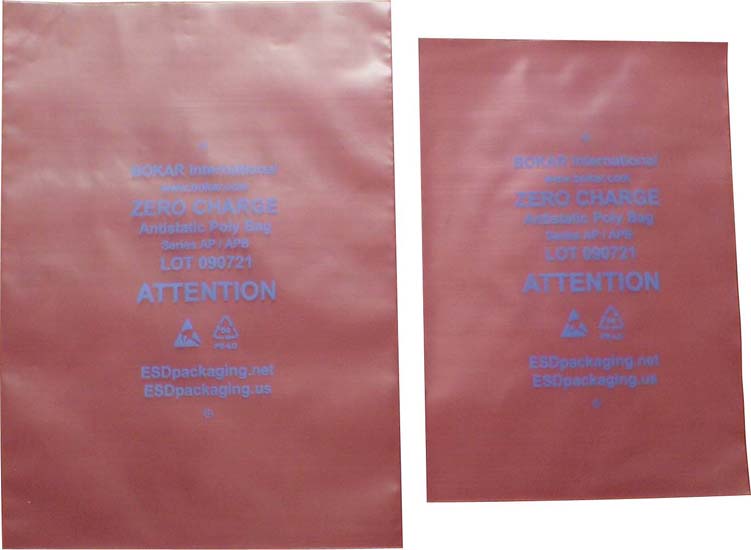

Zero Charge™ Static Dissipative Poly Bags

These extremely economical antistatic protective bags are perfect for less demanding applications.

Pink Poly Bags are made from transparent ammine-free polyethylene, ROH’s Complaint to Directive 2002/95/EC, static dissipative and clean room safe. Retain dissipative properties even when cleaned in ultrasonic cleaner.

Type: Thickness
AP 1.6 mils 0.04 mm Economy
AP2 2 mils 0.05 mm
AP4 4 mils 0.1 mm
AP6 6 mils 0.15 mm

Specifications:

  • Light transmission 95%.
  • Surface Resistance <6.0x1010.
  • Static Decay < 0.05sec as per MIL-B-81705C Type II.
  • Guaranteed Shelf Life up to 5 years when stored in indoor storage.

Made by the Factory as you need them

Bags are made in EC and marked sizes are stocked in the European Warehouse in Poland

Delivery from stock: Next day after receipt of pre-payment

No stock orders: 2 weeks after receipt of pre-payment

No direct sales in the countries where we have stocking distributors

Static Dissipative Poly Bags

Static Dissipative Poly Bags

How to order

Thickness
1.6 mils = 0.04mm
Thickness
2 mils = 0.05mm
Thickness
4 mils = 0.1mm
Thickness
6 mils = 0.15mm
Size
[inch]
Size
[cm]
Part Number Part Number Part Number Part Number X Y X Y
AP-2x3 AP2-2x3 AP4-2x3 AP6-2x3 2 3 5,1 7,6
AP-2x4 AP2-2x4 AP4-2x4 AP6-2x4 2 4 5,1 10,2
AP-2x6 AP2-2x6 AP4-2x6 AP6-2x6 2 6 5,1 15,2
AP-3x4 AP2-3x4 AP4-3x4 AP6-3x4 3 4 7,6 10,2
AP-3x5 AP2-3x5 AP4-3x5 AP6-3x5 3 5 7,6 12,7
AP-4x4 AP2-4x4 AP4-4x4 AP6-4x4 4 4 10,2 10,2
AP-4x6 AP2-4x6 AP4-4x6 AP6-4x6 4 6 10,2 15,2
AP-4x8 AP2-4x8 AP4-4x8 AP6-4x8 4 8 10,2 20,3
AP-4x12 AP2-4x12 AP4-4x12 AP6-4x12 4 12 10,2 30,5
AP-5x6 AP2-5x6 AP4-5x6 AP6-5x6 5 6 12,7 15,2
AP-5x7 AP2-5x7 AP4-5x7 AP6-5x7 5 7 12,7 17,8
AP-5x8 AP2-5x8 AP4-5x8 AP6-5x8 5 8 12,7 20,3
AP-5x10 AP2-5x10 AP4-5x10 AP6-5x10 5 10 12,7 25,4
AP-6x8 AP2-6x8 AP4-6x8 AP6-6x8 6 8 15,2 20,3
AP-6x10 AP2-6x10 AP4-6x10 AP6-6x10 6 10 15,2 25,4
AP-6x12 AP2-6x12 AP4-6x12 AP6-6x12 6 12 15,2 30,5
AP-6x14 AP2-6x14 AP4-6x14 AP6-6x14 6 14 15,2 35,6
AP-6x16 AP2-6x16 AP4-6x16 AP6-6x16 6 16 15,2 40,6
AP-6x18 AP2-6x18 AP4-6x18 AP6-6x18 6 18 15,2 45,7
AP-6x24 AP2-6x24 AP4-6x24 AP6-6x24 6 24 15,2 61
AP-7x30 AP2-7x30 AP4-7x30 AP6-7x30 7 30 17,8 76,2
AP-7x8 AP2-7x8 AP4-7x8 AP6-7x8 7 8 17,8 20,3
AP-7x10 AP2-7x10 AP4-7x10 AP6-7x10 7 10 17,8 25,4
AP-7x12 AP2-7x12 AP4-7x12 AP6-7x12 7 12 17,8 30,5
AP-7x15 AP2-7x15 AP4-7x15 AP6-7x15 7 15 17,8 38,1
AP-7x18 AP2-7x18 AP4-7x18 AP6-7x18 7 18 17,8 45,7
AP-8x8 AP2-8x8 AP4-8x8 AP6-8x8 8 8 20,3 20,3
AP-8x10 AP2-8x10 AP4-8x10 AP6-8x10 8 10 20,3 25,4
AP-8x12 AP2-8x12 AP4-8x12 AP6-8x12 8 12 20,3 30,5
AP-8x16 AP2-8x16 AP4-8x16 AP6-8x16 8 16 20,3 40,6
AP-8x18 AP2-8x18 AP4-8x18 AP6-8x18 8 18 20,3 45,7
AP-8x24 AP2-8x24 AP4-8x24 AP6-8x24 8 24 20,3 61
AP-8x30 AP2-8x30 AP4-8x30 AP6-8x30 8 30 20,3 76,2
AP-10x12 AP2-10x12 AP4-10x12 AP6-10x12 10 12 25,4 30,5
AP-10x14 AP2-10x14 AP4-10x14 AP6-10x14 10 14 25,4 35,6
AP-10x20 AP2-10x20 AP4-10x20 AP6-10x20 10 20 25,4 50,8
AP-10x24 AP2-10x24 AP4-10x24 AP6-10x24 10 24 25,4 61
AP-10x30 AP2-10x30 AP4-10x30 AP6-10x30 10 30 25,4 76,2
AP-12x16 AP2-12x16 AP4-12x16 AP6-12x16 12 16 30,5 40,6
AP-12x18 AP2-12x18 AP4-12x18 AP6-12x18 12 18 30,5 45,7
AP-15x18 AP2-15x18 AP4-15x18 AP6-15x18 15 18 38,1 45,7
AP-16x18 AP2-16x18 AP4-16x18 AP6-16x18 16 18 40,6 45,7
AP-16x20 AP2-16x20 AP4-16x20 AP6-16x20 16 20 40,6 50,8
AP-16x24 AP2-16x24 AP4-16x24 AP6-16x24 16 24 40,6 61
AP-18x24 AP2-18x24 AP4-18x24 AP6-18x24 18 24 45,7 61
AP-18x30 AP2-18x30 AP4-18x30 AP6-18x30 18 30 45,7 76,2
AP-20x24 AP2-20x24 AP4-20x24 AP6-20x24 20 24 50,8 61
AP-22x24 AP2-22x24 AP4-22x24 AP6-22x24 22 24 55,9 61
AP-24x24 AP2-24x24 AP4-24x24 AP6-24x24 24 24 61 61
AP-24x30 AP2-24x30 AP4-24x30 AP6-24x30 24 30 61 76,2
AP-Custom AP2-Custom AP4-Custom AP6-Custom Custom size
STOCK ITEMS STOCK ITEMS





Pink Foam in sheets and rols available uppon request

Standard sheets : 2m x 1m Standard Thickness: 0.8, 1, 1.5, 2, 3, 5, and 10 mm

Thick sheets: Thickness: 20mm, 40mm, 50mm
