Goot Brand Solder Pots
  POT-11C, POT-21C, POT-22C CE Mark
  • Enable to have temperature setting freely within a range of approximately 270~530°C.
  • Noise free temperature control circuit incorporates zero-crossing switching system.
  • LED pilot lamp during heater in operation.
  • Adopted new designed heater enables long lasting.
  • Used anti-corrosion and durable solder bath.
  • Built-in stainless steel waste solder tray for excellent convenience.
  • Applicable wide range of pre-soldering work. (e.g. Urethane wire, Large terminals, connector, big lead wires.).
  • Optimum working temperature within approx. 260 - 520°C.
  • Diameter 36mm inner bath enables pre-soldering of urethane wire, large terminal and etc.

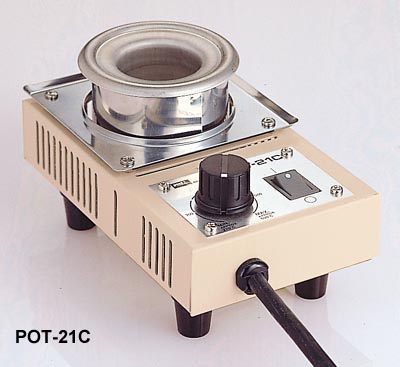

POT-21C

PERFECT SOLDERING WORK
WITHIN ±1.25% OF SET TEMPERATURE
POT-11C POT-22C POT-23C
POT-11C POT-21C POT-22C POT-23C
For preparational solder-dipping of lead wires etc. Suitable for preparational solder-dipping of large terminals, urethane wires, connectors, and big lead wires. Fitted with specially processed lead-free applicable solder bath. Suitable for preparatory soldering of relatively large parts. (PAT.P) Stable solder composition is maintainable because the elements of the bath do not contaminate the solder, compared to metallic baths.
Technical Specifications
Model POT-11C POT-21C POT-22C POT-23C
Voltage 110, 120, 130, 220, 240V AC 50/60Hz
Power Consumption 90W 130W
Unit Dimensions 90x150x90mm 90x150x95mm
Solder Bath Material Stainless Steel Stainless Steel Stainless Steel
(Specially processed)		 Ceramic
Bath Temperature 260-520°C 270-530°C
Melting Time Approx. 10 mins. (at max. setting)
Solder Capacity 100g 300g
Internal Pot Dimensions φ25x25(H) mm φ36x36(H) mm φ31x39(H) mm
Weight 670g 720g
Power Cord 1.5m (3 core cable) ground plug
Replacement Parts
POT-11C Heater POT-11CH
POT-21C Heater POT-21CH
POT-22C Heater POT-22CH
POT-11C Batch POT11CP
POT-21C Batch POT21CP
POT-22C Batch POT22CP
POT-23C Batch POT23CP
  POT-100C/200C/350C CE Mark

Durable stainless made Baths. Quick response to match the setting temperature with P.I.D. control circuit (POT-100C, 200C, 350C). Built-in Alarm Lamps for temperature abnormality and open circuit of looped heater elements (POT-100C, 200C, 350C).

  • Dual digital display provides set and measured temperature values.
  • PID control system minimizes deviation between solder temperature and set temperature values.
  • Excellent accuracy of set and measured values  Minimal tolerance is ±{(displayed value x 1.25%) + 1oC}
  • Built-in warning indicator to detect beyond the upper and lower limit temperature range.
  • Durable sheathed heater. (POT-350C)
  • Stainless steel solder pot with superior durability and corrosion resistance.
  • Separated structure of solder pot and heater allow for simple replacement of each part. (POT-100C, POT-200C)
  • Replacement parts: Heater, Solder Pot, Sensor and Heat insulation board.

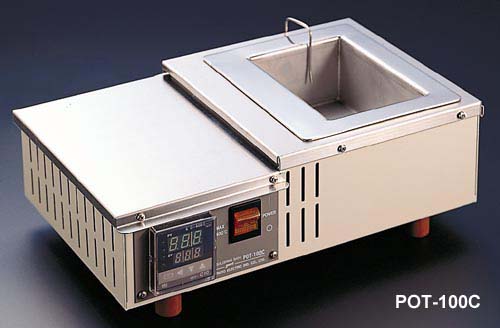

POT-100C

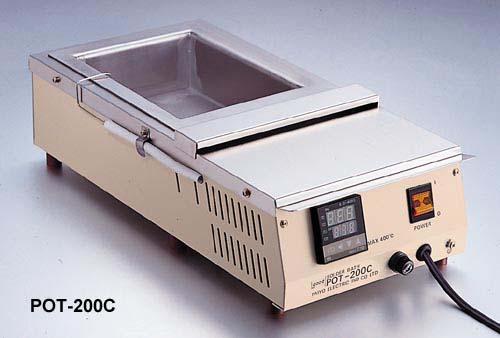

POT-200C

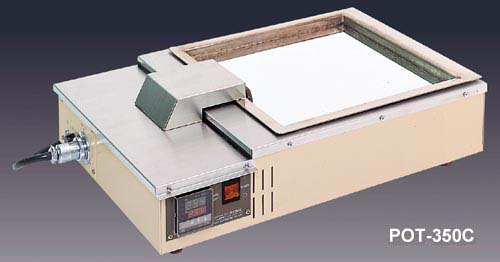

POT-350C

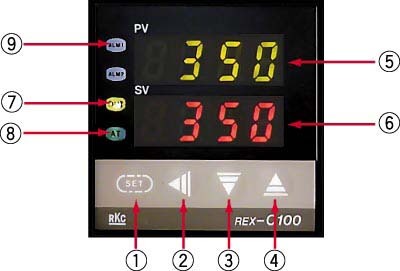

Parts names and functions of control panel (Common to all models)

1. SET key

  • Registration of set value

  • Changing modes and parameters

  • Changing PV. SV. display mode or setting mode of parameters

2. SHIFT key

  • Changing set value, move the cursor to a digit to be changed.

3. DECREMENT key

  • For decreasing value when changing set value

4. INCREMENT key

  • For increasing value when changing set value.

5. Measured value (PV) display unit [Green]

  • Display measured value (PV)

  • Display parameter symbol at parameter setting mode

6. Set value (SV) display unit [Orange]

  • Display set value (SV)

  • Indicate set value of parameter symbol displayed on (PV) display unit at parameter setting mode.

7. Control output (OUT) Lamp [Green]

  • Lights up when control output is ON

8. Auto-tuning (AT) Lamp [Green]

  • Blinks in auto tuning mode

9. Alarm (ALM) Lamp [Red]

  • Lights up when alarm is ON
Technical Specifications
MODEL POT-100C POT-200C POT-350C
Voltage 110-130V AC, 220-240V AC 110-130V AC, 220-240V AC  220-240V AC
Power Consumption 440W 720W 2.5kW
Max. Temperature 350°C 400°C 350°C
Control System PID Control

Dimensions / mm
Dimensions / inch

220(L) x 350(W) x 127(H)
8.7(L) x 13.8(W) x 5(H)

210(L) x 446(W) x 127(H)
8.3(L) x 17.5(W) x 5(H)

568(L) x 370(W) x 160(H)
22.4(L) x 14.6(W) x 6.3(H)

Solder Pot Dimension / mm
Solder Pot Dimension / inch

91(L) x 135(W) x 60(H)
3.6(L) x 5.3(W) x 2.4 (H)

130(L) x 180(W) x 60(H)
5.1(L) x 7(W) x 2.4(H)

300(L) x 300(W) x 82(H)
11.8(L) x 11.8(W) x 3.2(H)
Weight About 4kg (8.8 lb) About 5.5kg (12.1 lb) About 13kg (28.6 lb)
Max. Solder Volume About 5.5kg (12.1 lb) About 9.5kg (21 lb) About 50kg (110 lb)
Cover Stainless Steel Sheet
Solder Pot Stainless Steel
Set Accuracy ±[(1.25% of display temperature) + 1oC]
Power Cord 3 conductors with grounded plug 3 conductors without plug
Replacement Parts
POT-100C Heater POT-100CH
POT-200C Heater POT-200CHS
POT-350C Heater POT-350CH
Ground Plug Adapter P-10
Solder Bars, Chunks and Pure Wire
  • SN100C is a lead-free solder alloy developed by Nihon Superior in Japan that is comprised of tin, copper, and a small amount of nickel
  • SAC305 is a lead-free alloy that contains 96.5 % tin, 3% silver, and 0.5% copper.
  • Sn63/Pb37 Solder
  P.C.B. Holder For Dipping

PCB-1

  • Hold P.C.B. Firmly.
  • Best matched to GOOT SLM-1 SOLDERING MASTER.

Available solder bar or ingot for soldering bath, inquire to regional distributor.

PCB-1
  |  Print page



Order Now Part Number Description Price
USD
Low Cost Professional Solder Pots
  POT-11C/12 (Replacement Parts Only) Solder Pot, Dim. /mm dia.25x25 , 120V Get quote
POT-21C /12 Solder Pot, Dim. /mm dia.36x36 , 120V
Qty1 +
Price$129.13
POT-21C /22 Solder Pot, Dim. /mm dia.36x36 , 220V
Qty1 +
Price$129.99
  POT-21C /22-CE Solder Pot, Dim. /mm dia.36x36 , 220V, CE Get quote
POT-200C /12 Solder Bath, Dim. /mm 130X180X60 , 120V
Qty1 +
Price$1,450.99
POT-200C /22-CE Solder Bath, Dim. /mm 130X180X60 , 220V, CE
Qty1 +
Price$1,450.99
Bar Solder
B-SAC-1b SAC305 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 1 bar, 2.5 lb
Qty1 +
Price$69.90
B-SAC-10b SAC305 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 10 bars, 25 lb
Qty1 +
Price$669.90
B-SN100-0.5b SN-100 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 0.5 bar, 1.25 lb
Qty1 +
Price$21.90
Replacement Parts
POT-21CH Replacement Heater for POT-21C, POT-22C, POT-23C
Qty1 +
Price$44.90
POT-21CP Stainless steel solder pot, R/part for POT-21C
Qty1 +
Price$29.99
POT-21PCB Replacement PCB for POT-21C
Qty1 +
Price$34.90
Optional Equipment
PCB-1 PCB Hanger for dip soldering
Qty1 +
Price$19.90

Get quote - Special Order. Please e-mail or fax at 570.842.4290 for pricing.
