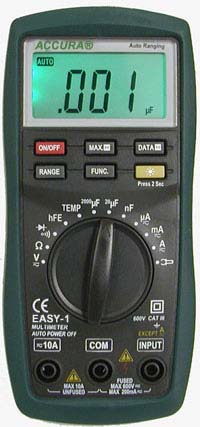

ACCURA™ EASY-1 Auto ranging Digital MultiMeter with "K" thermocouple and battery tester
  • This professional and portable MultiMerer is easy to read with its clear backlit LCD.
  • Has Thermocouple "K" input built-in to measure temperature.
  • Includes convenient battery tester.
  • Simple operation of the selector switch makes taking measurements convenient and fast.
  • Overload protection and low battery indication are provided.
  • This meter is ideal for use in the field, workshop, school, hobby and home applications.
  • Selectable auto range and manual range.
  • Automatic Power off.
  • Features data hold and Maximum value hold.
  • The meter may be set to display in engineering units.
  • Has excellent quality/price ratio and was designed as a basic must for every technician or electrician.

Technical Specifications

DC Voltage
Range Resolution Accuracy
200mV 0.1mV ±0.70% of rdg ± 3 digits
2V 1mV
20V 0.01V
200V 0.1V
600V 1V ±0.8% of rdg ±3 digits
Input Impedance: 10MΩ
AC Voltage
Range Resolution Accuracy
200mV 0.1mV ±0.80% of rdg ±5 digits
2V 1mV
20V 0.01V
200V 0.1V
6000V 1V ±1.00% of rdg ±3 digits
Input Impedance: 10MΩ, Frequency Range: 40 to 4000Hz, Calibrated in RMS of since wave
Resistance
200Ω 0.1Ω ±1.0% of rdg ±3 digits
2KΩ 1Ω
20KΩ 10Ω
200KΩ 0.1KΩ
2MΩ 1KΩ
20MΩ 10KΩ ±1.00% of rdg ±5 digits
Maximum open Circuit Voltage: 3.0V, Overload Protection:250V dc RMS, AC for all range
DC Current
Range Resolution Accuracy
200uA 0.1 uA ±1.20% of rdg ±3 digits
2000uA 1uA
20mA 0.01mA ±1.2% of rdg ±8 digits
200mA 0.1mA
2.00A 0.001A ±2.00% of rdg ±8 digits
10.00A 0.01A
Over load Protection: F 15A/250 fused for 10A
AC Current
Range Resolution Accuracy
200uAmA 0.1 uA ±1.50% of rdg ±5 digits
2,000uA 1uA
20.00mA 0.01mA
200mA 0.1mA
2.00A 0.001A ±3.00% of rdg ±8 digits
10.00A 0.01A
Over load Protection: F 15A/250 fused for 10A, Frequency Range 40 to 400Hz
Battery
Range/ Load current Resolution Function
1.5V/50mA 0.01V Show the approx, voltage of battery
3.0V/30mA 0.01V
9.0V/12mA 0.01V
Audible Continuity
Buzzer Built in buzzer will sound if resistance is lower than 30 Ω
Diode Resolution: 1mV Test Current:25uA Open Circuit Voltage:3.0V
Transistor hFE: 1 to 1000 Base Current: 10uA Vce: 3.0 V
  |  Print page



Order Now Part Number Description Price
USD
EASY-1 Auto ranging Digital MultiMeter with "K" thermocouple and battery tester
Qty1 +
Price$39.90
