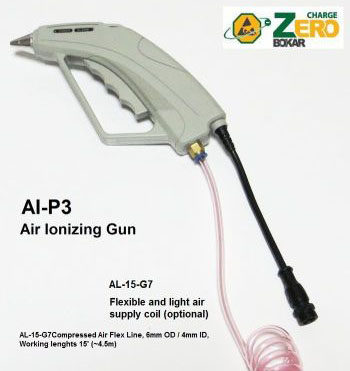

AI-P3 IONIZING AIR GUN

Features & Advantages

• Modern design, ergonomic thought-out
• Has built-in piezoelectric transformer (no high voltage cable attached to the gun for increased safety
• Good decay time and balance
• Failure indicator
• Special tungsten alloy ion needle, long lasting and abrasion resistant
• Aviation type power plug to connect the power supply (insures good, reliable connection during the gun constant movements).

Applications

Cleaning the areas like precision electronic production, electronic device assembly site, biological & pharmaceutical manufacturing areas, printing environments and many others.

Specifications

• Patented, automatic alarm function
• Supply Power to the gun: DC24V /~ 500ma
• Power input 100 – 240V AC
• Maximum Operating Current: 0.15A
• Air pressure : 0.6 MPA
• Effective Coverage: 300~ 900mm
• Ion Balance: ± 15V
• Decay time: less than 1.0 sec (1000V decrease to 100V at 300mm distance of the object from the gun)
• Test Condition: 25°C , humidity 55% , measure up with the EOS/ ESD S3.1-2006 standard
• Operating Conditions: 0C~ 50°C (temperature) , 20% ~ 85% (relative humidity)
• Ozone Concentration: 0.002PPM
• Air connector spec: Diameter Ø6mm
• Color: Light grey
• Dimensions: W127mm×H198mm×D28mm
• Housing Material: Fireproof ABS
• Net Weight: 250± 5g

Packing list

• IONIZING AIR GUN 1 pc
• Power supply 1 pc
• Manual 1 pc
• Factory QC test sheet 1 pc
• Warranty Card 1 pc

Safety

• Unsuitable for the flammable environment
• Keep out the humidity and water
• The pressurized air must be clean and dry
• Cut the power supply before you do cleaning and maintenance. if cleaning the air gun with alcohol or other solvent, wait until the gun fully dries before is connected to the power source and used.
• Do not open and repair this high voltage device by yourself if you are not a qualified technician.

Calibration

AI-P3 ionizing air gun is very reliable.

To calibrate and/or verify the calibration the charge plate analyzer is used to measure decay times at various distances.

Suggested check interval: once per year.

We have calibration lab and can calibrate the guns for our clients and issue Calibration Certificates including voltage decay printouts from Trek Charge Plate Analyzer.
