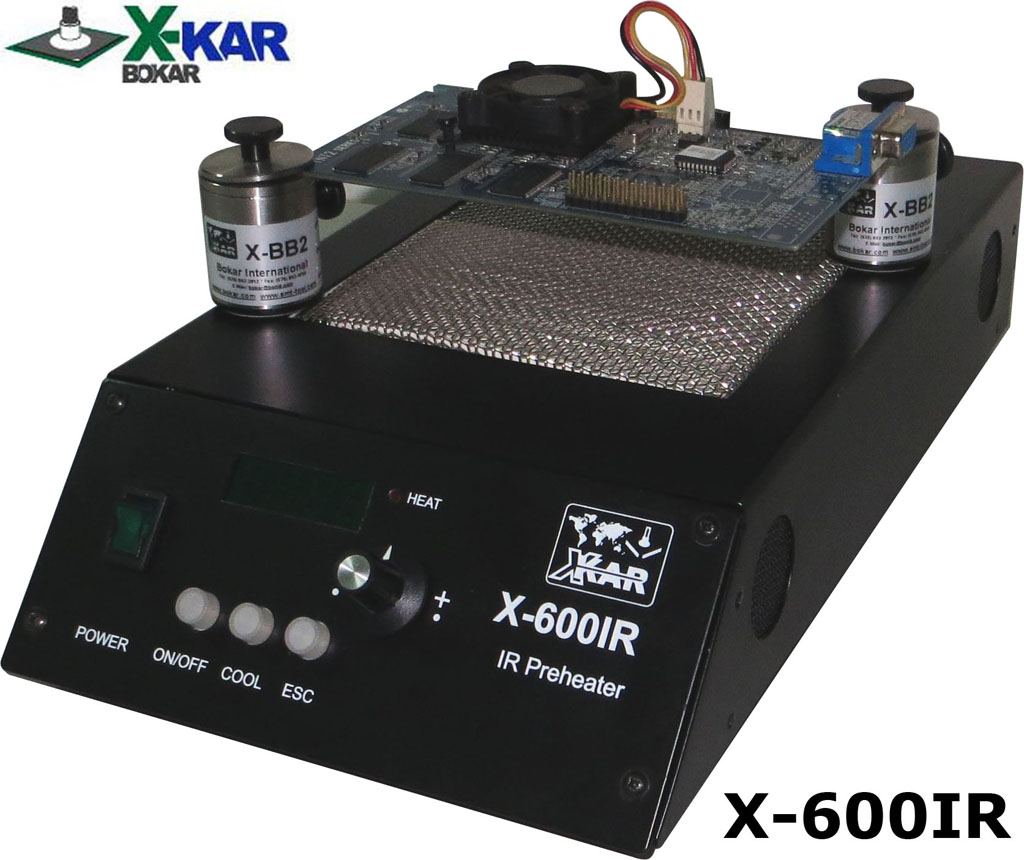

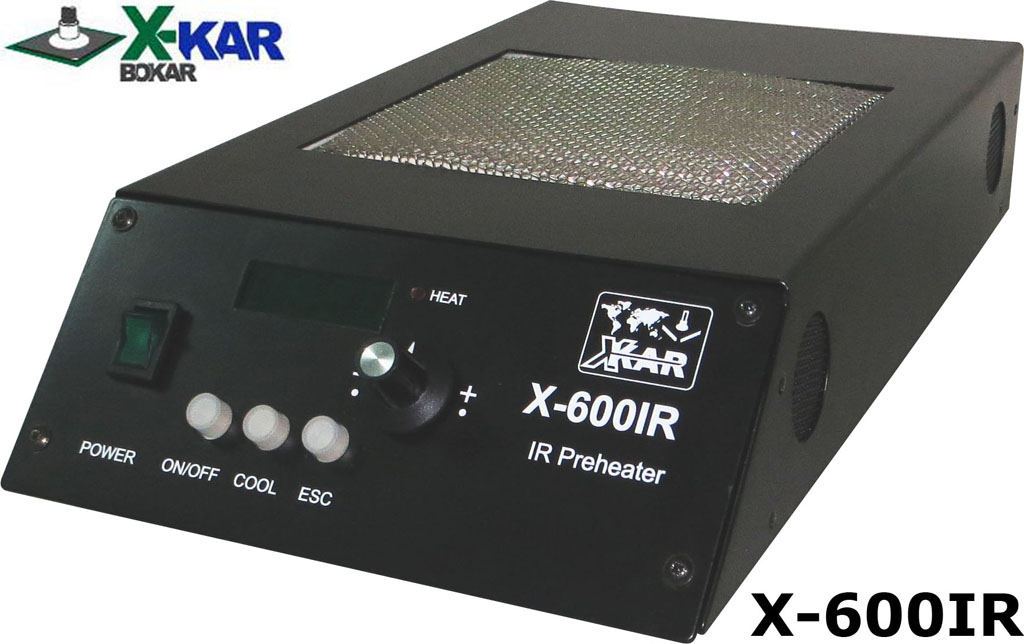

X-600IR Medium Size Digital, soft IR PCB pre-heater
The X-600IR PCB pre-heater has user adjustable off-set to pre-set reasonably accurate preheat temperature for reworked PCB. It was designed to reduce the workspace required for SMT Rework and Repair. This design emphasizes on the appropriate process control for Rework and Repair. Pre-heater Unit is microprocessor controlled to maintain accuracy and to extend heating element life.
  |
|
 < |
 |
| X-600IR Medium Size Digital , soft IR PCB Pre-heater | |
System Features:
- Microprocessor controlled.
- High power, medium area pre-heat surface.
- ESD safe.
- Close loop temperature PID control maintaining set temperatures with high accuracy.
- LED display: 4x7 segments.
System includes:
- X-600IR Unit System
- Manual and Warranty Card
Available models:
- X-600IR/230 - Small Digital Convection PCB Pre-heater, Supply Voltage 207-242V.
- X-600IR/115 - Small Digital Convection PCB Pre-heater, Supply Voltage 104-127V.
Technical Specifications:
| MODEL | X-600IR/115 | X-600IR/230 |
|---|---|---|
| Input Voltages | 110-120V AC | 220-240V AC |
| Power Consumption | Max. 660 W | Max. 620 W |
| System dimensions (W x H x D) | 7.3" x 12.6" x 2.8" (186 x 320 x 70 mm) |
|
| Packaged weight | 9.3 lbs. (4,2 kg) | |
| Pre-heater Section | ||
| Max. Power | 650W | 600 W |
| Preheat Temperature measured on a PCB | 140-302 °F (60 -150 °C) | |
| Heating area dimensions | 5.2" x 5.2" (132 x 132 mm) | |
| Preheat area | More than 5" square | |
