Floor Mats

Superior Floor Mat with cloth backing

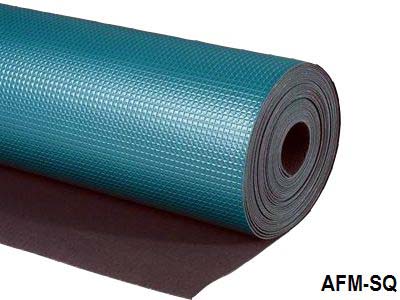

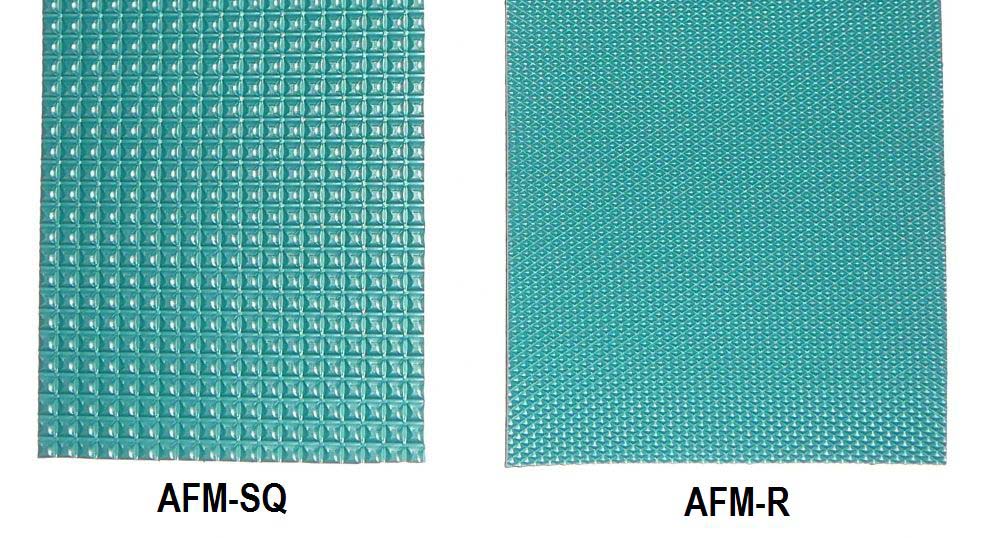

AFM-SQ AFM-SQ Superior Floor Mat with cloth backing. Suitable for heavy loads. 32.8’ (10m) x 4’(1.2m) x 2mm.
AFM-SQ & AFM-R Superior Floor Mat with cloth backing Floor Mat Set. Includes: AFM-R Size 4'x 5' (1,2 x 1,5 m) Green, A-SNAP - 10 mm snap and AGW-10FM Low Profile Grounding Wire

StatMat-F 4' x 32.8' Floor Mat
2-Layer Rubber, Heat and Chemical Resistant

StatMat-T
StatMat-T

Features:

  • Temperature resistant. Will not get damaged by hot solder or soldering irons.
  • Offer excellent resistance to oil, grease and most of common solvents.
  • Useful for semiconductor, computer & electronic parts factories, electronic assembly, and chemical laboratories.
  • Both have mat finish (glossy available through special orders).
  • Will not peel, chip, or curl.
  • Ground cords and snaps are included with the kits only.
  • Materials
    • Top layer: static dissipative NBR
    • Bottom layer: conductive NBR.
  • Color:
    • Top layer: G=Grey, B=Light Blue, Gr-Green
    • Bottom layer: Black
Technical Specification
Thickness 0.120" (3mm)
Width 4' (1.22m)
Length 32.8' (10m)
Hardness (KSM6518-19) Top layer - 65
Bottom layer - 66
Tensile Strength (LB/SQ inch) Top layer - 1548
Bottom layer - 1820
Elongation (%) Top layer - 395
Bottom layer - 285
Surface Resistivity (ASTM-D257) Top layer - 107-8 Ohm/Sq
Bottom layer - 104-5 Ohm/Sq
Resistance to ground Less than 107 Ohm/Sq
Chemical Resistance Solvent, Acidic, Alkali, Oil, Aromatics
Non Chemical Resistance D.O.P Ketone
5KV decay time < 0.01sec.

Floor mat set : AFS-a' x b'
2-Layer Rubber, Heat and Chemical Resistant

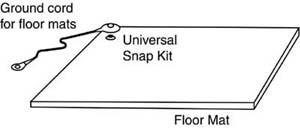

The set includes:

  • StatMat-F Size a' x b'
  • A-UniSnap - Universal Snap Kit 10 mm,
  • AG-FMF - Ground cord for floor mats, black 10ft, female (to fit male 10 mm snap on the mat)
Select part number from the following table:
Size Part Number
Grey Blue Green
4' x 32.8'
(1,22 x 10m)		 StatMat-F-G StatMat-F-B StatMat-F-Gr
4' x 5'
(1,2 x 1,5 m)		 AFS-4x5-G AFS-4x5-B AFS-4x5-Gr
4' x 6'
(1,2 x 1,8 m)		 AFS-4x6-G AFS-4x6-B AFS-4x6-Gr
4' x 8'
(1,2 x 2,4 m)		 AFS-4x8-G AFS-4x8-B AFS-4x8-Gr
  |  Print page



Order Now Part Number Description Price
USD
Antistatic Floor Mat Rolls
AFM-SQ Superior True Floor Mat with cloth backing. Will not streach or roll-up on the edges. Suitable for heavy loads. 32.8’ (10m) x 4’(1.2m) x 2mm
Qty1 +
Price$449.90
A-STAT-MAT-F/1,2/DG Premium Static Dissipative, dark gray, two layer rubber floor mat – Premium.
Qty1 - 56 +
Price$469.00$449.00
A-STAT-MAT-F/1,2/G Premium Static Dissipative, gray, two layer rubber floor mat – Premium
Qty1 - 56 +
Price$469.00$449.00
StatMat-GU 4' x 32.8' x 0.12" - G Mat-roll roll 4' (1.22m) x 32.8' (10m) x 0.12"(3mm). General purpose, two layer, heavy duty mat for use on tables and shalves where heavy objects are worked-on. Good on floors where there is no cart or chairs traffic. Color: G=Gray
Qty1 - 45 +
Price$449.00$439.00
StatMat-GU 4' x 32.8' x 0.12" - B Mat-roll roll 4' (1.22m) x 32.8' (10m) x 0.12"(3mm). General purpose, two layer, heavy duty mat for use on tables and shalves where heavy objects are worked-on. Good on floors where there is no cart or chairs traffic. Color: B-Blue
Qty1 - 45 +
Price$449.00$439.00
StatMat-GU 4' x 32.8' x 0.12" - Gr Mat-roll roll 4' (1.22m) x 32.8' (10m) x 0.12"(3mm). General purpose, two layer, heavy duty mat for use on tables and shalves where heavy objects are worked-on. Good on floors where there is no cart or chairs traffic. Color: Gr-Green
Qty1 - 45 +
Price$449.00$439.00
Antistatic Mat Sets
AFS-4x5-AFM-R Superior True Floor Mat with cloth backing. Floor Mat Set Includes: AFM-R Size 4'x 5' (1,2 x 1,5 m) Green, A-SNAP - 10 mm snap and AGW-10FM Low Profile Grounding Wire. Please get a quote for other size of the Floor Mat Set. We will quote in less than 24h
Qty1 +
Price$149.90
AFS-4x5-G Floor Mat Set. Includes: StatMat-F Size 4'x 5' (1,2 x 1,5 m) Color Grey, A-Snap - 10 mm snap and AG-15FM Low Profile Grounding Wire.
Qty1 - 45 +
Price$159.90$139.90
AFS-4x5-DG Floor Mat Set. Includes: StatMat-F Size 4'x 5' (1,2 x 1,5 m) Dark Gray, A-Snap - 10 mm snap and AGW-10FM Low Profile Grounding Wire.
Qty1 - 45 +
Price$159.90$139.90
AFS-4x5-Gr Floor Mat Set. Includes: StatMat-F Size 4'x 5' (1,2 x 1,5 m) Color Green, A-Uni Snap - 10 mm snap and AG-15FM Low Profile Grounding Wire.
Qty1 - 45 +
Price$149.90$129.90
AFS-4x6-G Floor Mat Set. Includes: StatMat-F Size 4'x 6' (1,2 x 1,8 m) Color Grey, A-Snap - 10 mm snap and AG-15FM Low Profile Grounding Wire.
Qty1 - 45 +
Price$179.90$159.90
AFS-4x6-DG Floor Mat Set. Includes: StatMat-F Size 4'x 6' (1,2 x 1,8 m) Dark Gray, A-Snap - 10 mm snap and AGW-10FM Low Profile Grounding Wire.
Qty1 - 45 +
Price$179.90$159.90
AFS-4x6-Gr Floor Mat Set. Includes: StatMat-F Size 4'x 6' (1,2 x 1,8 m) Color Green, A-Uni Snap - 10 mm snap and AG-15FM Low Profile Grounding Wire.
Qty1 - 45 +
Price$169.90$149.90
AFS-4x8-Gr Floor Mat Set. Includes: StatMat-F Size 4'x 8' (1,2 x 2,4 m) Color Green, A-Uni Snap - 10 mm snap and AG-15FM Low Profile Grounding Wire.
Qty1 - 45 +
Price$199.90$179.90
  AFS-a' x b' x Y Y=Color G=Grey, DG=Dark Gray, Gr=Green Floor Mat Set. Includes: StatMat-F Size a' x b' x Y , A-Uni Snap - 10 mm snap and AG-15FM Low Profile Grounding Wire. Get quote

Get quote - Special Order. Please e-mail or fax at 570.842.4290 for pricing.
