LEAD-FREE SOLDER BATH

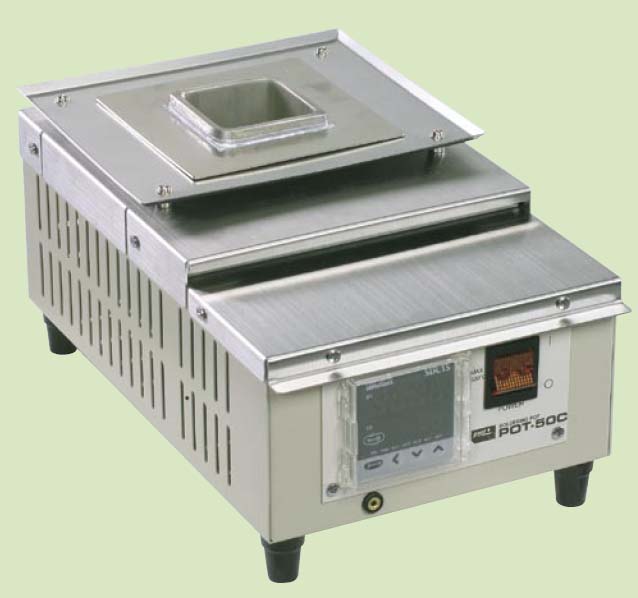

POT-50C / POT-51C SQUARE SOLDER BATH

Accurate PID temperature control. User defined bath temperature regulation by switching to sensor feedback ON/OFF control.
Dual Digital display shows set temperature and measured temperature at the same time. Changing the temperature settings is easy!
Bath size (50X50mm) perfect for transformer leads preparatory solder and solder application dipping of small PCBs.
Temperature setting range from ambient temperature to 530°C
Computer assisted settings management and temperature data storage. (Software Optional)
Solder waste tray can be placed at three locations. Comes with spatula for removing waste solder.
Fitted with extra long life ceramic heater.
Tamper-proof and reliable temperature management through Keypad lock function. œ Easy maintenance! Changing the solder bath or heater is simple.
Lowest possible housing temperature for user safety.

Model number	POT-50C	POT-51C
Input Voltage	110—130, 220—240V AC 50/60Hz
Power Consumption	470-610W, 370-430W (When Stabilized)
Inrush Current	25A, 11A (at solder temp. 25°C)
Solder Bath Temperature	Ambient Temp.—530°C
Unit Dimensions	174(W) X 285(D) X 142(H)mm
Solder Bath Dimensions (internal)	50(W) X 50(D) X 50(H)mm
Weight	Approx. 3kg
Max Solder Volume	Approx. 850g
Solder Bath Material	Stainless Steel SUS316	Ceramic
Power Cord	Length1.5m (3 core cable) with ground plug

SN100C is a lead-free solder alloy developed by Nihon Superior in Japan that is comprised of tin, copper, and a small amount of nickel
SAC305 is a lead-free alloy that contains 96.5 % tin, 3% silver, and 0.5% copper.
Sn63/Pb37 Solder

Part Number

Description

Price
USD

Lead-Free Solder Bath

POT-50C /12

Lead-Free Solder Bath , 110-120V AC

Qty	1 +
Price	$649.90

POT-50C /22

Lead-Free Solder Bath , 220-240V AC

Qty	1 +
Price	$649.90

POT-51C /12

Lead-Free Solder Bath, 110-120V AC

Qty	1 +
Price	$749.00

POT-51C /22

Lead-Free Solder Bath, 220-240V AC

Qty	1 +
Price	$749.00

Bar Solder

B-SAC-1b

SAC305 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 1 bar, 2.5 lb

Qty	1 +
Price	$69.90

B-SAC-10b

SAC305 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 10 bars, 25 lb

Qty	1 +
Price	$669.90

B-SN100-0.5b

SN-100 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 0.5 bar, 1.25 lb

Qty	1 +
Price	$21.90
