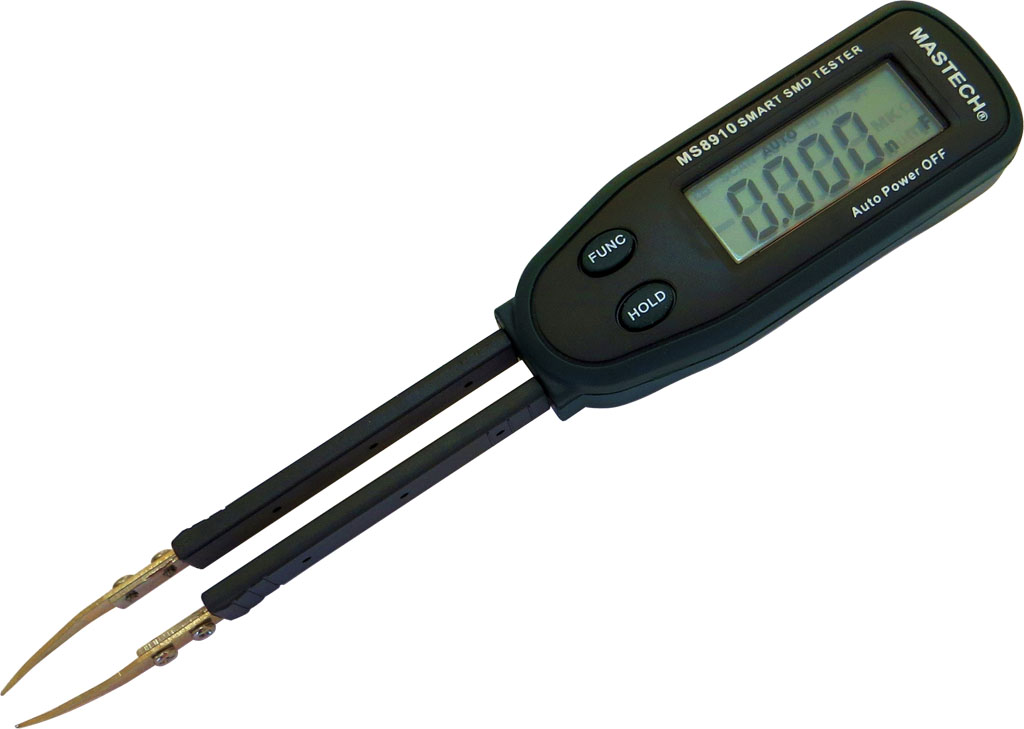

SMT-Tweezers MS8910 Low Cost Bomir/Mastech RC Tester
MS8910
DIGITAL SMT COMPONENTS RC Meter – Convenient One hand operated Tweezers
The Tester measures SMD components (Resistance & Capacitance) with high accuracy. Digital readout with large numbers. Handy and inexpensive tool helping in electronics production, quality control, service and prototyping.
Precise tips are made of non-magnetic steel and are able to pick up and reliably contact even smallest SMD components, or take measurements from the devices already mounted on a board.
The Tweezers can also be used to test conventional components.
Features:
- LCD digital display
- Auto Scanning and Auto Ranging
- Practical one hand measurement allowing use of other hand to hold object containing SMD devices.
- Ranges:
- Resistance: 300/3K/30K/3M/30M OHM; Accuracy: ± (1% + 3d)
- Capacitance: 3nF/30nF/300nF/3µF/30µF/300µF; Accuracy: ± (2% + 3d)
- Continuity Check. When Resistance is less than 30 Ohm, the Buzzer will sound.
- Diode Check
- Auto Shut Off
- Data Hold
- Powered: by 3V Lithium Battery
- Low battery indicator
The ordered item includes:
- Mastech/Bomir RC tester
- 3V battery
- Extra set of probes
- Convenient storage case
- User Manual
Specifications:
| Resistance | ||||
| Range (Ω) | Resolution (Ω) | Accuracy | ||
| 300 | 0.1 | ±(1.0% of rdg + 2 digits) | ||
| 3K | 1 | |||
| 30K | 10 | |||
| 300K | 100 | |||
| 3M | 1K | |||
| 30M | 10K | ±(1.2% of rdg + 3 digits) | ||
| Capacitance | ||||
| Range (F) | Resolution (F) | Accuracy | ||
| 3n | 1p | ±(2.5% of rdg + 3 digits) | ||
| 30n | 10p | |||
| 300n | 100p | |||
| 3µ | 1n | |||
| 30µ | 10n | |||
| 300µ | 100n | ±(3.0% of rdg + 3 digits) | ||
| 3m | 1µ | |||
| 30m | 10µ | |||
| Diode Test | ||||
| Range | Description | Test conditions | ||
| Continuity | The buzzer will sound if the resistance is less than 30 ohms | |||
| Diode | Display reads approximate forward voltage of the diode | Forward DC current: approximately 2 mA Open DC voltage: approximate 2.8 V |
||
 |
Part Number | Description | Price USD |
||||
|---|---|---|---|---|---|---|---|
| MS8910 | SMT Tweezers Low Cost Bomir/Mastech RC Tester. Excellent very low cost tool for sorting AND IDENTIFYING SMD COMPONENTS |
|
