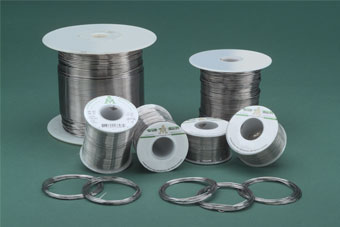

SAC305 - Lead Free, No Clean Cored Wire Solder
Alloy: SAC305 (Sn96.5/Ag3.0/Cu0.5)
Flux Core: 2.5%
Features
- Excellent wetting
- Lead Free compatible
- Wide process window
- Cleanable with saponifier
SAC305 is a no-clean, resin-based flux cored wire solder designed to offer excellent wetting characteristics and lead-free compatibility. This product is very active and is recommended for fast cycle time soldering. SAC305 flux promotes good thermal transfer, offering better solder penetration into plated through holes or surface mount interconnections. SAC305 cored wire produces low-to-medium post-process residues that are electrically safe and do not require cleaning for most applications.
Technical Data Sheet: GLOW CORE Cored Wire.pdf
MSDS: SAC305 Glow core (CW-No Clean).pdf
Available products:
| P/N | Description | Aprox. Weight |
|---|---|---|
| B-LF .015-1 | SAC305 Lead Free, No Clean Cored Wire Solder, diameter .015" (gauge 28), 1x1/2Ib Roll | 1/2 Ib |
| B-LF .015-12 | SAC305 Lead Free, No Clean Cored Wire Solder, diameter .015" (gauge 28), 12x1/2Ib Rolls | 6 Ib |
| B-LF .025-1 | SAC305 Lead Free, No Clean Cored Wire Solder, diameter .025" (gauge 23), 1x1 Ib Roll | 1 Ib |
| B-LF .025-12 | SAC305 Lead Free, No Clean Cored Wire Solder, diameter .025" (gauge 23), 12x1 Ib Rolls | 12 Ib |
| B-LF .032-1 | SAC305 Lead Free, No Clean Cored Wire Solder, diameter .032" (gauge 20), 1x1 Ib Roll | 1 Ib |
| B-LF .032-12 | SAC305 Lead Free, No Clean Cored Wire Solder, diameter .032" (gauge 20), 12x1 Ib Rolls | 12 Ib |
| B-LF .040-1 | SAC305 Lead Free, No Clean Cored Wire Solder, diameter .040" (gauge 19), 1x1 Ib Roll | 1 Ib |
| B-LF .040-12 | SAC305 Lead Free, No Clean Cored Wire Solder, diameter .040" (gauge 19), 12x1 Ib Rolls | 12 Ib |
209AXT - No Clean Cored Wire SolderAlloy: 209AXT (Sn63/Pb37) or 209AXT (SN62/Ag2/Pb36)Flux Core: 2.5%209AXT is no-clean, synthetic resin-based flux core which is the same chemistry as that of AIM NC 291AX solder paste. 209AXT flux promotes good thermal transfer, offering better solder penetration into plated through holes or surface interconnections. 209AXT cored wire produces low-to-medium post-process residues that are electrically safe and do not require cleaning. 209AXT is operator-friendly and can be used as a drop-in for any RMA type applications. Technical Data Sheet: NC 209AXT Cored Wire.pdf MSDS: Sn63-Pb37_209AXT-NC.pdf Available products: |
 |
| P/N | Description | Aprox. Weight |
|---|---|---|
| B-63 .020-1 | SN63/37/209AXT, No Clean Cored Wire Solder, diameter .020" (gauge25), 1x1 Ib Roll | 1 Ib |
| B-63 .020-12 | SN63/37/209AXT, No Clean Cored Wire Solder, diameter .020" (gauge25), 12x1 Ib Rolls | 12 Ib |
| B-63 .032-1 | SN63/37/209AXT, No Clean Cored Wire Solder, diameter .032" (gauge20), 1x1 Ib Roll | 1 Ib |
| B-63 .032-12 | SN63/37/209AXT, No Clean Cored Wire Solder, diameter .032" (gauge20), 12x1 Ib Roll | 12 Ib |
| B-63 .040-1 | SN63/37/209AXT, No Clean Cored Wire Solder, diameter .040" (gauge19), 1x1 Ib Roll | 1 Ib |
| B-63 .040-12 | SN63/37/209AXT, No Clean Cored Wire Solder, diameter .040" (gauge19), 12x1 Ib Roll | 12 Ib |
| B-62Ag2 .025-1 | SN62/Ag2/Pb36/209AXT, No Clean Cored Wire Solder, diameter .025" (gauge23), 1x1 Ib Roll | 1 Ib |
| B-62Ag2 .025-12 | SN62/Ag2/Pb36/209AXT, No Clean Cored Wire Solder, diameter .025" (gauge23), 12x1 Ib Rolls | 12 Ib |
 |
Part Number | Description | Price USD |
||||
|---|---|---|---|---|---|---|---|
| Solder Wire | |||||||
| B-LF .025-1/2 | SAC305 Lead Free, No Clean Cored Wire Solder, diameter .025" (gauge23),~0.65mm , 1/2 Ib Roll |
|
|||||
| B-LF .025-1/2 -12 | SAC305 Lead Free, No Clean Cored Wire Solder, diameter .025" (gauge23),~0.65mm , 12 x 1/2 Ib Rolls |
|
|||||
| B-LF .025-12 | SAC305 Lead Free, No Clean Cored Wire Solder, diameter .025" (gauge23) ~ 0.65mm, 12x1 Ib Rolls, 12 lb |
|
|||||
| B-LF .040-1 | SAC305 Lead Free, No Clean Cored Wire Solder, diameter .040" (gauge19), ~ 1mm 1x1 Ib Roll, 1 lb |
|
|||||
| B-LF .040-12 | SAC305 Lead Free, No Clean Cored Wire Solder, diameter .040" (gauge19), ~ 1mm, 12x1 Ib Rolls |
|
|||||
| B-63 .040-1 | SN63/37/209AXT, No Clean Cored Wire Solder, diameter .040" (gauge19), 1x1 Ib Roll, 1 lb |
|
|||||
| B-63 .040-12 | SN63/37/209AXT, No Clean Cored Wire Solder, diameter .040" (gauge19), 12x1 Ib Roll, 12 lb |
|
|||||
