Wire Cut and Strip Tools

WS100 | WS3907 | WS4473 | W 200 | Blades
Wire Cutter | Scissors | Foot Valve

WS100 Series
Part Number	Wire Size		Adjustable Strip-Off Length
Part Number	AWG	mm	Inches	mm
WS100-22	22	0.65	1-5¼16" to 1-9¼16"	33.33 to 39.68
WS100-224	22-24	0.65-0.50	1-5¼16" to 1-9¼16"	33.33 to 39.68
WS100-24	24	0.50	1-5¼16" to 1-9¼16"	33.33 to 39.68
WS100-24S	24	0.50	7¼8" to 1-1/8”	22.22 to 28.57
WS100-2426	24-26	0.50-0.40	1-5/16" to 1-11/16"	33.33 to 42.86
WS100-26	26	0.40	1-5/16" to 1-11/16"	33.33 to 42.86
WS100-26L	26	0.40	1-1/2" to 2"	38.10 to 50.80
WS100-26S	26	0.40	7¼8" to 1-1¼8"	22.22 to 28.57
WS100-28	28	0.32	7¼8" to 1-1¼8"	22.22 to 28.57
WS100-30	30	0.25	7¼8" to 1-1¼8"	22.22 to 28.57
WS100-30L	30	0.25	1-5¼16" to 1-9¼16"	33.33 to 39.68

WS100 A compact simple tool for easy and clean stripping of wires for wire wrapping, electronic and appliance applications. Designed for maximum efficiency. Easy to operate... place wire (up to 4) in stripping slot with ends extending beyond cutter blades... press tool and pull... wire is cut and stripped to proper “wire wrapping” length. The hardened steel cutting blades and sturdy construction of the tool ensure long life. Strip length easily adjustable for your application.

Back to top

WS3907 Series
Part Number	Wire Size		Adjustable Strip-Off Length
Part Number	AWG	mm	Inches	mm
WS3907-22	22	0.65	1-1/2" to 1-3/4"	38.10 to 44.45
WS3907-224	22-24	0.65-0.50	1-1/2" to 1-3/4"	38.10 to 44.45
WS3907-24	24	0.50	1-1/2" to 1-3/4"	38.10 to 44.45
WS3907-24L	24	0.50	1-1/2" to 1-3/4"	55.80
WS3907-2426	24-26	0.50-0.40	1-1/2" to 1-3/4"	38.1to44.5
WS3907-26	26	0.40	1-1/2" to 1-3/4"	38.10 to 44.45
WS3907-26L	26	0.40	2"	55.80
WS3907-28	28	0.32	7¼8" to 1-1¼8"	22.22 to 28.57
WS3907-30	30	0.25	7¼8" to 1-1¼8"	22.22 to 28.57

WS3907 For applications requiring multiple cuts and strips of the same gauge wire, the WS3907 is the most effective tool. Easy to operate... place the wires in the stripping slot at the desired shiner (strip-off) length with the end between the cutting blades. Squeeze tool and pull... wire is cut and stripped to the “proper “wire wrapping length”. The plastic grips and soft rubber sleeve assures maximum handling comfort and slip-free gripping. Stripping blades are easily replaceable.

Back to top

WS4473 Series
Part Number	Wire Size		Adjustable Strip-Off Length
	AWG	mm	Inches	mm
WS4473	22-24	0.65-0.50	7/8" to 2"	22.2 to 55.8
	22-26	0.50-0.40
WS4473C	22-24	0.65-0.50
	22-26	0.50-0.40
	28	0.32
	30	0.25

WS4473 When combinations of wire gauges and longer strip-off lengths are required, the WS4473 should be selected. Two models are available. The WS4473 is furnished with combination blades for 22 to26 AWG wire and the WS4473C is furnished with combination and single blades for 22 to30 AWG wire. Blades are easily interchangeable on the blade post. Tool is furnished with rust-resistant, oiled, black oxide coating and soft sponge-like grips.

Back to top

WS 200 Series THE "GATLING"
Part Number	Wire Size
	AWG	mm	Inch	mm
*WS201	22	0.65	1-1/8" to 2"	28.6 to 50.8
	24	0.50
	26	0.40
*WS202	26	0.40	7/8" to 1-1/8"	22.2 to 28.6
	28	0.32
	30	0.30
*WS200 Series tools accepts WSB246 & WSB683 blades only

WS 200

The “Gatling” hits all the targets! It is the latest innovative tool from JDV Products. Two models are available, each with a triple stripper (three wire gaps) in one tool. The WS201 will cut and strip 22, 24 and 26 AWG wire with no blade change required. The WS202 will cut and strip 26, 28 and 30 AWG wire with no blade change required. Each tool is equipped with an easy to use dial mechanism which will move the blade along the blade post to vary shiner (strip-off) length.

Back to top

Blade and Blade Support Replacements
Fully Interchangeable Blades

Blade Assembly				Replacement Parts
Part Number	Wire	Size	Replacement	Blade Only	Blade Supports
Part Number	AWG	MM	Blades Assy	Blade Only	Blade Supports
WSA20	20	0.8	20 GA BLADE ASSY	WSB20	WSS1820
WSA22	22	0.65	22 GA BLADE ASSY	WSB22	WSS2030
WSA24	24	0.5	24 GA BLADE ASSY	WSB24	WSS2030
WSA26	26	0.4	26 GA BLADE ASSY	WSB26	WSS2030
WSA28	28	0.32	28 GA BLADE ASSY	WSB28	WSS2030
WSA30	30	0.25	30 GA BLADE ASSY	WSB30	WSS2030
WSA224	22&24	0.65 & 0.50	22/24 GA BLADE ASSY	WSB224	WSS224
WSA2426	24&26	0.50 & 0.40	24/26 GA BLADE ASSY	WSB242	WSS2426

WSA246	22,24&26	0.65,0.50&0.40	22/24/26 GA BLADE ASSY	WSB246	WSS246
WSA683	26,28&30	0.40,0.32&0.25	26/28/30 GA BLADE ASSY	WSB683	WSS683

Replacement blades are interchangeable between WS100, WS3907, and WS4473 wire stripping tools. These fine blades are made from specially tempered spring steel. The stripping slot is carefully centered within the blade to ensure clean, no nick stripping. The replacement blade support sections are made of heat treated plated steel. They are designed to accurately center the slots of the stripping blade, making possible clean, nick-free wire stripping. Easy replacement.

Back to top

Pneumatic Wire Cutter

Wire Cutter

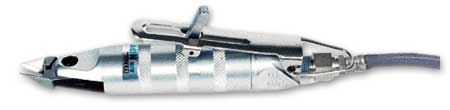

Wire Cutter	GT-N3/SL
Cutting Blade	N3BBH90

Unique, ergonomically designed air tool used in applications for cutting wire. A safety lever prevents accidental closings. This unit has a unique base design capable of turning 360 degrees and allows the unit to be rotated for ease of operation by a left or right-handed person.

The high speed steel blade is designed to trim component leads on thru-hole printed circuit boards.Easy to maintain, the blade can be replaced in less than a minute. Different models of blades are available for other applications.

Back to top

Double Action Air Scissors

Part Number	Capacity(mm)			b (mm)	Frame diameter (mm)	Weight (g)	Air consumption cnl/Stroke	Pressure (kgf)	Working air pressure (kgf/cnl)
	copper	steel	hard plastic
GT-HWR1		1.0	0.5	95	20	84	45	30	4~5
