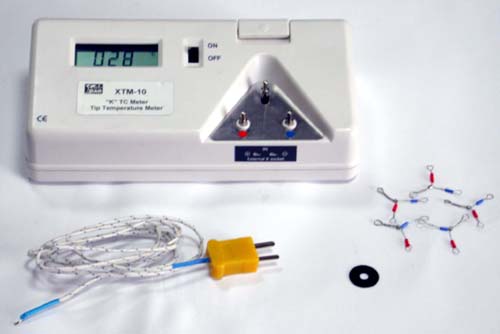

XTM-10 - "K" TC Meter and Tip Temperature Meter |
 |
| Regular monitoring of solder tip temperature ensures that your soldering
equipment is operating within specification and also provides you with
reassurance that your process is safe. This tip temperature monitor
measures the surface temperature of your soldering tips (the part that
contacts the work) quickly and accurately.
Also, the unit can be used as a regular "K" thermocouple thermometer to verify board temperatures during rework, hot air temperature of convection heating tools etc. |
 |
Features
- K-type thermocouple sensor, an on/off switch, and an external temperature probe that can be used to measure temperature of air or other subjects.
- One K-type probe and a 9V battery.
- Display resolution: 1 °F (1 °C), standard temperature input.
- Temperature range: 0-1200°F (0-600 °C).
System includes
- XTM-B Temperature Meter Base
- XTM-S Tip temperature sensors (5 pcs)
- XTM-RP Ring Plate (It is attached to slide pole - operation before measure)
- XTM-TC1 - K-type thermocouple gauge 26 (diameter: 0.016" (0.405mm) length: 3.2' (1m))
Technical specification
| Part Number | XTM-10F | XTM-10C |
| Range of Measurement | 0°F - 1200°F | 0°C - 600°C |
| Resolution | 1 °F | 1°C |
| Accuracy | ±6°F (572 °F - 932 °F) | ±3°C (300 °C - 500 °C) |
| Applied sensor | K-type thermocouple | |
| Display | 3.5-digital liquid crystal display Battery alarm Burnout |
|
| Power Supply | 006P, 9V Dry Battery | |
| Dry Battery Dimensions | 6.3" x 1.8" x 3.1" (160 x 45 x 80 mm) |
|
| Weight | 0.44 lbs (200 g) | |
Replacement part
- XTM-S5 --Replacement Sensor (pack of 5)
 |
Part Number | Description | Price USD |
||||
|---|---|---|---|---|---|---|---|
| XTM-10C | |||||||
| XTM-10C | "K" TC Meter and Tip Temperature Meter, Celsius temperature scale |
|
|||||
