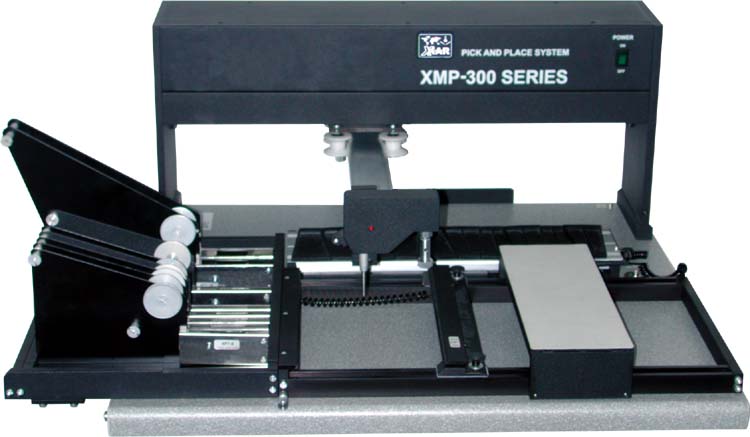

XMP-301 Manual Pick and Place System For SMT Low Volume Assembly

Introduction

Model XMP-301 is a common base with a board holder, armrest, loose component tray XL-11, a feeder base and six feeders (3x8 mm, and one of each 12, 16 and 24 mm), pick and place arm and a control console containing low noise vacuum source and logic for picking up and releasing the component for placement upon slight movement downwards of a control knob.

Features:

• Precise and smooth arm movement in both X and Y axis.
• Accommodates large boards up to 15" x 12" (380 x 305 mm). Without a carousel and XL-11 tray loader the system will accommodate 15" x 24" PCB.
• Supplied with feeders (3x8mm and one of each, 12mm, 16mm and 24mm) and loose component tray with 10 trays.
• Quick changeover of feeders and loose components trays. Complete feeder base ca n be replaced by another one in seconds.
• Fully Antistatic. It is supplied with AML-301A wrist strap and AS3-B grounding wire. All subsystems connected to a common ESD ground.
• Unique illumination system mounted on an arm focusing light in working area - both during pick-up of a component and the placement on a board.

System includes:

• XMP-CC1 Control Console Assembly
• XMP-301/XMP-302 Base Assembly with Board Holder
• XZ-A301 Pick and Place Arm Assembly
• XL-11 Loose Component Tray Assembly
• Six feeders (3 pcs of XPT-8, one XPT-12, one XPT-16 and one XPT-24)
• XFB-1 Feeder Base
• XNS-1 Needle/Cup Set
• AS3-B ESD grounding wire
• AML-301A Wrist strap with coiled cord

Technical Specifications

Power Source	110-120 V, 220-240 V AC
Air pressure (shop air)	Max 90 psi (0,7 Mpa)
Maximum placement area on the PCB	14" x 12" (360 x 305 mm) The board can be turned around to place components on remaining 14"x12". (Total area of 14"x24")
Quantity of feeders:	Max 20 of 8 mm feeders XPT-8
Loose component tray loaders	One, standard (max 2 simultaneously)
Vacuum Source	High efficiency diaphragm pump
Dimensions	26.4" x 28.7"x 12.2" (670mm x 730mm x 310 mm)
Weight	55 lb (25 kg)
Shipping package weight (Two packages)	27.2"x 27.6" x 7.1" (690mm x 700mm x 180mm) / 36 Ib (18 kg) 27.2" 18.1" x 12.8" (690mm x 460mm x 325mm) / 29 Ib (15 kg)

Optional accessories

• XPT-8 - 8mm feeder
• XPT-12 - 12mm feeder
• XPT-16 - 16mm feeder
• XPT-24 - 24mm feeder
• XCAR-1 - Component Carousel
• XIL-1.1 - Illumination System
• XL-11 - Tray loader with 10 single compartment trays
• XT-1/15 - Pack of 15, single compartment trays
• XT-2/15 - Pack of 15, two compartments trays
• XNS-1 - Needle/cup set (3 metal needles and 4 different sizes of ESD cups)
• XCS-1 - Cup set (2 each of 4 sizes of ESD cups)
