XVP-100 Vacuum Pick-Up
Pencil
Complete with XVP-10
|
|
| XVP-100 |
Low noise, high vacuum space-saving package
Universal Vacuum Pick-Up Tool for manual placement of any kind of SMD components and component-handling operations.
Universal Vacuum Pick-Up Tool for manual placement of any kind of SMD components and component-handling operations.
Vacuum Pick-Up Pencil has been designed to obtain small size and small foot print. It is the smallest, high-performance unit in the industry. It is also a low-voltage tool, completely safe, and ergonomic. It comes with Vacuum Pick-Up Handle which includes soft, ESD silicone, temperature resistant hose, vacuum bent probe and 3 sizes of ESD vacuum cups. It also has a holder to place a handle when not in use. Quiet, solidly designed, made in Japan vacuum pump guarantees trouble-free operation.

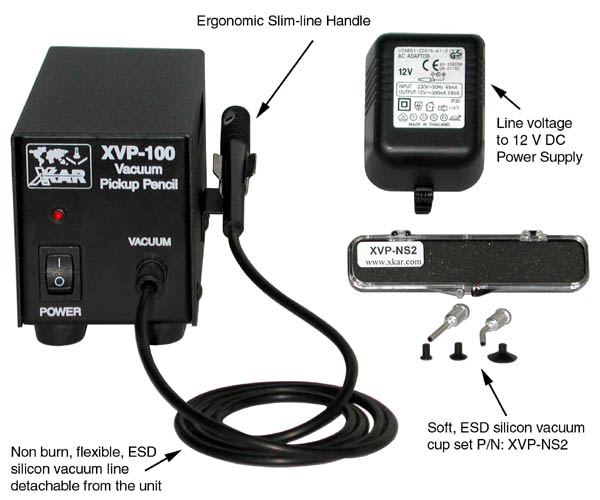

System includes:
- XVP-100 Base unit
- XVP-10S Vacuum Pick-up Pencil
- XVP-NS2 Vacuum Probe Set (including 2 needles and 3 suction cups)
- Power Supply X-AC1 for 115V or X-AC12 for 220-240V
Specifications
|
Input Voltage |
110-120, 220-240V AC |
| Power Consumption | Max. 20 VA |
|
Vacuum Pressure |
10" of Hg (250mmHg) |
| Air Source | Built in pump |
| Weight | 2,0 kg (4,4 lbs.) |
| System dimensions | 88 x 166 x 88 mm 3.5" x 6.5" x 3.5" |
| Packaged weight | 3.6 kg (8 lbs.) |
 |
Part Number | Description | Price USD |
||||||
|---|---|---|---|---|---|---|---|---|---|
| XVP-100 | |||||||||
| XVP-100 -115V | XVP-100 Vacuum Pick-Up Pencil , 110-120V AC |
|
|||||||
| XVP-100 -230V | XVP-100 Vacuum Pick-Up Pencil , 220-240V AC |
|
|||||||
| Optional Equipment | |||||||||
| XVP-NS2 | Vacuum Probe Kit |
|
|||||||
