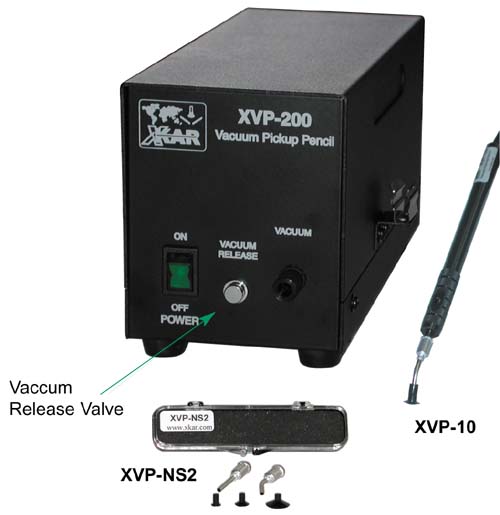

XVP-200 Vacuum Pick-Up System
with built-in Vacuum Release Valve
|
|
| XVP-200 |
Universal Vacuum Pick-Up Tool for manual placement of any kind of SMD components and component-handling operations.
Unlike other systems on the market, it has a built-in vacuum release valve. This Unique Feature allows precise component placement and eliminates movement caused by vacuum release on the handle. It comes with Vacuum Pick-Up Handle which includes soft, ESD silicone hose, vacuum bent probe and 3 sizes of ESD vacuum cups. It also has a holder to place the handle when it is not used. Quiet, solidly designed, US made vacuum pump guarantees trouble-free operation.
System includes:
- XVP-200 Base
- XVP-10S Pencil with Vacuum Probe
- XVP-NS2 Vacuum Probe Set (including XVP-CS-Set - 3 vacuum cups)
Specifications
|
Input Voltage |
110-120, 220-240V AC |
| Power Consumption | Max. 20 VA |
|
Vacuum Pressure |
10" of Hg (250mmHg) |
| Air Source | Built in pump |
| Weight | 3.0 kg (6.6 lbs.) |
| System dimensions | 88 x 166 x 88 mm 3.5" x 6.5" x 3.5" |
| Packaged weight | 3.6 kg (8 lbs.) |
 |
Part Number | Description | Price USD |
||||||
|---|---|---|---|---|---|---|---|---|---|
| XVP-200 | |||||||||
| XVP-200 -115V | Vacuum Pick-up Pencil with vacuum release valve (Includes XVP-NS2, Vacuum Probe Kit) , 110-120V AC |
|
|||||||
| XVP-200 -230V | Vacuum Pick-up Pencil with vacuum release valve (Includes XVP-NS2, Vacuum Probe Kit) , 220-240V AC |
|
|||||||
| Optional Equipment | |||||||||
| XVP-10S-Set | Vacuum Pick-Up Pencil Handpice with XVP-NS2 Probe Kit |
|
|||||||
| XVP-NS2 | Vacuum Probe Kit |
|
|||||||
