XK-AL Series Hot Air Tool Precision-Adjustment
Tool Holders with Auto Lift

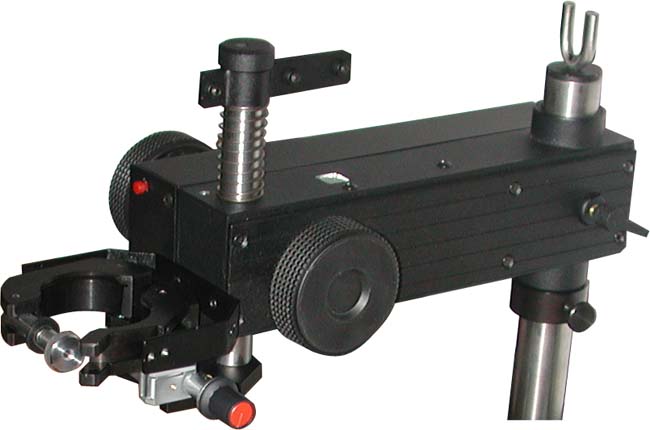

XK-3AL Tool Holder with Auto Lift

Auto-Lift is an option recommended for use with Focus "+" based rework packages. After the reflow-zone is finished it automatically raises the component before the start of a cooling cycle. This option makes the removal of components semi-automatic saving operators time. Installation of this option on XK-Series Holders takes few minutes and does not require any tools.

XK-1AL, XK-2AL, XK-3AL and XK-4AL Tool holders are XK-1, XK-2, XK-3 and XK-4 Tool Holders with an Auto Lift mechanism built-in. The Auto Lift tool holders are recommended for use with Focus "X" based rework packages. After the reflow-zone is finished it automatically raises the component before the start of a cooling cycle. The Auto Lift makes the removal of components semi-automatic, saving operator's time. Auto Lift can be activated either by a signal from Focus "X", or on demand either by a pushbutton switch or by a foot switch.

XK-AL Series System Includes:

• XLK-1 High Column Assembly (including XK-SR Support Ring, XK-W Washer and XK-FS Fastening Screw).
• XK-1AL, XK-2AL, XK-3AL or XK-4AL Arm
• XCC-1 Connection Cable (Connecting XK-AL with Focus "X")

Optional Accessories
(Necessary for use without Focus "X", as an independent Auto Lift Unit)

• X-AC2 Power supply (for 110-120V)
• X-AC22 Power Supply (for 220-240V)

X-FineRework-LX-AL-IL shown with Auto Lift XK-3AL.



	Part Number	Description	Price USD
XK-AL Series Hot Air Tool Precision-Adjustment Tool Holders with Auto Lift
Buy	XK-2AL -115V	Tool Holder with up/down Z-axis movement and Auto Lift. , 110-120V AC	Qty 1 + Price $1,239.00
Buy	XK-2AL -230V	Tool Holder with up/down Z-axis movement and Auto Lift. , 220-240V AC	Qty 1 + Price $1,239.00
Buy	XK-3AL -115V	Tool Holder with precise rotation, up/down Z-axis movement and Auto Lift. , 110-120V AC	Qty 1 + Price $1,329.00
Buy	XK-3AL -230V	Tool Holder with precise rotation, up/down Z-axis movement and Auto Lift. , 220-240V AC	Qty 1 + Price $1,429.00
Buy	XK-4AL -115V	Tool Stands with fine X-Y positioning, rotation and up/down Z-axis movement and Auto Lift. , 110-120V AC	Qty 1 + Price $1,599.90
Buy	XK-4AL -230V	Tool Stands with fine X-Y positioning, rotation and up/down Z-axis movement and Auto Lift. , 220-240V AC	Qty 1 + Price $1,699.90
