FOCUS Mini Mini Convection Rework Systems with small grip handle and for smaller components sizes

Patented in USA, Japan and Europe.
USA Patent #: 6,761,304

System includes:

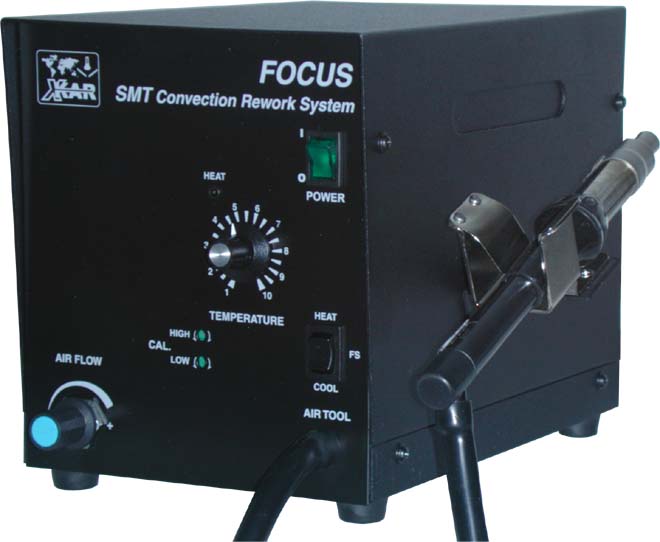

• FOCUS Mini Base Unit with integral XHT-1 Small Handle High Power Hot Air Tool
• XTH-3 Tool Holder for XHT-1

This Basic Tool outperforms all competition and saves you money on nozzles. Our nozzles are low mass and thin wall, and will give more accurate temperature readings than other high mass nozzles. Ergonomic hand piece (patented design) reduces cable pull during hand held operations. Fully Static Safe and easy to use.

Features:

• Removes and replaces discrete, SOIC, PLCC, QFP  and other SMD components
• Closed-loop, variable temperature control
• Fully grounded and static-safe system
• Optical isolation with zero voltage switching
• Over 10 nozzles available

FOCUS Mini hot air station feature a powerful heater to precisely remove even high mass components from multi-layer boards. Temperature and Airflow are continuously variable. The system's temperature controller features zero voltage-switching circuitry for spike-free and safe application of power to the heater. Optional XFS–1 foot switch can be used to turn the system on and off. The hand piece of the FOCUS Mini is ergonomic, ESD safe and user friendly. It features a push button switch, which turns the system on and off at a touch of a finger. Convenient XQF Quick Connect allows a change of the nozzles in few seconds time. End of the hand piece is not perpendicular to the axis of the tool minimizing cable and air line pull on the tool during hand-held operations. Selection of 10+ nozzles and quick turn-around on custom nozzle orders, which are made with minimum surcharge makes removal and replacement of any SMD components possible and easy. Modular and unique (patent applied for) nozzle design reduces time to make custom nozzles if required.

Technical Specifications:

Input Voltages	110-120, 220-240V AC
Power Consumption	300 W
Fuse	3.15A for 110-120V or 2A for 220-240V Slow-Blow 5mm x 20mm
Heater	Resistive, 250W line voltage
Heater Control	PID, Closed-Loop Thermocouple sensor feedback
Air Source	High efficiency diaphragm pump
Air Flow	Variable, 3 - 15 l/min, air flow controlled by the valve located on the front panel
Temperature	150 ºC - 450 ºC (302 ºF - 842 ºF)
Weight	2.5kg (5.5 lbs)
System dimensions	5.9" x 8.7" x 6.7" (150mm x 220mm x 170mm)
Packaged weight	3kg (6.6 lbs)

Optional Equipment:

XM Series - Mini nozzle range
