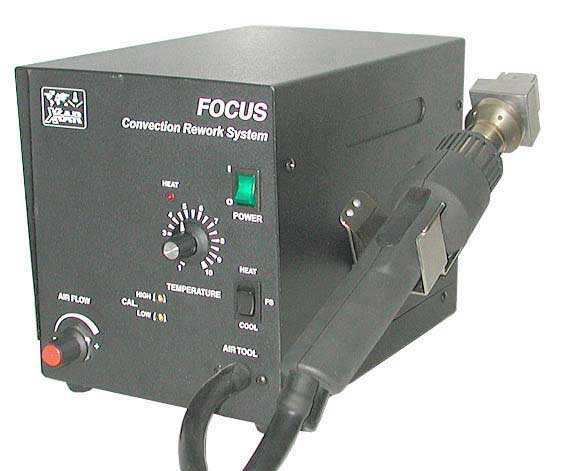

FOCUS Basic SMT Convection Rework System

Patented in USA, Japan and Europe.
USA Patent #: 6,761,304

System includes:

• FOCUS Base Unit with integral XHT-10 Hot Air Tool
• XTH-1 Hand piece holder for XHT series
• XQF Quick Connect for easy attachment of nozzles

This Basic Tool outperforms all competition and saves you money on nozzles. Our nozzles are low mass and thin wall, and will give more accurate temperature readings than other high mass nozzles. Ergonomic hand piece (patented design) reduces cable pull during hand held operations. Fully Static Safe and easy to use.

FOCUS is a low-cost convection rework system with closed loop temperature control

Features:

• Removes and replaces discrete, SOIC, PLCC, QFP  and other SMD components
• Closed-loop, variable temperature control
• Fully grounded and static-safe system
• Optical isolation with zero voltage switching
• Over 50 nozzles available

FOCUS hot air station features a powerful heater to precisely remove even high mass components from multi-layer boards. Temperature and Airflow are continuously variable. The unit has built-in air-pump to deliver full range of airflow. The systems temperature controller features zero voltage-switching circuitry for spik- free and safe application of power to the heater. Optional XFS–1 foot switch can be used to turn the system on and off. Releasing the foot switch turns the system off. The hand piece of the FOCUS is ergonomic, ESD safe and user friendly. Convenient XQF Quick Connect allows change of the nozzles in few seconds time. End of the hand piece is not perpendicular to the axis of the tool minimizing cable and air line pull on the tool during hand- held operations. Selection of 40+ nozzles and quick turn-around on custom nozzle orders, which are made with minimum surcharge makes removal and replacement of any SMD components possible and easy. Modular and unique (patent applied for) nozzle design reduces time to make custom nozzles if required.

Technical Specifications:

Input Voltages	110-120, 220-240V AC
Power Consumption	500 W
Fuse	5A for 110-120V or 3.15A for 220-240V Slow-Blow 5mm x 20mm
Heater	Resistive, 450W line voltage
Heater Control	PID, Closed-Loop Thermocouple sensor feedback
Air Source	High efficiency diaphragm pump
Air Flow	Variable, 3 - 20 l/min, air flow controlled by the valve located on the front panel
Temperature	150 ºC - 450 ºC (302 ºF - 842 ºF)
Weight	2.5kg (5.5 lbs)
System dimensions	150mm x 220mm x 170mm (5.9" x 8.7" x 6.7")
Packaged weight	3kg (6.6 lbs)

Optional Equipment:

Hot Air systems accessories
XN Series - FOCUS Series Nozzles
