Floor Mat Set  AFS x-y includes: your choice of Floor Mat, your choice of size of  a floor mat, universal 10mm snap  A-SNAP- 10 and  AGW-10FM  Low Profile Grounding Wire

Features:

1. Abrasion resistance and anti-skid properties.
2. Conductive fabric on the bottom to control stretching and compression (AFM-SQ and AFM-R mats)
3. Top surface Resistivity:  10E7~10E9 ohms/square, bottom surface resistivity: 10e3~10e5 ohms/square.
4. Decay time < 0.5 sec
5. Service life not less than 2 years.

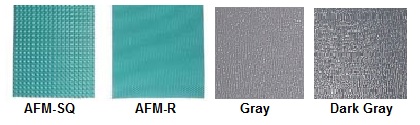

6. Square and rhombus patterns available for green mats. Texture on Gray and Dark Gray mats.
7. Top green NBR rubber, bottom black conductive fabric.
    (2 layers  solidly laminated).

Floor mat set : AFS-a' x b'
2-Layer Rubber, Heat and Chemical Resistant

The set includes:

  • ASF-x -y Size a' x b'
  • A-Snap - Snap Kit 10mm,
  • AGW-10FM- Ground cord for floor mats, black 10ft, female
    (to fit male 10mm snap on the mat

Technical Specification StatMat-F
Thickness 0.08" (2mm)
Width 4' (1.22m)
Length 32.8' (10m)
Hardness (KSM6518-19) Top layer - 65
Bottom layer - 66
Tensile Strength (LB/SQ inch) Top layer - 1548
Bottom layer - 1820
Elongation (%) Top layer - 395
Bottom layer - 285
Surface Resistivity (ASTM-D257) Top layer - 107-8 Ohm/Sq
Bottom layer - 104-5 Ohm/Sq
Resistance to ground Less than 107 Ohm/Sq
Chemical Resistance Solvent, Acidic, Alkali, Oil, Aromatics
Non Chemical Resistance D.O.P Ketone
5KV decay time < 0.01sec.

Select part number from the following table:
Size Part Number
Grey
StatMat-F-G		 Blue
StatMat-F-DG		 Green
StatMat-F-Gr
4' x 5'
(1,2 x 1,5m)		 AFS-4x5-G AFS-4x5-DG AFS-4x5-Gr
4' x 6'
(1,2 x 1,8 m)		 AFS-4x6-G AFS-4x6-DG AFS-4x6-Gr
4' x 8'
(1,2 x 2,4 m)		 AFS-4x8-G AFS-4x8-DG AFS-4x8-Gr
  |  Print page



Order Now Part Number Description Price
USD
AFS-4x5-AFM-R Superior True Floor Mat with cloth backing. Floor Mat Set Includes: AFM-R Size 4'x 5' (1,2 x 1,5 m) Green, A-SNAP - 10 mm snap and AGW-10FM Low Profile Grounding Wire. Please get a quote for other size of the Floor Mat Set. We will quote in less than 24h
Qty1 +
Price$149.90
AFS-4x5-DG Floor Mat Set. Includes: StatMat-F Size 4'x 5' (1,2 x 1,5 m) Dark Gray, A-Snap - 10 mm snap and AGW-10FM Low Profile Grounding Wire.
Qty1 - 45 +
Price$159.90$139.90
AFS-4x5-G Floor Mat Set. Includes: StatMat-F Size 4'x 5' (1,2 x 1,5 m) Color Grey, A-Snap - 10 mm snap and AG-15FM Low Profile Grounding Wire.
Qty1 - 45 +
Price$159.90$139.90
AFS-4x6-DG Floor Mat Set. Includes: StatMat-F Size 4'x 6' (1,2 x 1,8 m) Dark Gray, A-Snap - 10 mm snap and AGW-10FM Low Profile Grounding Wire.
Qty1 - 45 +
Price$179.90$159.90
AFS-4x6-G Floor Mat Set. Includes: StatMat-F Size 4'x 6' (1,2 x 1,8 m) Color Grey, A-Snap - 10 mm snap and AG-15FM Low Profile Grounding Wire.
Qty1 - 45 +
Price$179.90$159.90
  AFS-a' x b' x Y Y=Color G=Grey, DG=Dark Gray, Gr=Green Floor Mat Set. Includes: StatMat-F Size a' x b' x Y , A-Uni Snap - 10 mm snap and AG-15FM Low Profile Grounding Wire. Get quote

Get quote - Special Order. Please e-mail or fax at 570.842.4290 for pricing.
