Professional ESD rubber mats supplier

Focusing on Protection against ESD

Table and Shelf covering Premium ESD Mats

Static Dissipative Dual layer rubber. Anti-UV.

The mats are made of soft natural rubber to better follow the contour of tables and shelves.

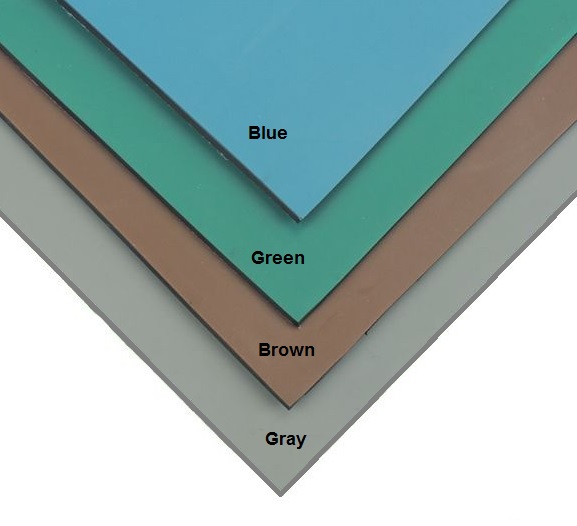

They will not curl and do not need to be attached by the adhesive tape to the table top of the shelf. Top (color side) of this dual layer mat can be delivered in any of the shown above colors.

Standard stock is matte finish in colors Gray, Blue and Green. The available standard sizes are: W(0.6m, and 1.2m) x L(10m) x T(2mm). Other sizes are available upon request W(0.9m and 1.0m). Advantages of these Premium Mats over industry low cost mats are : No usual rubber smell, Anti-UV properties, low durometer (soft), higher heat resistance (to 300 deg.C), quality finish (will not have unwanted bubbles in the bottom layer).

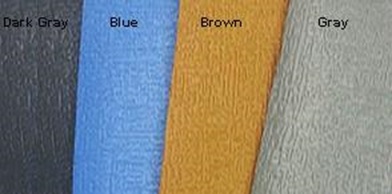

Premium Floor Mats

Static Dissipative Dual layer rubber, Anti-skid (both sides), Anti-UV.

The mats are made of hard natural rubber to better withstand wear and tier when exposed to a heavy traffic of loaded carts or pressure of the ESD safe chairs. They will not curl and do not need to be attached by the adhesive tape to the floor. Top (color side) of this dual layer mat can be delivered in any of the shown above colors. Standard colors are Dark Gray and Gray.

 Available standard size is: W(1.2m) x L(10m) x T(2mm). Size W(1.0m) is available upon request. Advantages of these Premium Mats over industry lower cost mats are: No usual rubber smell,

 Anti-UV properties, high wear resistance, higher heat resistance (to 300 deg.C.), quality finish (will not have unwanted bubbles in the bottom layer). Both sides are anti-slip.

Worksurface Mats Premium

StatMat-TP 4' x 32.8' x 0.08” Table Mats

 2-Layer Rubber, Heat and Chemical Resistant

Features:

• Temperature resistant to 300 deg.C. Will not get damaged by hot solder or soldering irons.

• Offer excellent resistance to oil, grease and most of common solvents.

• Useful for semiconductor, computer & electronic parts factories, electronic assembly, and chemical laboratories.

• Has mat finish (glossy available through special orders).

• Will not peel, chip, or curl.

• Ground cords and snaps are included with the kits only.

• Materials:

          - Top layer: static dissipative NBR

          - Bottom layer: conductive NBR.

          - Color:

          - Top layer: G=Grey, B= Blue, Gr=Green

          - Bottom layer: Black

Technical Specifications:

• Thickness: 0.080" (2mm)


• Width: 4'(1.22m)


• Length: 32.8'(10m)


• Hardness (KSM6518-19) Top layer – 58   Bottom layer - 60


• Tensile Strength (LB/SQ inch) Top layer - 1560 Bottom layer - 1860


• Elongation (%) Top layer - 345 Bottom layer - 265


• Surface Resistivity (ASTM-D257) Top layer – 108-9 Ohm/Sq Bottom layer - 104-5 Ohm/Sq


• Resistance to ground Less than 108 Ohm/Sq


• Chemical Resistance Solvent, Acidic, Alkali, Oil, Aromatics


• Non Chemical Resistance D.O.P Ketone


• 5KV decay time < 0.01sec.

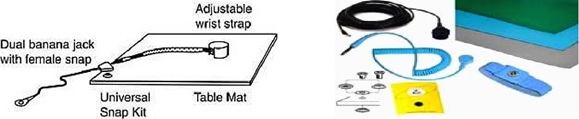

Table top set ATSP-a' x b'-X   X=color G=Gray  B=Blue     Gr=Green

2-Layer Rubber, Heat and Chemical Resistant PremiumTable mat Set
