Adjustable Racks

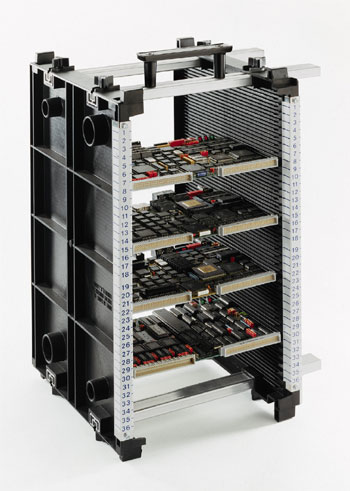

Karry-All Model 80
Medium to large boards

Card guides are 12.5" deep; optional 18" and 24" guides for very large boards
75 numbered slots measure .110" W x .155" D on a .210" pitch

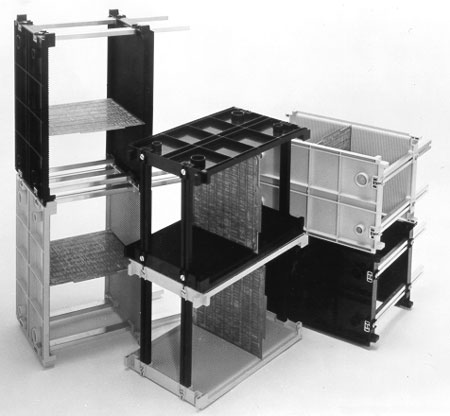

Stackable vertically, horizontally or on edge

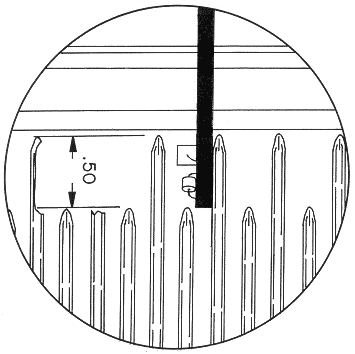

Easy board insertion with offset ribs
Steel stiffeners and molded ribbing prevent flexing of card guides
High Temp model is available to tolerate 280F (138C) depending on board weight and rack position. Use Part Number 80-12-2HT to order.
Each locking thumb screws
Fits many standard transport carts for horizontal transport
Extrusions can be ordered in any custom length for special applications
Optional carrying handle shown at left
New transport cart that holds up to six Karry-Alls.
Hold heavy boards and prevent warpage with three sided Model 80
Offset slots for easy loading of boards

Click here for the PCB storage and transport racks brochure. (24 MB)

Model No.	Overall Dim.		Inside Dim.
	L	W	D	W	D
80-12-2	18.75	14	12.5	12	12
80-18-2	18.75	20	12.5	18	12
80-24-2	18.75	26	12.5	24	12

Deep Model 80 *

For very large boards, the Deep Model 80 is recommended with card guides 18" or 24" in depth, multiple extrusions, two carrying handles and optional dollys for transport.

Model No.	Overall Dim.		Inside Dim.
	L	W	D	W	D
80-18-18*	18.75	20	18	18	18
80-24-24*	18.75	26	24	24	24
85-18-18	Transport Dolly
85-24-24	Transport Dolly

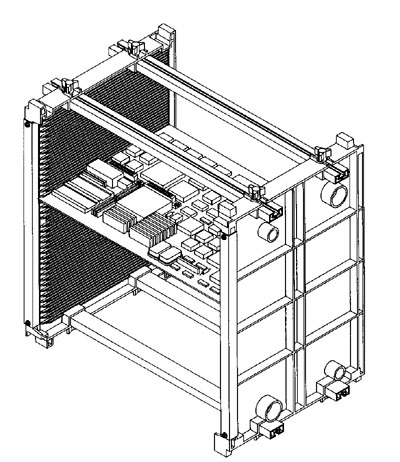

Click here to view schematic.
Click here for the PCB storage and transport racks brochure. (24 MB)

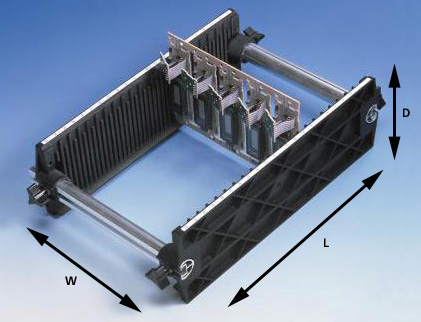

Karry-All Model 76
Small to medium boards

39 numbered slots measure .135" W x .135" D on a .260" pitch
Easy board insertion with offset ribs
Thumb screws for tool-free adjustment

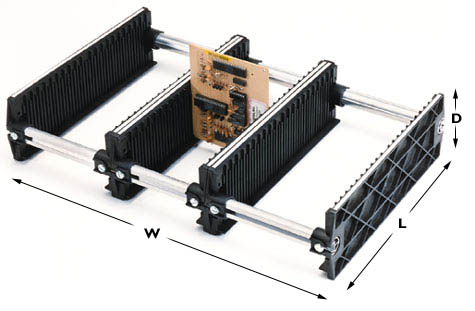

Add additional card guides to create multiple sections
Optional leg brackets for horizontal storage of 4" deep models;
8" deep models can be used horizontally without legs
* Optional carrying handle
Optional high temp. card guides tolerate 275°F

Click here to view the 76-8-4 model.

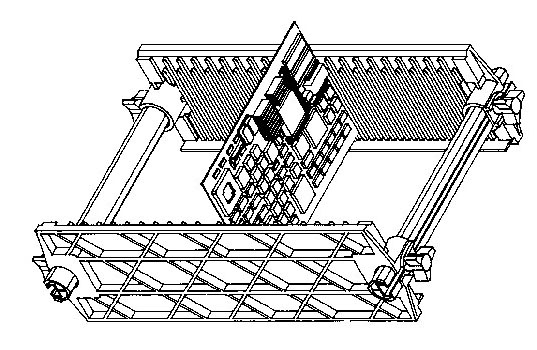

Click here to view schematic.
Click here for the PCB storage and transport racks brochure. (24 MB)

Model Number	Overall Dimensions			Board Capacity
	L	W	D	W	D
76-8-4CP	13.25	9	4	8	6
76-8-8CP	13.25	9	8	8	10
76-14-4CP	13.25	15	4	14	6
76-14-8CP	13.25	15	8	14	10
76-20-4CP	13.25	21	4	20	6
77-4CP	Card Guide 13.25 long x 4 deep
77-8CP	Card Guide 13.25 long x 8 deep
KAU-8	Extrusion 9" Long
KAU-14	Extrusion 15" Long
KAU-20	Extrusion 21" Long
KAU-72	Extrusion 72" Long
KAH-2	Carrying Handle
KAL-1	Legs For Horizontal Storage
87-1	Thumb Screw

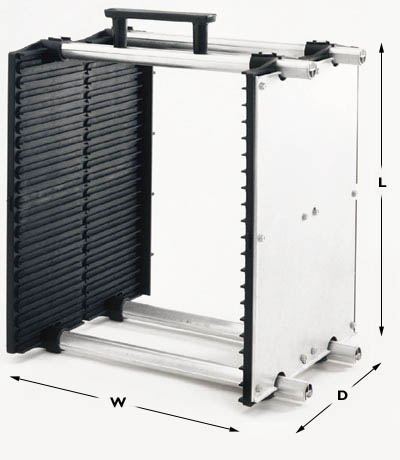

Karry-All Model 79
Medium boards and hard-to-hold edges

Unique double slots measure .125" W x .125" D inside a .600" W x .200" D slot for boards with components on the edges
18 slots on a pitch of .700
Model 79-20B-5 fits a standard 17" x 21" tote box
Horizontal storage with optional leg brackets (KAL-2) for 5" deep model
11" deep models need no brackets for horizontal storage
Optional carrying handle
Weighs 2.5 lbs.

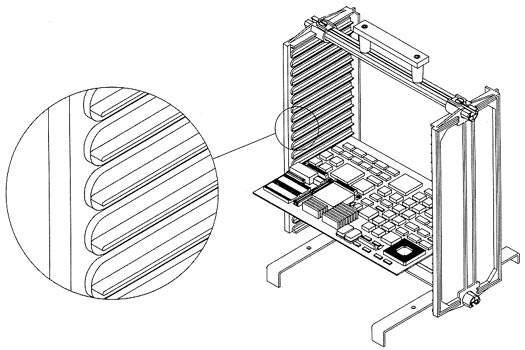

Click here to view the Model 79-14-5 with optional leg brackets
Click here for the PCB storage and transport racks brochure. (24 MB)

Model Number	Overall Dimensions			Board Capacity
	L	W	D	W	D
79-8-5CP	15.25	9	5.50	8	8
79-14-5CP	15.25	15	5.50	14	8
79-14-11CP	15.25	15	11	14	15
79-20-5CP	15.25	21	5.50	20	8
79-20-11CP	15.25	21	11	20	15
79-8-11CP	15.25	9	11	8	14
79-5CP	Card Guide 15.25 long x 5.5 deep
79-11CP	Card Guide 15.25 long x 11 deep
KAU-9	Extrusion 9" Long
KAU-15	Extrusion 15" Long
KAU-21	Extrusion 21" Long
KAH-2	Carrying Handle
KAL-2	Legs For Horizontal Storage
87-1	Thumb Screw

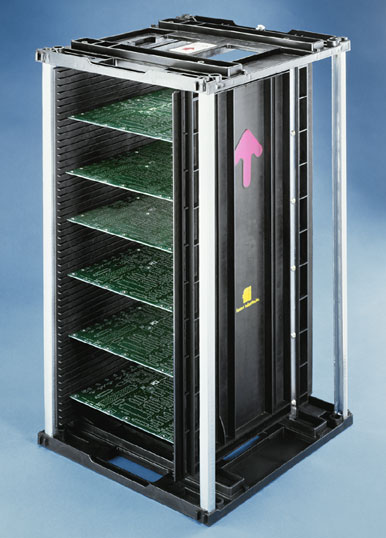

Magazine Rack Model NTC
Board handling with automated lines

Zero flexing of card guides with steel reinforcing supports and molded ribs
Four steel corner posts for increased rigidity
ABS material tolerated 85C; surface resistivity of 10 ohm/cm
Removeable end stop
Cut-out carrying handles on top and bottom
First slot at 35mm from base; slots measure 3mm deep x 7mm high on a 10mm pitch
Custom widths are available with aluminum top and bottom, with carrying handles
Transport dolly holds stackable racks side by side. 18" high with two locking casters

Description	NTC-091	NTC-092	NTC-094	NTC-095	NTC-096
Width (mm) Length (mm) Height (mm)	318 355 580.5	318 355 570.5	370 352 570.5	380 480 575	400 460 575
Min. PCB Measure Max. PCB Measure	50w 258W x 330L	50w 258W x 330L	98w 308W x 330L	74w 318W x 450L	64w 334W x 430L
Capacity	51	50	50	50	50
Weight	5.2 Kg	4.8 Kg	4.8Kg	7 Kg	7Kg

MAX Racks

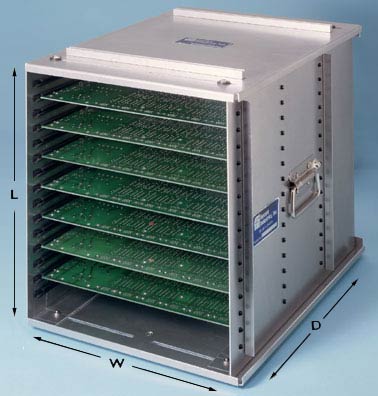

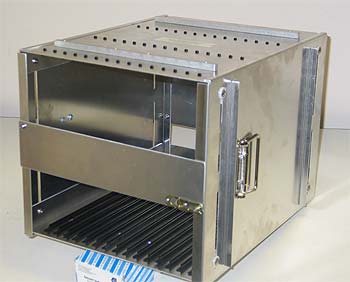

Aluminum construction with reinforcements on top and sides for strength
Snap-in ESD safe card guides with minimum board pitch of ?"
Stackable with boards in horizontal position
Two fold-down carrying handles
Three standard sizes and customs with 25 pc. minimum
Guides are available to purchase in lengths of 8", 12", 16"
Optional transfer dollies
Optional front latch with closure

	Overall Dim			Board Capacity		# of Boards
	L	W	D	W	D
MX121216	12	12	16	12	16	15
MX121416	12	14	16	14	16	15
