GiGa FiT 1/4" HEX BIT

The Highest Quality BITS you can get !! Best Fit and Super Straight
100µm (.004") Max deviation along the whole bit

MAX Torque=25Nm

That is why, for your Powerful Electric Impact Driver, you should always use this just Invented GiGa FiT Screwdriver HEX BITS

  • The Unique, New, Patented Tip which offers Superior Fitting.
  • Tip, which is the Newest Design world wide, is patented and registered.
  • The Fitting on Cross Screws is the best fit ever achieved by modern technologies.
  • All of GiGa FiT Hex Bit are precisely manufactured and delivered super straight (LESS THAN 100µm of MAX Bend on the full bit lengths)

That's why, for Powerful your Electric Impact Driver, we recommend you use always. This New BITS.

GiGa FiT Screwdriver HEX BITS

  • This applied Dreaming Tip which offers Superior Fitting.
  • Giga FiT Tip which is The New Designed, is patented and registered.
  • The Fitting on Cross Screws is tremendous precision Fit than never.
  • Other hand, The Maximum Bending on BIT is also very much important to get The Best Working Circumstance.
  • All of GiGa FiT Hex Bit is delivered at LESS THAN 100µm of MAX Bend

Just Say The Same Quality on Every Piece!!

ALL of Piece was Straighten for LESS than 100µm

Every Piece of BIT has been treated of  "STRAIGHTEN for LESS THAN 100µm" after Heat-Treatment for winded and Twisted. The Displayed DATA in below, shows a Statements of the Result of Treatment on the Production of  Tokoma's Hex Bits

Super Hard's
Max Torque = 16.8 Nm

  • Usually Cross Tip applied under the International Standard.
  • Available from 65mm to 200mm long.
  • We also can work for your need under your special specifications.

GiGa FiT
Max Torque 16.8Nm

  • Applied New Designed Patented Tip for Fit more.
  • Available from 65mm to 200mm long.

The Treatment Data List for Straighten

Done: a statement of Straighten / Origin: a statement of did not Straighten

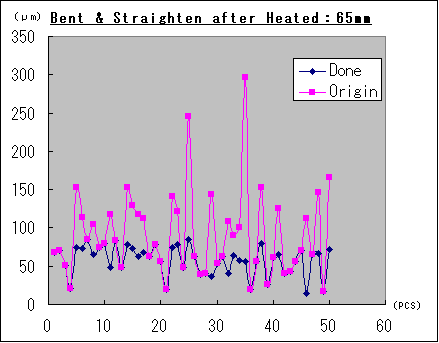

65mm's

For the 60% of Pieces are not bent at exceeding‚ P‚O‚O µm, because of "SHORT". But some pieces record over 500µm when heated. At the present, Many Maker are supplying with NO-STRAIGHTEN for this sized. That's why, many people has made damaging Tip or Screw as the commonly troubles.

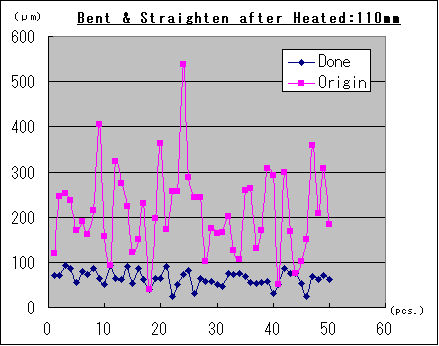

110mm's

For the 30% of Pieces are not bent at exceeding ‚P‚O‚O µm, because of "SHORT". But some pieces record over 1000 µm when heated. At the present, Many Maker are supplying with NO-STRAIGHTEN for this sized, too. That's why, many people has made damaging Tip or Screw as the commonly troubles.

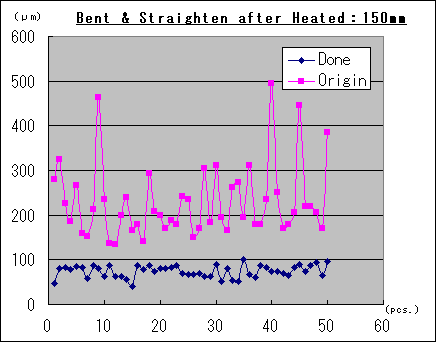

150mm's

As the Long Type are bent much more than shot type's, we treat at special way for better condition. At the present, Many Maker are supplying at less than about850µm or with NO-STRAIGHTEN for this sized, too. That's why, many people has made damaging Tip or Screw as the commonly troubles.

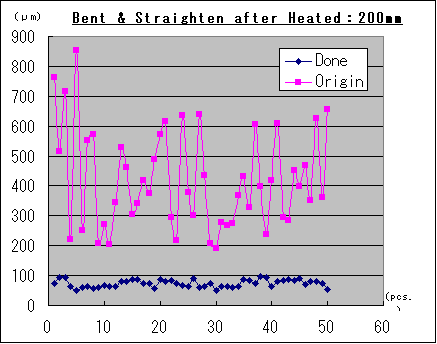

200mm's

As the Long Type are bent much more than shot type's, we treat at special way for better condition. At the present, Many Maker are supplying at less than about 1000µm or with NO-STRAIGHTEN for this sized, too. That's why, many people has made damaging Tip or Screw as the commonly troubles.

How to Order:

Picture Part Number Description Packing
GFB211M Phillips (+) 2Both Sides, 45mm, 1pc 1-pc.bag
GFB212M Phillips (+) 2Both Sides, 45mm, 2 pcs 2-pcs.bag
  GFB210MP Phillips (+) 2Both Sides, 45mm, 10 pcs 10-pcs.Case
GFB221M Phillips (+) 2 Both Sides, 65mm, 1pc 1-pc.Bag
GFB222M Phillips (+) 2 Both Sides, 65mm, 2pcs 2-pcs.Bag

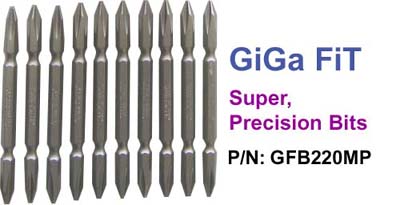

GFB220MP Phillips(+) 2 Both Sides, 65mm, 10pcs 10-pcs.Case
GFB241M Phillips (+) 2 Both Sides,110mm, 1pc 1-pc.bag
GFB242M Phillips (+) 2 Both Sides,110mm, 2pcs 2-pcs.bag

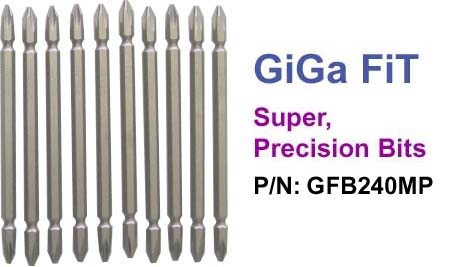

GFB240MP Phillips (+) 2 Both Sides, 110mm, 10pcs 10-pcs.into Case
  GFB261M Phillips (+) 2 Both Sides, 150mm, 1pc 1-pc.bag
  GFB262M Phillips (+) 2 Both Sides, 150mm, 2pcs 2-pcs.bag
  GFB281M Phillips (+) 2 Both Sides, 200mm, 1pc 1-pc.bag
  GFB282M Phillips (+) 2 Both Sides 200mm, 2pcs 2-pcs.bag
  GFB222S Phillips (+) 2 Single Side, 65mm, 2 pcs 2-pcs.bag
  GFB220SP Phillips (+) 2 Single Side, 65mm, 10 pcs 10-pcs.Case
  GFB242S Phillips (+) 2 Single Side, 110mm, 2 pcs 2-pcs.bag
  GFB240SP Phillips (+) 2 Single Side, 110mm, 10 pcs 10-pcs.Case
  GFB262S Phillips (+) 2 Single Side, 150mm, 2 pcs 2-pcs.bag
  GFB282S Phillips (+) 2 Single Side, 200mm, 2 pcs 2-pcs.bag
  |  Print page



Order Now Part Number Description Price
USD
GFB21 1M Phillips (+) 2Both Sides, 45mm, 1pc
Qty1 +
Price$1.36
GFB21 2M Phillips (+) 2Both Sides, 45mm, 2 pcs
Qty1 +
Price$2.10
GFB21 0MP Phillips (+) 2Both Sides, 45mm, 10 pcs
Qty1 +
Price$9.06
GFB22 1M Phillips (+) 2 Both Sides, 65mm, 1 pc
Qty1 +
Price$2.16
GFB22 2M Phillips (+) 2 Both Sides, 65mm, 2 pcs
Qty1 +
Price$3.81
GFB22 0MP Phillips (+) 2 Both Sides, 65mm, 10 pcs
Qty1 +
Price$17.33
GFB220SP Phillips (+) 2 Single Side, 65mm, 10 pcs
Qty1 +
Price$19.90
GFB222S Phillips (+) 2 Single Side, 65mm, 2 pcs
Qty1 +
Price$4.87
GFB24 1M Phillips (+) 2 Both Sides,110mm, 1 pc
Qty1 +
Price$3.87
GFB24 2M Phillips (+) 2 Both Sides,110mm, 2 pcs
Qty1 +
Price$5.87
GFB24 0MP Phillips (+) 2 Both Sides,110mm, 10 pcs
Qty1 +
Price$19.90
GFB240SP Phillips (+) 2 Single Side, 110mm, 10 pcs
Qty1 +
Price$29.99
GFB242S Phillips (+) 2 Single Side, 110mm, 2 pcs
Qty1 +
Price$7.01
GFB26 1M Phillips (+) 2 Both Sides, 150mm, 1 pc
Qty1 +
Price$4.20
GFB26 2M Phillips (+) 2 Both Sides, 150mm, 2 pcs
Qty1 +
Price$7.53
GFB262S Phillips (+) 2 Single Side, 150mm, 2 pcs
Qty1 +
Price$8.76
GFB28 1M Phillips (+) 2 Both Sides, 200mm, 1 pc
Qty1 +
Price$5.58
GFB28 2M Phillips (+) 2 Both Sides, 200mm, 2 pcs
Qty1 +
Price$9.99
GFB282S Phillips (+) 2 Single Side, 200mm, 2 pcs
Qty1 +
Price$11.68
