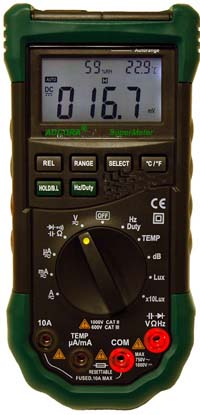

ACCURA™ SuperMeter - Multifunction Multimeter Measuring Temperature, Humidity, Sound Level, Light (LUX Meter), and having all Multimeter functions with auto protection.

All in one convenient, esthetic and roughed enclosure.

A MUST to have when doing any work in Electronics.

Designed for Development Laboratories, Prototyping Professionals and Service Centers

Features:

  • A 4000 Counts Meter with special designed features that no other meters can compare.
  • Auto and Manual Range
    Press range button to select manual or auto ranging
  • Built-in Temperature & Humidity Sensor
    When the meter is on, it will automatically show you what the temperature and humidity is on the LCD display (please refer to the photos above). You will know immediately that your tests or measurements which you do are done in a proper environment.
  • Light & Sound Alarm
    LED / Sound Warning when incorrect banana jacks are used relative to function switch setting (volt, amp, resistance), Red LEDs light up telling you which two jacks to be plugged in when you switch among functions.
  • Blue LED Back-lit LCD display
  • All range fused (resettable)
  • Data Hold
  • Relative measurement
  • Back stand and test leads holders

Accessories:

  • Test leads
  • K-Type thermo probe
  • User Manual

Specifications:

  • DCV: 400m/4/40/400/1000V, +/- 0.7%
  • ACV: 400m/4/40/400 +/- 0.8% 750V, +/- 1.0%
  • DCA: 400µ/4m/40m/400m +/- 1.2% 4/10A, +/- 2.0%
  • ACA: 400µ/4m/40m/400m +/- 1.5 % 4/10A, +/- 3.0%
  • Resistance: 400/4K/40K/400K/4M +/- 1.2% 40M, +/- 2.0%
  • Capacitance: 40n/400n/4m/40m/100mF ±3.0%
  • Frequency: 10/100/1K/10K/100KHz/200KHz ± 2.0%, >200KHz,reference only
  • Temperature: -20 - 1000 degrees C (0–1,800 degrees F ) +/- 3.0% (C/F selectable)
  • RH: 20–95%, +/- 5.0%
  • Lux: 4,000/40,000 Lux, +/- 5.0%
  • Sount dB: 40 – 100dB, +/- 3.5% @ 94dB
  • Diode test
  • Continuity tester: Buzzer if resistance is less than 40 ohms
  • Duty cycle: 0.1%-99.9% ± 3.0%
  • Dimensions and Weight: 195 x 92 x 55mm, 400g
  • Battery: 1.5 x 3 AAA
  |  Print page



Order Now Part Number Description Price
USD
SuperMeter Multifunction Multimeter Measuring Temperature, Humidity, Sound Level, Light (LUX Meter), and having all Multimeter functions with auto protection
Qty1 +
Price$99.95
