Bomir Brand of Tools

B-LT

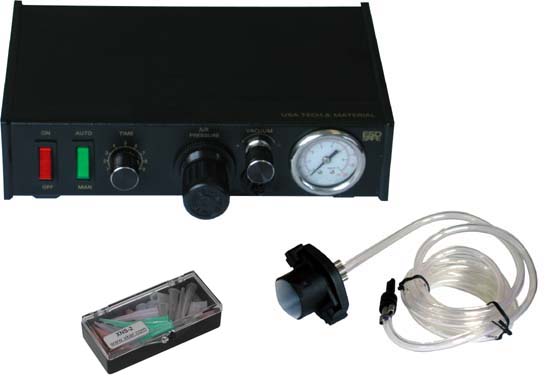

BM-100 - Dispensing Controller

BM-100 is a state of the art dispensing unit capable of dispensing fluids of very wide viscosity range (from water-like to heavy solder pastes).

Automatic Liquid Dispenser with time control, to push the liquid pneumatically, controlled by timer, to be sure the same dispensing drops and dispensing cycle time, regulated the air pressure with suitable tip at your equipment of the different liquids as glues, greases, solder pastes.

Features:

  • Constant flow solenoid.
  • Adjustable pull-back for controlling the drip of fluid between dispense cycles
  • Timing adjustment in 0.01, 0.06, 0.16 or 0.26 seconds increments.

System includes

  • Base Unit
  • Dispensing Head Assembly for 10cc syringes
  • Dispensing needle set

Technical Specifications

Input Voltage

110-130V AC
220-240V AC

Internal Voltage

24 V

Operating Pressure

2 to 100 psi (0,2 to 7 bar)

Time Range

0.01 to 30 second

Cycle Initiation Maintained or Momentary
Repeat Tolerance ± 0.5%
Air Source Shop Air or Compressor
2.5 - 7 bar (25-100 psi)
Air Output 0.1-5.5 bar (1-78 psi)
Weight 2.20 kg (6.6 lbs.)
System dimensions 235 x 225 x 63 mm
8.9" x 6.5" x 3.5"

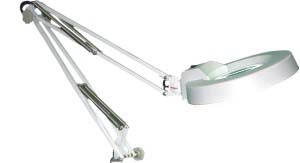

B-MAGLIGHT
ECONO ILLUMINATED MAGNIFIER

Features:

  • Table top magnifying lamp with clamp
  • Input voltage: 110V 60Hz or 220V 50Hz
  • Power: 22W (Fluorescent Light Bulb)
  • Magnification: 3X
  • Lens diameter: 4.92" (125mm)
  • Color: light grey

Applications:

  • Bench top additional light source for assembly, rework or inspection
  • Office use
This is a low cost unit to provide an additional light, where is needed. Adjustable arm with springs allows positioning of the lamp head with magnifier at desired location.

B-SST-5 - SOLDER REEL STAND

SST-5 - SOLDER REEL STAND

Features:

  • Allows to keep your bench neat
  • Wire is drawn from the roll smoothly
  • Has heavy base to stay firmly on the bench
  • Max. 2.2 lbs. (1 kg.) roll of solder wire can be used

Technical specification

Shaft Diameter 0.59" (15mm)
Dimensions 3.39" x 4.49" x 3.07"
(86 x 114 x 78 mm)
Wight 1.21 lbs. (550g)

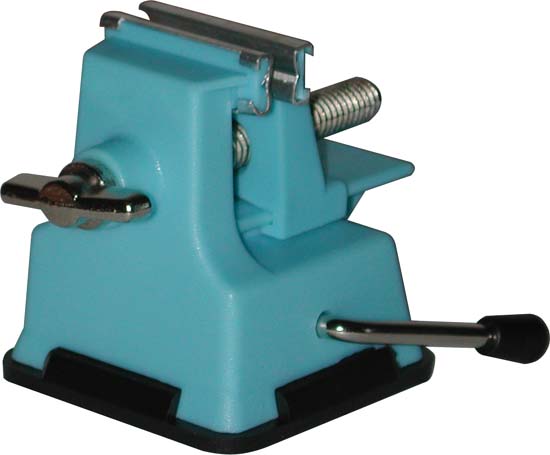

BMV-1 Mini Vise

BMV-1 Mini Vise

Friendly Universal Holder helpful in testing or assembly

No screws. Lever-operated suction cup holds tightly and instantly on non-porous smooth surfaces such as glass, metal or laminated surfaces such as Formica. Max opening: 1-1/4"

  |  Print page



Order Now Part Number Description Price
USD
Bomir Low Cost
B-LT NON CONTACT LASER THERMOMETER
Qty1 +
Price$69.90
BM-100-115 Fluid Dispensing System, 110-120V AC
Qty1 +
Price$339.00
BM-100-230 Fluid Dispensing System, 220-240V AC
Qty1 +
Price$439.00
B-MAGLIGHT -115V ECONO ILLUMINATED MAGNIFIER, 110-120V AC, 60Hz
Qty1 +
Price$89.90
B-MAGLIGHT -230V ECONO ILLUMINATED MAGNIFIER, 220-240V AC, 50Hz
Qty1 +
Price$89.90
B-SST-5 Solder reel stand
Qty1 +
Price$6.95
BMV-1 Mini Vise
Qty1 +
Price$6.49
