Xtractor XF-10 / XF-VT2 Range - High Vacuum (Tip) Extraction Units
Features
  • High Vacuum (Tip) Extraction Units
  • Designed specifically for portability and extremely low noise levels.
  • These high vacuum units are designed to extract and filter fumes and debris through small bore hoses and attachments. Ideally suited for soldering iron tip extraction, vac pens, flexi fume arms and any application requiring close proximity micro extraction.

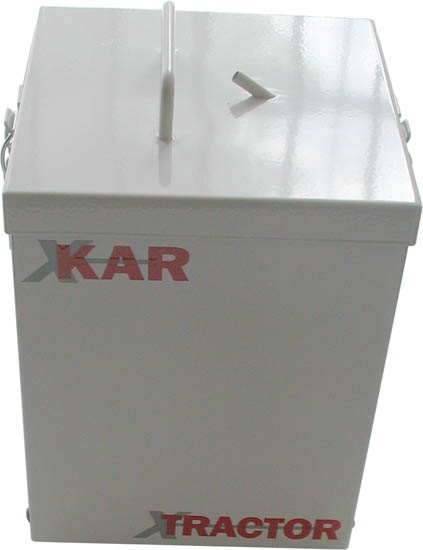

XF-10 XTRACTOR

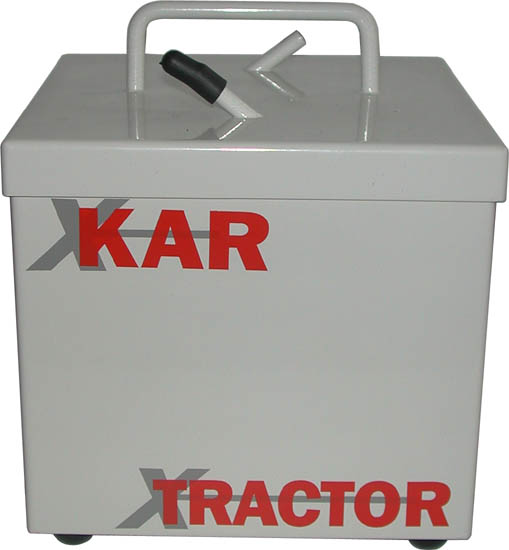

XF-VT2 XTRACTOR

XF-10 EXTRACTOR

XF-VT2 EXTRACTOR

Unit Specifications
System Dimensions
mm
HxDxW
Weight
Kg
Flow Rate
 4.5mm I/D
Hose
Power
Unit
Rated
 Output
kW
Voltage Noise
Level
dBA
Air requirements
Pressure Flow
XF-VT2 170x150x170 1 22-30 L/ M Air Ejector 0.12 230IpH <39 6 Bar 0.6 NI/S

System Dimensions
mm
HxDxW
Weigh
Kg
Flow Rate
4.5mm I/D
Hose
Power
Unit
Rated
Output
kW
Voltage Noise
Level
dBA
Duct
Size
mm
Duct
Run
mtrs
Filter
Efficiency %
@ 1┬Ám
XF-10 220x171x171 5 22-24 L/M Linear Pump 0.06 230IpH <48 - - 99.997
  |  Print page



Order Now Part Number Description Price
USD
Filters for XF-10 / XF-VT2
XF-10-CF Combined Filter for XF-10 / XF-VT2 Systems
Qty1 +
Price$199.90
XF-10-PF Pre-Filter (Pack of 5) for XF-10 / XF-VT2 Systems
Qty1 +
Price$23.90
