B-HAB HOT AIR REWORK BASIC

This Basic Tool will allow anyone to solder and de-solder most of SMD components from variety of PCB's. It was designed to be a low cost solution for companies which do SMT Rework occasionally.

The B-HAB Hot Air Tool is portable and can be easily used in the field.

Features:

  • CPU control to precisely control both temperature and air flow to tight specifications.
  • Fully digital settings and visual display for easy use and control.
  • Temperature adjustable from 100 °C to 480 °C space saving design.
  • Built-in fan for air control eliminates need for separate air pump.
  • There different nozzles sizes included.
  • Can be used for QFP, SOP, PLCC and BGA ICs.

Airflow adjustment.

Temperature adjustment.

Reworking components.

Flexible & convenient handling position.

Specifications:

Power Input 110V or 230V
Power Consumption 550W
Temperature Range 100 °C - 480 °C
Heating Element Durable, wire-wound with K TC
Pump/Motor Type Turbine Motor
Air Capacity 30 l /min (max)
Station Dimensions 7.7 diameter x 277 length (mm)
Weight 1 Kg

How to Order

Part Number Description
B-HABe HOT AIR REWORK BASIC, 230V AC
B-HABa HOT AIR REWORK BASIC, 115V AC

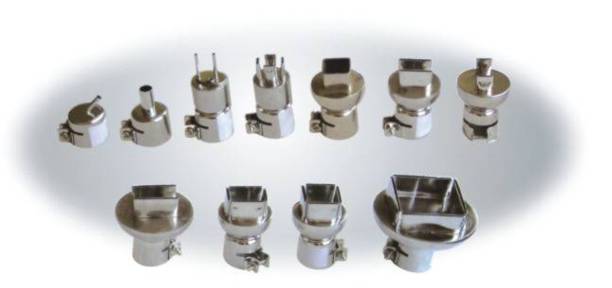

Nozzles (Fit most of the industry hot air tools).

B-HAB Nozzles Code DESCRIPTION
B-2.5 1124 Single ø2.5mm
B-4.4 1130 Single ø4.4mm
B-6 1194 Single ø6mm
B-8 1195 Single ø8mm
B-7 1196 Single ø7mm
B-9 1197 Single ø9mm
B-12 1198 Single ø12mm
B-3 1142 Bent Single ø3mm
B-5-10 1325 Adjustable pitch 5-10mm
B-Sip25 1191 Sip25L
Nozzle length 26mm
B-Sip50 1192 Sip50L
Nozzle length 52.5mm

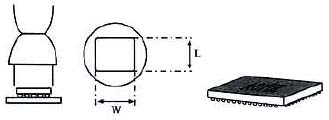

B-B9x9 1010 BGA 9x9mm
Nozzle size 10x10mm
B-B12X12 1313 BGA 12x12mm
Nozzle size 13x13mm
B-B15X15 1616 BGA 15x15mm
Nozzle size 16x16mm
B-B18X18 1919 BGA 18x18mm
Nozzle size 18x18mm
B-B27X28 2828 BGA 27x27mm
Nozzle size 28x28mm
B-B36X36 3636 BGA 35x35mm
Nozzle size 36x36mm
B-B38X38 3939 BGA 38x38mm
Nozzle size 41x41mm
B-B40X40 4141 BGA 40x40mm
Nozzle size 41x41mm

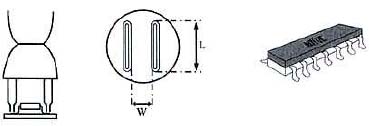

B-SP4.4X10 1131 SOP 4.4x10mm
Nozzle size 4.8x10mm
B-SP5.6X13 1132 SOP 5.6x13mm
Nozzle size 5.7x15mm
B-SP7.5X15 1133 SOP 7.5x15mm
Nozzle size 7.2x16mm
B-SP7.5X1.8 1134 SOP 7.5x18mm
Nozzle size 7.2x19mm
B-SP11X21 1257 SOP 11x21mm
Nozzle size 11.7x21mm
B-SP7.6X12.7 1258 SOP 7.6x12.7mm
Nozzle size 8.2x11.7mm
B-SP13X28 1259 SOP 13x28mm
Nozzle size 13.5x29mm
B-SP8.6X18 1260 SOP 8.6x18mm
Nozzle size 8.7x19mm

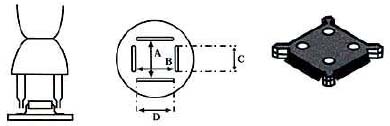

B-QF17x17 1180 BQFP 17x17mm
Nozzle size: A=B=18.2,
C=D=13.6mm
B-QF19x19 1181 BQFP 19x19mm
Nozzle size: A=B=19.2,
C=D=16mm
B-QF24x24 1182 BQFP 24x24mm
Nozzle size: A=B=24.2,
C=D=21mm
B-QF35x35 1203 BQFP 35x35mm
Nozzle size: A=B=35.2,
C=D=30.6mm
B-HAB Nozzles Code DESCRIPTION

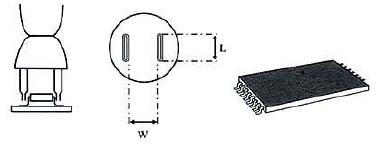

B-TS13X10 1185 TSOP 13x10mm
Nozzle size: 11.9x10
B-TS18X10 1186 TSOP 18x10mm
Nozzle size: 18.2x11.7
B-TS18.5X8 1187 TSOP 18.5x8mm
Nozzle size: 18.5x10

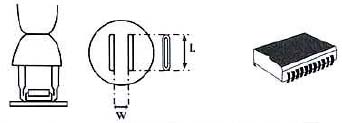

B-SJ15X8 1183 SOJ 15x8mm
Nozzle size: 16x8
B-SJ18X8 184 SOJ 18x8mm
Nozzle size: 19x10
B-SJ10X26 1214 SOJ 10x26mm
Nozzle size: 25.9x12

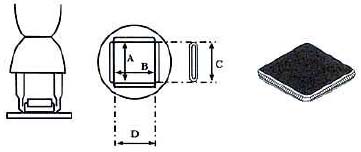

B-P17.5X17.5 1135 PLCC 17.5x17.5mm
Nozzle size: A=B=18.5,
C=D=15mm
B-P20X20 1136 PLCC 20x20mm
Nozzle size: A=B=21,
C=D=19mm
B-P25X25 1137 PLCC 25x25mm
Nozzle size: A=B=26,
C=D=24mm
B-P30X30 1138 PLCC 30x30mm
Nozzle size: A=B=31,
C=D=29mm
B-P7.3X12.5 1139 PLCC 7.3x12.5mm
Nozzle size: A=9, B=14,
C=D=6.9mm
B-P11.5X11.5 1140 PLCC 11.5x11.5mm
Nozzle size: A=B=35.2,
C=D=30.6mm
B-P11.5X14 1141 PLCC 11.5x14mm
Nozzle size: A=15, B=13,
C=15, D=10mm
B-P9X9 1188 PLCC 9x9mm
Nozzle size: A=B=11,
C=D=10mm
B-P34X34 1189 PLCC 34x34mm
Nozzle size: A=B=36.5,
C=D=33.5mm

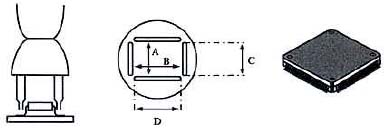

B-Q10X10 1125 QFP 10x10mm
Nozzle size: A=B=10.2,
C=D=10mm
B-Q14X14 1126 QFP 14x14mm
Nozzle size: A=B=15.2,
C=D=15mm
B-Q17.5X17.5 1127 QFP 17.5x17.5mm
Nozzle size: A=B=19.2,
C=D=19mm
B-Q14X20 1128 QFP 14x20mm
Nozzle size: A=15.2, B=21.2
C=15, D=21mm
B-Q28X28 1129 QFP 28x28mm
Nozzle size: A=B=29.5,
C=D=29mm
B-Q42.5X42.5 1215 QFP 42.5x42.5mm
Nozzle size: A=B=42.5,
C=D=40mm
B-Q20X20 1261 QFP 20x20mm
Nozzle size: A=B=20.2,
C=D=21mm
B-Q12X12 1262 QFP 12x12mm
Nozzle size: A=B=12.2,
C=D=12mm
B-Q28X40 1263 QFP 28x40mm
Nozzle size: A=27.7, B=39.7,
C=29, D=39mm
B-Q40X40 1264 QFP 40x40mm
Nozzle size: A=B=40.2,
C=D=39mm
B-Q32X32 1265 QFP 32x32mm
Nozzle size: A=B=32.2,
C=D=31mm

Replacement Parts:

Voltage (v) Power
Consumption
Temperature Replacement
Heater
Weight (g) Individual Packing
110~120 5~500W 100~480 ºC
(212~896 ºF)
B-10096Ha 870 Box
220~240 5~500W 100~480 ºC
(212~896 ºF)
B-10096He 870 Box
  |  Print page



Order Now Part Number Description Price
USD
Hot Air Tools
  B-HAB a Hot Air Rework Basic SOLD OUT Not available at the moment , 110V Get quote
B-HAB a-S Hot Air Rework Basic SOLD OUT Not available at the moment , set including 15 nozzles (B-2.5, B-4.4, B-Q10x10, B-Q11x11, B-Q17.5x17.5, B-Q14x20, B-Q28x28, B-S4.4x10, B-S5.6x13, B-S7.5x15, B-S7.5x18, B-P17.5x17.5, B-P20x20, B-P25x25, B-P30x30), 110V
Qty1 +
Price$399.90
  B-HAB e Hot Air Rework Basic SOLD OUT Not available at the moment , 230V, CE Get quote
Nozzles
B-12 Nozzle 1198 Single ø12mm
Qty1 +
Price$14.90
B-2.5 Nozzle 1124, Single ø2.5mm
Qty1 +
Price$14.90
B-3 Nozzle 1142 Bent Single ø3mm
Qty1 +
Price$14.90
B-4.4 Nozzle 1130, Single ø4.4mm
Qty1 +
Price$14.90
B-5-10 Nozzle 1325 Adjustable pitch 5-10mm
Qty1 +
Price$14.90
B-6 Nozzle 1194 Single ø6mm
Qty1 +
Price$14.90
B-7 Nozzle 1196 Single ø7mm
Qty1 +
Price$14.90
B-8 Nozzle 1195 Single ø8mm
Qty1 +
Price$14.90
B-9 Nozzle 1198 Single ø12mm
Qty1 +
Price$14.90
B-B 12X12 BGA Nozzle 1313, BGA 12x12mm, Nozzle size 13x13mm
Qty1 +
Price$26.90
B-B 15X15 BGA Nozzle 1616, BGA 15x15mm, Nozzle size 16x16mm
Qty1 +
Price$26.90
B-B 18X18 BGA Nozzle 1919, BGA 18x18mm, Nozzle size 18x18mm
Qty1 +
Price$26.90
B-B 27X28 BGA Nozzle 2828, BGA 27x27mm, Nozzle size 28x28mm
Qty1 +
Price$26.90
B-B 36X36 BGA Nozzle 3636, BGA 35x35mm, Nozzle size 36x36mm
Qty1 +
Price$26.90
B-B 38X38 BGA Nozzle 3939, BGA 38x38mm, Nozzle size 41x41mm
Qty1 +
Price$26.90
B-B 40X40 BGA Nozzle 4141, BGA 40x40mm, Nozzle size 41x41mm
Qty1 +
Price$26.90
B-B 9x9 BGA Nozzle 1010, BGA 9x9mm, Nozzle size 10x10mm
Qty1 +
Price$26.90
B-P 11.5X11.5 PLCC Nozzle 1140, PLCC 11.5x11.5mm, Nozzle size: A=B=35.2, C=D=30.6mm
Qty1 +
Price$29.90
B-P 11.5X14 PLCC Nozzle 1141, PLCC 11.5x14mm, Nozzle size: A=15, B=13, C=15, D=10mm
Qty1 +
Price$29.90
B-P 17.5X17.5 PLCC Nozzle 1135, PLCC 17.5x17.5mm, Nozzle size: A=B=18.5, C=D=15mm
Qty1 +
Price$29.90
B-P 20X20 PLCC Nozzle 1136, PLCC 20x20mm, Nozzle size: A=B=21, C=D=19mm
Qty1 +
Price$29.90
B-P 25X25 PLCC Nozzle 1137, PLCC 25x25mm, Nozzle size: A=B=26, C=D=24mm
Qty1 +
Price$29.90
B-P 30X30 PLCC Nozzle 1138, PLCC 30x30mm, Nozzle size: A=B=31, C=D=29mm
Qty1 +
Price$29.90
B-P 34X34 PLCC Nozzle 1189, PLCC 34x34mm, Nozzle size: A=B=36.5, C=D=33.5mm
Qty1 +
Price$29.90
B-P 7.3X12.5 PLCC Nozzle 1139, PLCC 7.3x12.5mm, Nozzle size: A=9, B=14, C=D=6.9mm
Qty1 +
Price$29.90
B-P 9X9 PLCC Nozzle 1188, PLCC 9x9mm, Nozzle size: A=B=11, C=D=10mm
Qty1 +
Price$29.90
B-Q 10X10 QFP Nozzle 1125, QFP 10x10mm, Nozzle size: A=B=10.2, C=D=10mm
Qty1 +
Price$27.90
B-Q 12X12 QFP Nozzle 1262, QFP 12x12mm, Nozzle size: A=B=12.2, C=D=12mm
Qty1 +
Price$27.90
B-Q 14X14 QFP Nozzle 1126, QFP 14x14mm, Nozzle size: A=B=15.2, C=D=15mm
Qty1 +
Price$27.90
B-Q 14X20 QFP Nozzle 1128, QFP 14x20mm, Nozzle size: A=15.2, B=21.2, C=15, D=21mm
Qty1 +
Price$27.90
B-Q 17.5X17.5 QFP Nozzle 1127, QFP 17.5x17.5mm, Nozzle size: A=B=19.2, C=D=19mm
Qty1 +
Price$27.90
B-Q 20X20 QFP Nozzle 1261, QFP 20x20mm, Nozzle size: A=B=20.2, C=D=21mm
Qty1 +
Price$27.90
B-Q 28X28 QFP Nozzle 1129, QFP 28x28mm, Nozzle size: A=B=29.5, C=D=29mm
Qty1 +
Price$27.90
B-Q 28X40 QFP Nozzle 1263, QFP 28x40mm, Nozzle size: A=27.7, B=39.7, C=29, D=39mm
Qty1 +
Price$27.90
B-Q 32X32 QFP Nozzle 1265, QFP 32x32mm, Nozzle size: A=B=32.2, C=D=31mm
Qty1 +
Price$27.90
B-Q 40X40 QFP Nozzle 1264, QFP 40x40mm, Nozzle size: A=B=40.2, C=D=39mm
Qty1 +
Price$27.90
B-Q 42.5X42.5 QFP Nozzle 1215, QFP 42.5x42.5mm, Nozzle size: A=B=42.5, C=D=40mm
Qty1 +
Price$27.90
B-QF 17x17 BQFP Nozzle 1180, BQFP 17x17mm, Nozzle size: A=B=18.2, C=D=13.6mm
Qty1 +
Price$27.90
B-QF 19x19 BQFP Nozzle 1181, BQFP 19x19mm, Nozzle size: A=B=19.2, C=D=16mm
Qty1 +
Price$27.90
B-QF 24x24 BQFP Nozzle 1182, BQFP 24x24mm, Nozzle size: A=B=24.2, C=D=21mm
Qty1 +
Price$27.90
B-QF 35x35 BQFP Nozzle 1203, BQFP 35x35mm, Nozzle size: A=B=35.2, C=D=30.6mm
Qty1 +
Price$27.90
B-Sip 25 Nozzle 1191, Sip25L, Nozzle length 26mm
Qty1 +
Price$14.90
B-Sip 50 Nozzle 1192, Sip50L, Nozzle length 52.5mm
Qty1 +
Price$14.90
B-SJ 10X26 SOJ Nozzle 1214, SOJ 10x26mm, Nozzle size: 25.9x12
Qty1 +
Price$24.90
B-SJ 15X8 SOJ Nozzle 1183, SOJ 15x8mm, Nozzle size: 16x8
Qty1 +
Price$24.90
B-SJ 18X8 SOJ Nozzle 184, SOJ 18x8mm, Nozzle size: 19x10
Qty1 +
Price$24.90
B-SP 11X21 SOP Nozzle 1257, SOP 11x21mm, Nozzle size 11.7x21mm
Qty1 +
Price$24.90
B-SP 13X28 SOP Nozzle 1259, SOP 13x28mm, Nozzle size 13.5x29mm
Qty1 +
Price$24.90
B-SP 4.4X10 SOP Nozzle 1131, SOP 4.4x10mm, Nozzle size 4.8x10mm
Qty1 +
Price$24.90
B-SP 5.6X13 SOP Nozzle 1132, SOP 5.6x13mm, Nozzle size 5.7x15mm
Qty1 +
Price$24.90
B-SP 7.5X15 SOP Nozzle 1133, SOP 7.5x15mm, Nozzle size 7.2x16mm
Qty1 +
Price$24.90
B-SP 7.5X18 SOP Nozzle 1134, SOP 7.5x18mm, Nozzle size 7.2x19mm
Qty1 +
Price$24.90
B-SP 7.6X12.7 SOP Nozzle 1258, SOP 7.6x12.7mm, Nozzle size 8.2x11.7mm
Qty1 +
Price$24.90
B-SP 8.6X18 SOP Nozzle 1260, SOP 8.6x18mm, Nozzle size 8.7x19mm
Qty1 +
Price$24.90
B-TS 13X10 TSOP Nozzle 1185, TSOP 13x10mm, Nozzle size: 11.9x10
Qty1 +
Price$25.90
B-TS 18.5X8 TSOP Nozzle 1187, TSOP 18.5x8mm, Nozzle size: 18.5x10
Qty1 +
Price$25.90
B-TS 18X10 TSOP Nozzle 1186, TSOP 18x10mm, Nozzle size: 18.2x11.7
Qty1 +
Price$25.90

Get quote - Special Order. Please e-mail or fax at 570.842.4290 for pricing.
