SAC305 - Lead Free Bar Solder

Alloy: SAC305 (Sn96.5/Ag3.0/Cu0.5)

Features

  • Lowest cost Sn-Ag-Cu alloy
  • Low melting point for a Pb-free alloy (217°C -218°C)
  • Best wetting Sn-Ag-Cu alloy
  • Compatible with all flux types
  • Excellent solder joint reliability
  • Excellent fatigue resistance

SAC305 is a lead-free alloy that contains 96.5 % tin, 3% silver, and 0.5% copper. This alloy falls under the JEIDA recommendation for lead-free soldering. SAC305 is a near drop-in replacement for 63Sn/37Pb for wave soldering and hand soldering applications and has proven to perform very well in SMT applications. When used in wave soldering, SAC305 produces less dross than other solder alloys, wets well, and provides superior joint strength. SAC305 may be used with existing equipment, processes, coatings, and flux chemistries. The SAC305 alloy is available in bar, cored wire, solid wire, foil, preforms, powder, and no-clean, water soluble and rosin solder pastes. SAC305 no-clean solder pastes pass all Bellcore and IPC specifications.

Technical Data Sheet: Alloy Lead-Free SAC305.pdf

MSDS: Alloy SAC305 (Solders-Alloys).pdf

Available products:

P/N Description Aprox. Weight
B-SAC-0.5b SAC305 Lead Free Bar Solder, bar dimension 6 1/2" x 1" side Triangle, 1/2 bar 1.25 lb
B-SAC-1b SAC305 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 1 bar 2.5 lb
B-SAC-2b SAC305 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 2 bars 5 lb
B-SAC-10b SAC305 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 10 bars 25 lb

SN100 Lead Free Bar Solder

Alloy: SN100C (Sn/Cu/Ni)

Features

  • Does not contain silver or bismuth.
  • Eutectic alloy.
  • Bridge-free and icicle-free soldering.
  • Smooth, bright, well-formed fillets, free of gross micro-cracks, irrespective of the cooling rate.
  • Good through-hole penetration.
  • Good topside fillet formation.
  • Dross rate equal or lower than tin-lead solder.
  • Does not require a nitrogen atmosphere.
  • Does not erode copper from holes, pads and tracks.
  • Low rate of copper leaching makes it easy to control the copper content of the solder bath.
  • Lower aggressiveness to stainless steel and other solder pot materials as compared to tinsilver- copper alloys.
  • Thermal fatigue resistance and creep strength better than tin-lead.
  • Slow, even growth of the intermetallic layer at the solder/substrate interface.
  • Also performs well in selective and dip soldering.

SN100C is a lead-free solder alloy developed by Nihon Superior in Japan that is comprised of tin, copper, and a small amount of nickel. SN100C offers user-friendly properties and has been proven in commercial production for over six years. The result of these advantages is that SN100C offers high-throughput and the lowest cost of ownership as compared to any other lead-free solder alloy.

Technical Data Sheet: SN100C Alloy Tech Data Sheet

Available products:

P/N Description Aprox. Weight
B-SN100-0.5b SN-100 Lead Free Bar Solder, bar dimension 6 1/2" x 1" side Triangle, 1/2 bar 1.25 lb
B-SN100-1b SN-100 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 1 bar 2.5 lb
B-SN100-2b SN-100 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 2 bars 5 lb
B-SN100-10b SN-100 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 10 bars 25 lb

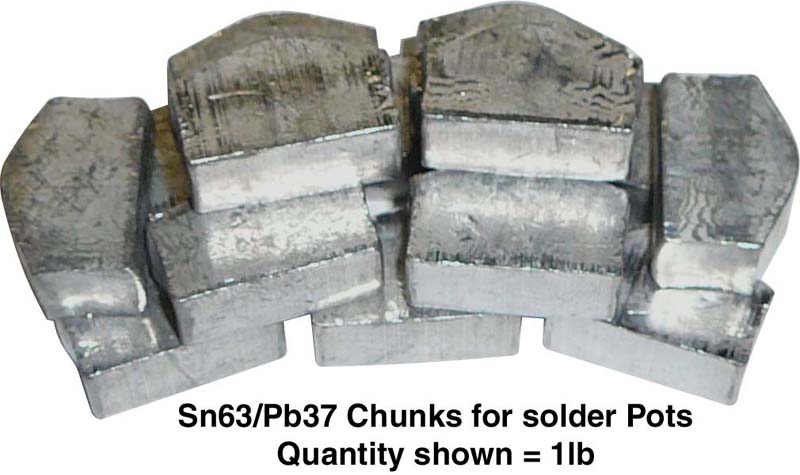

63Sn/Pb37 - Solder in Chunks

Alloy: 63Sn/Pb37

Features

  • High purity
  • Melting temperature - 183°C

63Sn/37Pb is composed of 63% Tin, and 37% Lead. This is a eutectic alloy with a melting point of 183°C ( 361°F). Typical applications are plating, where 63/37 is primarily used as a coating for corrosion protection, and as a base for soldering. This alloy is available in solid wire, bar, and chunks.

MSDS: Alloy_Sn63Pb37.pdf

Available products:

P/N Alloy Description Apx. Weight
C-CH-1 Sn63/Pb37 Solder Sn63/Pb37 Solder in Chunks, 14 chunks, 1 package = 1lb 1 lb
C-CH-10 Sn63/Pb37 Solder Sn63/Pb37 Solder in Chunks, 140 chunks, 1 package = 10lb 10 lb
  |  Print page



Order Now Part Number Description Price
USD
Bar Solder
B-SAC-0.5b SAC305 Lead Free Bar Solder, bar dimension 6 1/2" x 1" side Triangle, 1/2 bar, 1.25 lb
Qty1 +
Price$35.99
B-SAC-1b SAC305 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 1 bar, 2.5 lb
Qty1 +
Price$69.90
B-SAC-2b SAC305 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 2 bars, 5 lb
Qty1 +
Price$134.90
B-SAC-10b SAC305 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 10 bars, 25 lb
Qty1 +
Price$669.90
B-SN100-1b SN-100 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 1 bar, 2.5 lb
Qty1 +
Price$42.90
B-SN100-2b SN-100 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 2 bars, 5 lb
Qty1 +
Price$84.90
B-SN100-10b SN-100 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 10 bars, 25 lb
Qty1 +
Price$419.90
C-CH-1 Sn63/Pb37 Solder in Chunks, 14 chunks, 1 package = 1lb
Qty1 +
Price$16.90
C-CH-10 Sn63/Pb37 Solder in Chunks, 140 chunks, 1 package = 10lb
Qty1 +
Price$149.00
