Return to SBGA Super Ball Grid Array

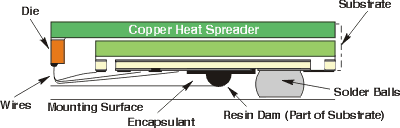

SBGA Cross-Section Drawing

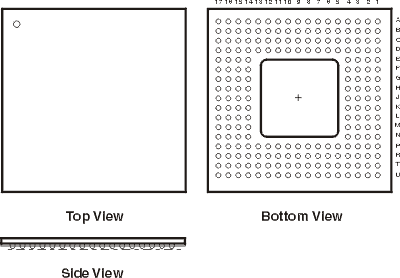

SBGA Drawing

SBGA Solder Flow Drawing



Package Pitch A B C D
SBGA 1.27mm .76 .62 .52 .63
  • All units in mm.
  • Assumptions: 5 mils solder paste. Solder mask defined pad. Typical motherboard no solder mask defined pad:
    0.50 Pitch – 0.280.80
    Pitch – 0.301.00
    Pitch – 0.38
