PRECISION BOARD HOLDERS
FOR ASSEMBLY AND REWORK

DESIGNED TO ALLOW BOTTOM PREHEAT

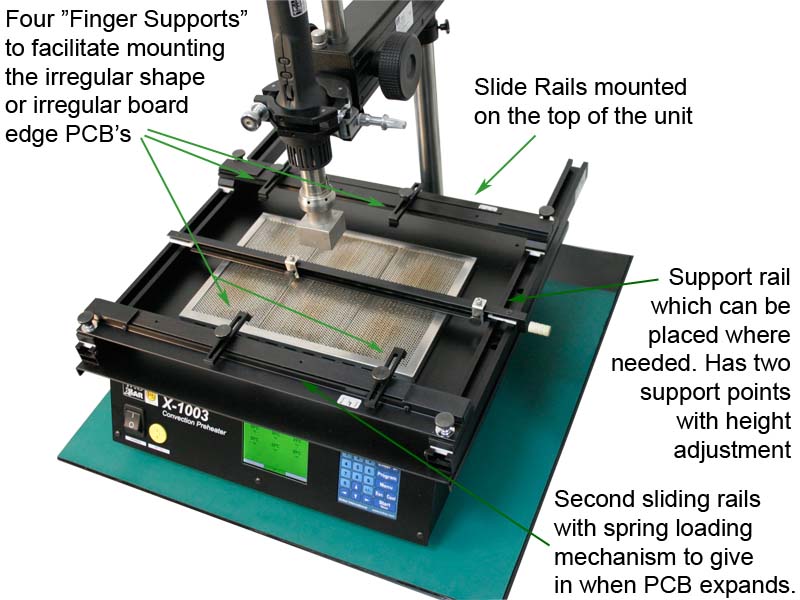

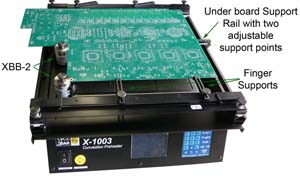

XU-6 PCB Holder for X-1003 Preheater

XU-6 PCB Holder especially designed for this pre-heater to well support large boards

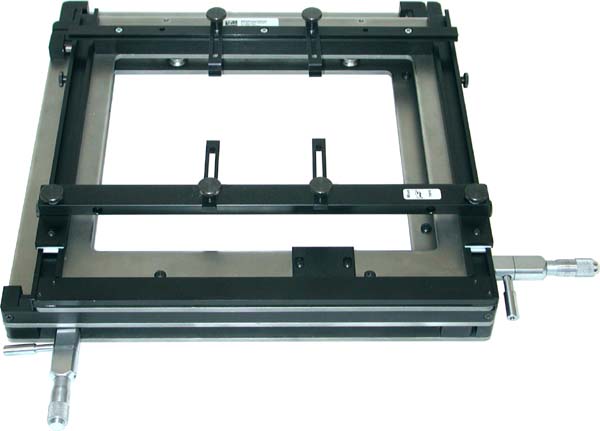

XU-5

XU-5
Open Frame Board Holder with X-Y micrometer positioning of PCB
for boards up to 14" wide

  • Can be attached to all X-KAR Bases or used as a free-standing X-Y precision positioning stage.
  • Open Frame construction for use with under board pre-heaters.
  • Stainless steel base.
  • Quick approximate alignment in both axis with convenient half-turn blocking mechanism.
  • Fine, precise X, Y adjustment (up to 1/2" or 10mm) with micrometers.
  • Spring loaded holding mechanism on one side of the board holder for easy replacement of boards.
  • Mounting arms for irregular shape boards.

XU-4_1mm.jpg XU-4ok.jpg
XU-4_XU-4L

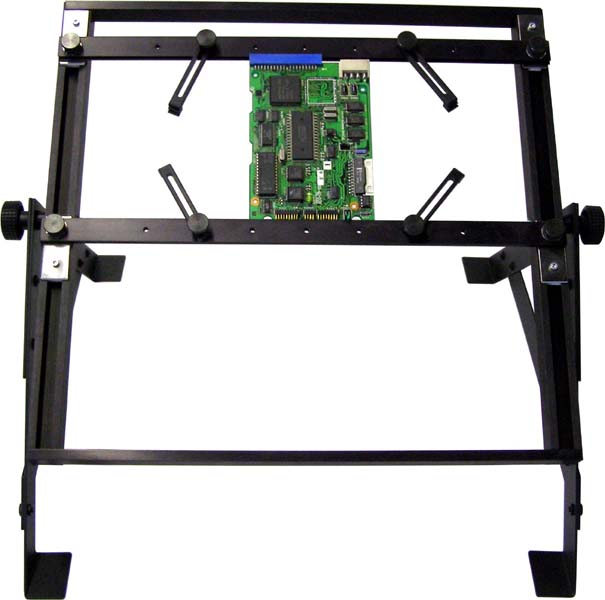

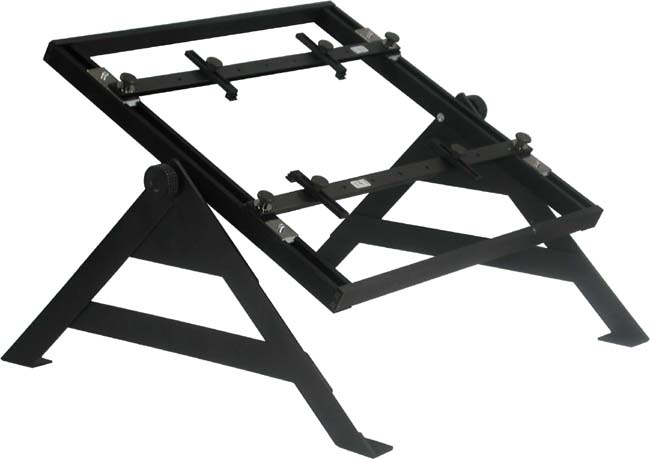

XU-4
Flip Rack

  • Rotates 360 degrees
  • Can handle boards up to 10.3" x 16.1".
  • It has become the standard in the industry for hand assembly of circuit boards when the operator must work on the top and bottom of the board.
  • Spring loaded holding mechanism on one side of the board holder for easy replacement of boards.
  • Includes four adjustable, universal arms to hold and support irregular shape boards.

XU-4L
Flip Rack for large boards

  • Rotates 360 degrees.
  • Can handle boards up to 16" x 18".
  • It has become the standard in the industry for hand assembly of circuit boards when the operator must work on the top and bottom of the board.
  • Spring loaded holding mechanism on one side of the board holder for easy replacement of boards.
  • Includes four adjustable, universal arms to hold and support irregular shape boards.

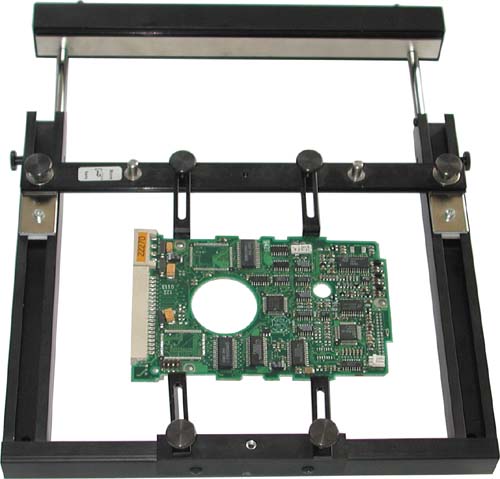

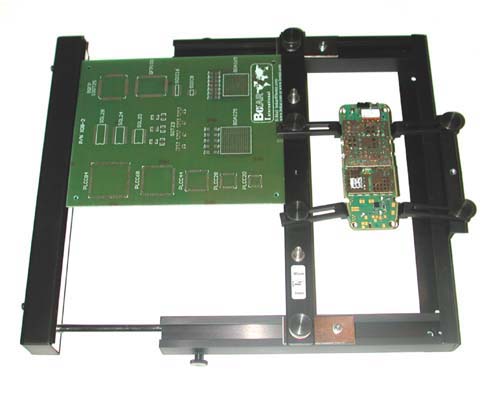

XU-1S

XU-1S
Universal, Retractable Board Holder for boards up to 12" wide

  • Can handle boards up to 12" wide.
  • Spring Loaded Holding on one side for easy replacement of the boards.
  • Includes four adjustable, universal arms to hold and support irregular shape boards.
  • Unique, universal design for someone who handles variety of board sizes.
  • Open Frame, to allow for bottom pre-heat.

Specifications

Max board dimensions 12" (305 mm) x open end
Height from the bottom of the feet
to the bottom of the PCB
1.07'
(27 mm)
Weight 1.54 lbs (0,7 kg)
Shipping Package Weight 1.76 lbs 0,8 kg

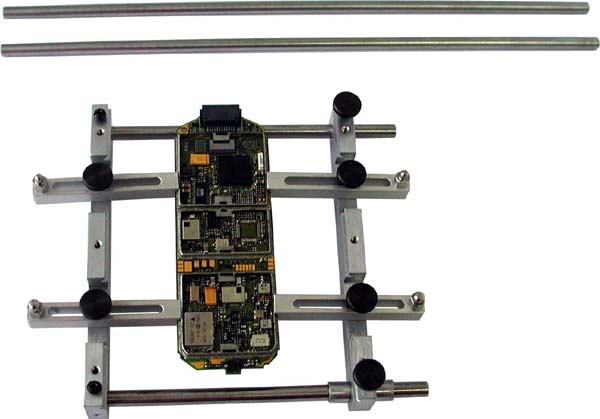

XU-Mini Irregular Shape PCB Holder (eg. Cellular Phone)
XU-Mini

XU-Mini
Irregular Shape PCB Holder (Will handle boards up to 10" wide)

Universal PCB Holder. Handles regular shape, small and middle size boards and also irregular shape boards. A board can be held by the sides or supported by four adjustable arms. The arms are reversible. One side has pins to hold the board via mounting holes and the other side has stepped groves to hold the board by the edges. XU-Mini is fully ESD. It is made from chromium-plated bronze to add weight for stability.

Features:

  • Can hold very small boards and the boards up to 10" (254mm) wide.
  • Supporting sides are 5" ( 125mm) long.
  • Open Frame, to allow bottom pre-heating.

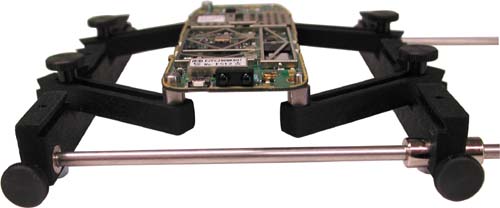

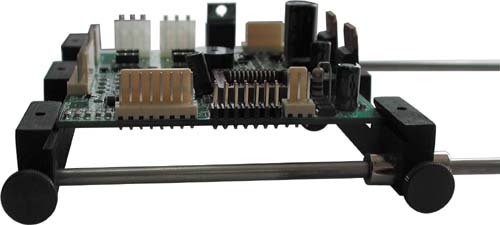

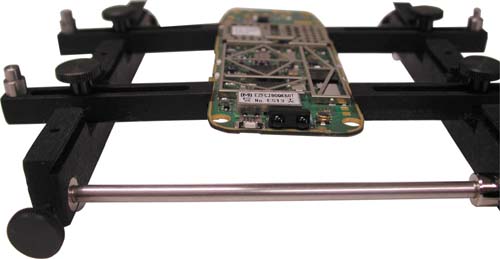

XU-Mini with sample PCB held in three different ways.

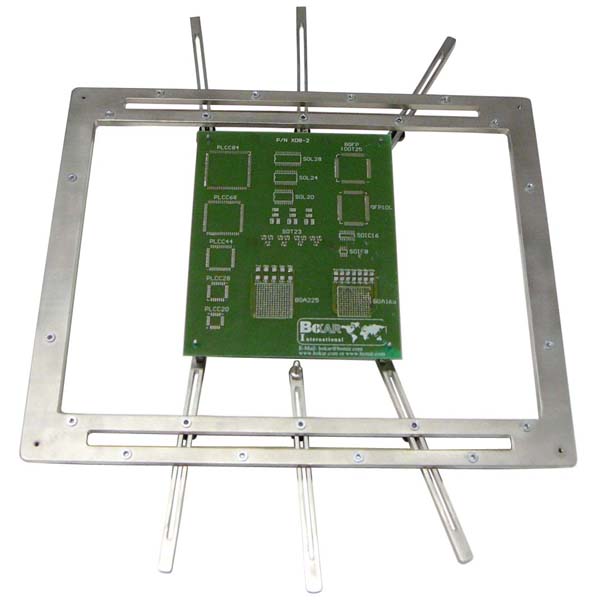

XU-7

XU-7 Quick Change Board Fixture for rework of multiple boards with positioning holes

Featutres:

  • Build for life. Stainless Steel ¼" Base and holding "Fingers"
  • Six "Fingers" to reach holes in large boards in difficult to reach locations
  • Quick change over to the next board in rework of multiple boards of the same kind (important for Computer Mother Board Service Companies and others re-working same kind of boards.

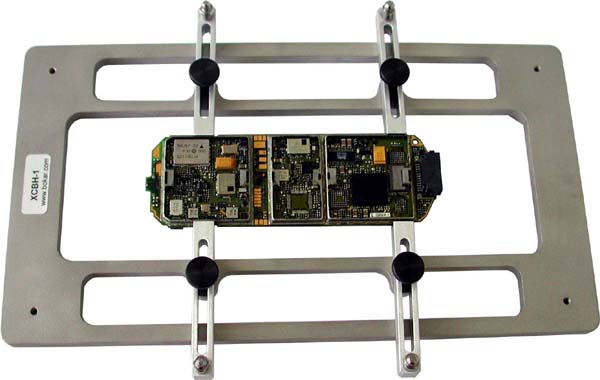

XCBH-1

XCBH-1
Board Holder for Cellular Phone Boards

It has durable, stainless steel base and adjustable, multi-function arms to match most Cellular Phone Boards. It includes a set of pins to match different mounting holes sizes and open frame to allow bottom pre-heating. It is commonly used by the cellular phone repair centers where multiple boards need to be re-worked. Stainless steel construction gives the board holder extra weight for stability. XCBH-1 is resistant to chemicals (fluxes, pastes, etc.).


All X-KAR XU Series Board Holders are designed to have smooth movement of slides on the rails to minimize board insertion time. Spring-loaded holder on one side further enhances board placement. They are retractable to save space when working on smaller boards.

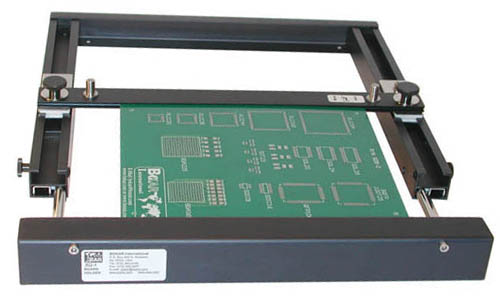

XU-1 Basic Retractable BOARD HOLDER for boards up to 12" wide.
XU-1

XU-1
Basic Retractable Board Holder
for boards up to 12" wide

Specifications

Max board dimensions 305 mm (12") x open end
Height from the bottom of the feet
to the bottom of the PCB
27 mm
(1.07')
Weight 0,5 kg (1.1 lbs)
Shipping Package Weight 0,6 kg (1.33 lbs)

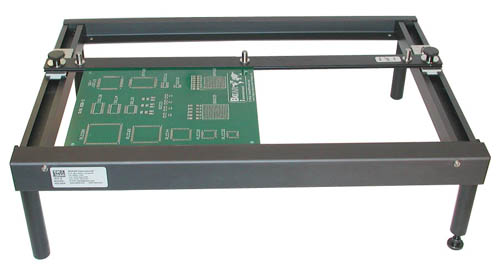

XU-2 LARGE SIZE BOARD HOLDER
XU-2

XU-2
Large Size Board Holder
for boards up to 14" wide

Specifications

Max board dimensions 356 mm (14") x open end
Height from the bottom of the feet
to the bottom of the PCB
116,5 mm
(4.59”)
Weight 1,35 kg (3 lbs)
Shipping Package Weight 1,5 kg (3.3 lbs)

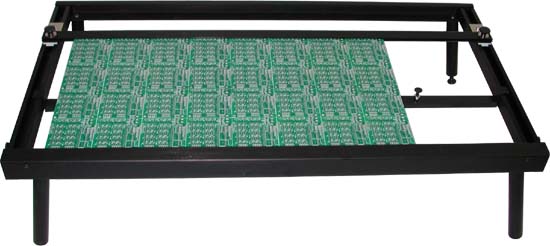

XU-3 EXTRA LARGE SIZE BOARD HOLDER
XU-3

XU-3
Extra Large Size Board Holder
for boards up to 21" wide

This extra large Board Holder was developed for customers who must handle very large boards. An additional rail was added for better board support.

Specifications

Max board dimensions 533 mm (21") x open end
Height from the bottom of the feet
to the bottom of the PCB
140 mm
(5.56")
Additional board support rail
Weight 2 kg (4.4 lbs)
Shipping Package Weight 2,2 kg (4.9 lbs)

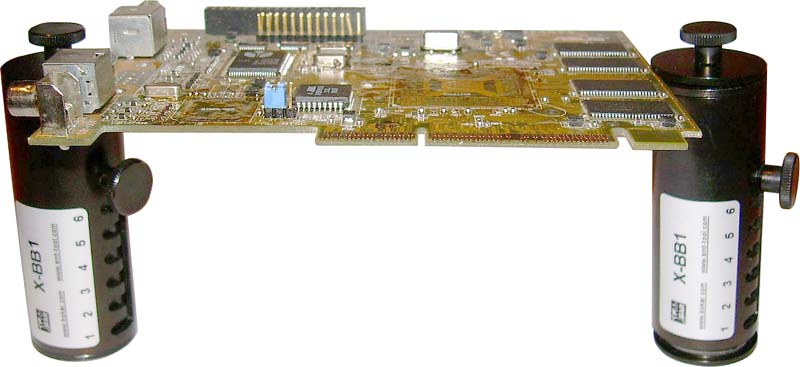

X-BB1s
X-BB1s

X-BB1s
Basic Board Holder Set (Includes 2 XBB1 supports)

Features:

  • Heavy Base for Stability
  • Supports boards firmly
  • Six adjustable heights
  • Accommodates all board sizes
  • Spring Assisted up-down motion for operator convenience
  • Magnetic Base
  • Min height of the board above the table: 3.6" (93mm)
  • Max height above the table 5.2" (133mm)
  • ESD Safe

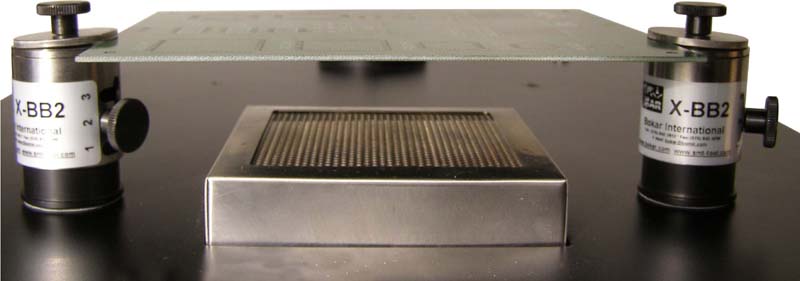

X-BB2s
X-BB2s

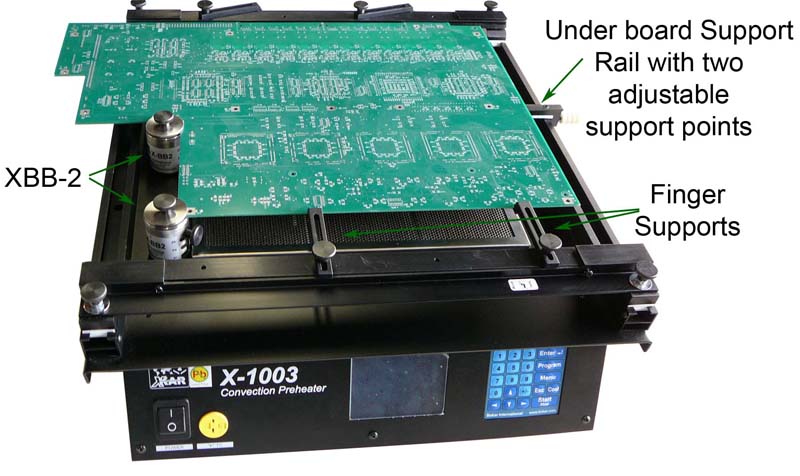

X-1003-06 with XBK Base and XBB-2 Magnetic Board Supports to secure Large Boards

X-BB2s
Basic Board Holder Set (Includes 2 XBB2 supports)

Features:

  • Heavy Base for Stability
  • Supports boards firmly
  • Three adjustable heights
  • Accommodates all board sizes
  • Spring Assisted up-down motion for operator convenience
  • Magnetic Base
  • Min height of the board above the table: 1.5" (38mm)
  • Max height above the table 2.1" (56mm)
  • ESD Safe

  |  Print page



Order Now Part Number Description Price
USD
Open Frame Board Holders
XU-5 Open Frame Board Holder with X-Y micrometer positioning of PCB for fine adjustment.
<...more info
Qty1 +
Price$1,999.00
XU-4 Flip Rack - High quality board holder
<...more info
Qty1 - 910 - 2930 +
Price$429.90$399.90$379.90
XU-4L Flip Rack – for large boards
<...more info
Qty1 +
Price$489.90
XU-1S Board Holder with small irregular board support kit
<...more info
Qty1 +
Price$429.90
XU-Mini Irregular Shape PCB Holder (eg. Cellular Phone)
<...more info
Qty1 +
Price$229.00
XCBH-1 Board Holder for Cellular Phone Boards
<...more info
Qty1 +
Price$269.90
XU-1 Discontinued. Replaced by a better one XU-1S Board Holder, 260 mm x open (12 inches x open end)
<...more info
Qty1 +
Price$369.00
XU-2 Board Holder, 320 mm x open (14 inches x open end)
<...more info
Qty1 +
Price$439.00
XU-3 Board Holder, 540 mm x open (21.2 inches x open end)
<...more info
Qty1 +
Price$499.00
X-BB1 Basic Board Holder, Single Support
<...more info
Qty1 +
Price$89.90
X-BB1s Basic Board Holder Set (Includes 2 XBB1 supports)
<...more info
Qty1 +
Price$169.90
X-BB2 Basic Board Holder, Single Point Support. Multipple units can be used to support the board. Made of stainless steel with spring release of the top plate.
<...more info
Qty1 +
Price$91.90
X-BB2s Basic Board Holder Set (Includes 2 XBB2 supports). Set of two is sufficient to hold smaller boards. For larger boards, please get the two sets.
<...more info
Qty1 +
Price$179.90
XKB Base Steel plate lined with ESD Rubber accommodating XK Top tool holders and allowing to use magnetic board supports XBB-2
Qty1 +
Price$389.90
XU-7 Quick Change Board Fixture for rework of multiple boards with positioning holes
<...more info
Qty1 +
Price$429.90
XU-6 PCB Holder especially designed for this pre-heater to well support large boards
<...more info
Qty1 +
Price$429.90
